Shape Optimization of Automotive Components

Shape optimization of ic engine componentsCAESES® is a comprehensive software solution for exploring and optimizing complex automotive components, such as internal combustion engine components or external aerodynamics. Together with your design expertise and your CFD package, CAESES® can greatly boost the performance while drastically saving time and cost due to a more efficient design approach.

CAESES® bridges the gap between traditional CAD and simulation. It provides intelligent geometry models for robust variation of the shape, and CFD automation to conduct design explorations and optimization.

The focus of CAESES® is the CFD-ready and variable CAD. It is typically used as-is with an intuitive graphical user interface. However, it also can be fully scripted so that it seamlessly fits into your existing design process.


Who Uses CAESES?

Leading players in the automotive sector use CAESES® for the optimization of internal and external flows, e.g. VW, Daimler, Toyota, BMC, Mazda and Aisin AW.


Intake and Exhaust Ports

CAESES® gives you a variety of specialized techniques to automatically vary the geometry of intake or exhaust ports. Several leading automotive companies use CAESES® for the design and optimization of these engine components, typically in combination with simulation packages such as CONVERGE or STAR-CCM+ etc. Read this short blog post about intake port design for more information.

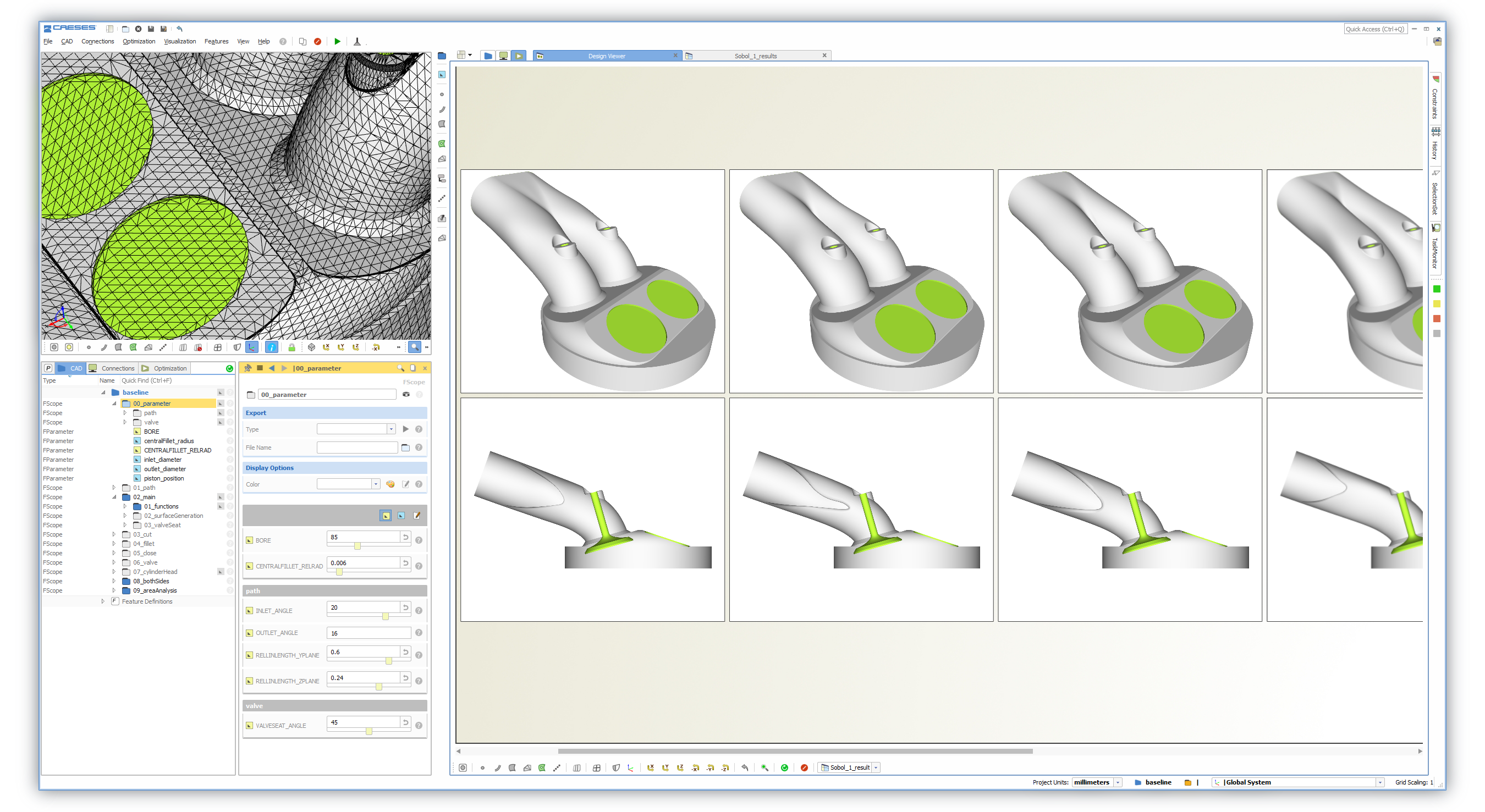

Change of intake port inlet angle

Change of intake port inlet angle


Piston Bowl Design

Comparison of design candidates

Comparison of design candidates during a piston bowl optimization

Create your parametric piston bowl contour and if required generate the 3D shape. Connect tools such as CONVERGE or any other simulation tool and readily start the exploration. For all these applications engineers want to analyze and assess a larger set of design variants. Once your CAESES® is ready, the variant generation and analysis is done automatically – with a single click. Browsing through the results including pictures and 3D flow data gives you fast insights and a better understanding of the product behavior. Everything in a single graphical user interface!

Check out this interesting blog post about piston bowl design which comes with a video. There is also a VW case study. There is also an example for piston bowl design and optimization with CONVERGE.

Automated variation of a 2D piston bowl contour

Automated variation of a 2D piston bowl contour while keeping the compression ratio constant


There is an online piston bowl demo model where you can change the shape parameters. The compression ratio gets automatically adjusted, and you can download an example geometry.


Ducts and Manifolds

You can find all sorts of complex-shaped components in engines that are often heavily optimized in terms of their flow characteristics. CAESES® helps you to drastically speed up these design tasks, by fully automating the generation of new design candidates.

Automatically create and analyze design variants of manifolds

Automatically create and analyze design variants of manifolds


Electric Powertrain

CAESES® provides a comprehensive tool set that assists you in finding the optimal shape and configuration of electric powertrain components. Simply fully automate the variant generation and develop highly competitive products for the electric era in the automotive sector.

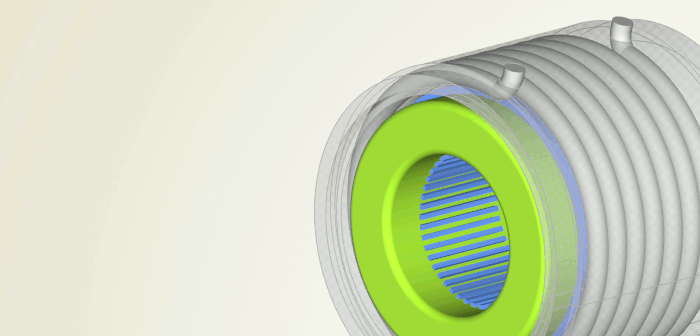

Design and optimize electric powertrain components

Automate the variant creation of electric powertrain components, to find optimal designs faster



Are you designing automotive turbochargers? With CAESES® you receive robust and variable volute models where you can build-in all your ideas, and that can be perfectly hooked into automated processes. At the same time, turbocharger impellers can be considered as well in your optimization run: CAESES® provides comprehensive and flexible blade design capabilities – specifically geared towards CFD-driven shape optimization.

See the turbomachinery section for more information.

Impeller design with CAESES


External Aerodynamics

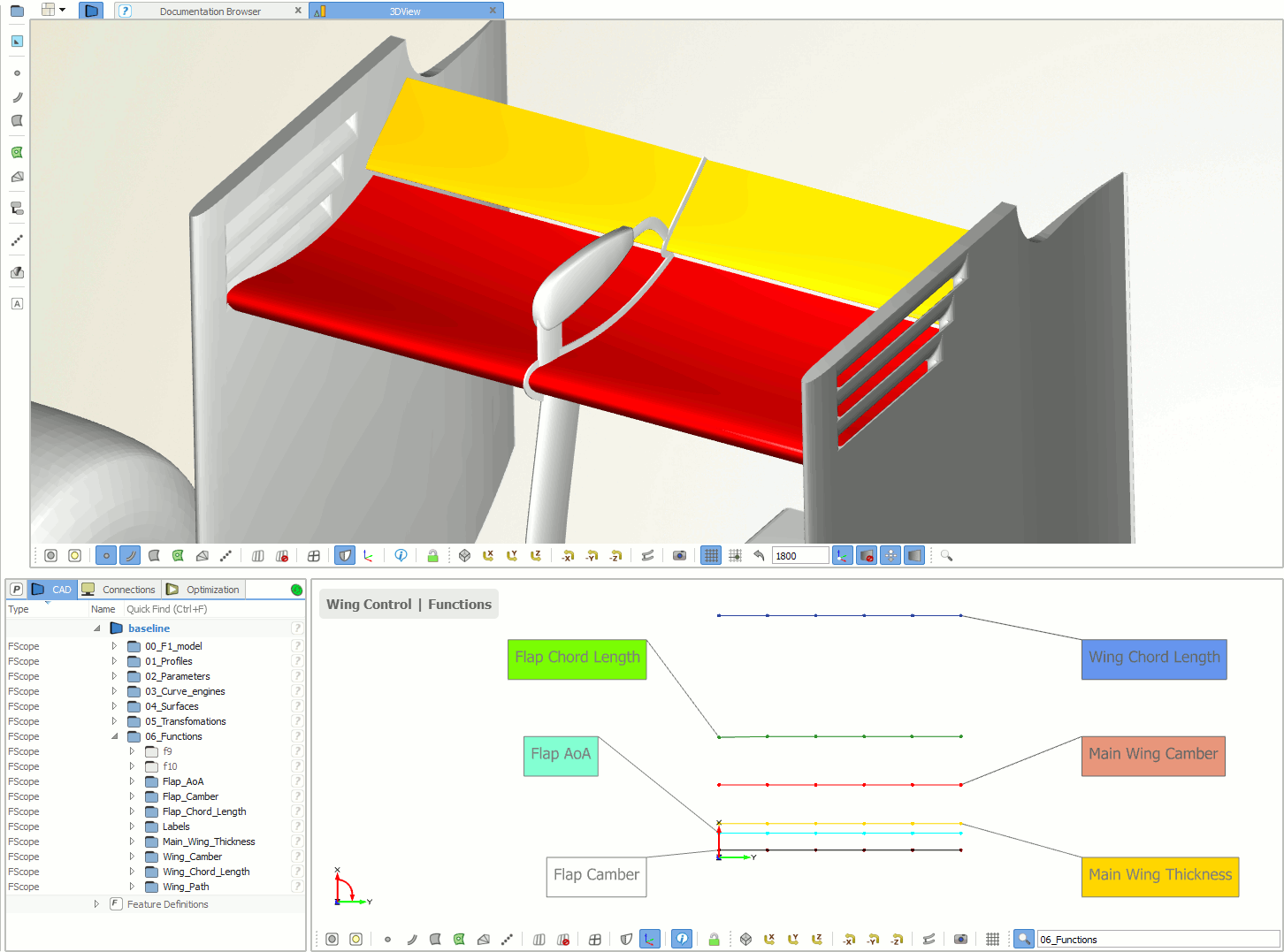

No matter what kind of external component you need to optimize: The techniques that you get with CAESES® will allow you to explore novel designs in a completely new way. Be creative and try out all your ideas – in shortest time! If you are dealing with automotive wing designs, you should really give it a try – you will be amazed by the effective and creative possibilities of CAESES®. Check out this blog post about the F1 rear wing model from the animation below.


There is an online live preview of the aero package from a race car. Change the front and rear wing, as well as the diffuser, and download these components as STL file.


Example Applications

  • In-cylinder: combustion chambers, piston bowls, ports
  • Intake/exhaust manifolds and ducts
  • Turbochargers: impellers, single/twin-scroll volutes
  • Fuel injectors and delivery systems
  • EGR systems
  • Exhaust after-treatment, catalytic converters, mufflers
  • Torque converters
  • External aerodynamics: wings, diffusers, mirrors, ducts, etc.
  • Climate control ducts and fans
  • Water pumps
  • Engine coolant jackets
  • Electric powertrain components
  • Battery cooling optimzation



Please do not hesitate to get in touch with us if you have questions in the context of your specific application. We look forward to discussing it together with you!




More Interesting Articles

In our case studies section several automotive examples are listed. The optimization of a catalyst converter is described in this article. A fuel injector variation is shown here. There is also a post about gear pump design and optimization. An automotive water pump design is described in the blog post “Water Pump Design: Geometry for a Shrouded Impeller“. The design of a turbo inlet duct is given in this article.

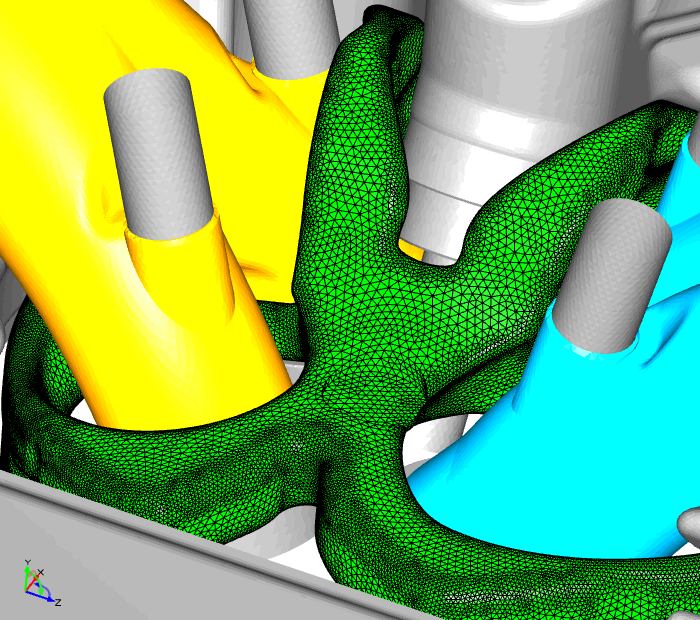

Coolant jacket study and optimization

Coolant Jacket: Shape Study and Optimization
