CAESES® is a flexible CAD platform for fast and comprehensive design studies with simulation tools. Integrated capabilities for CFD automation and shape optimization make it an all-in-one design tool for simulation engineers.



CAESES vs. Traditional CAD Tools

CAESES® stands for “CAE System Empowering Simulation” and its ultimate goal to design optimal flow-exposed products.  It’s literally made for simulation experts, but also a great choice for CAD engineers – especially if they work closely with the simulation department.

CAESES® focuses on automation – that’s the main difference when you compare it to traditional CAD tools. The geometry generation can be fully automated (to create new design candidates) and is 100% robust. This is essential for running design studies with simulation tools, e.g. on HPC clusters. At the same time, you can build design constraints into your CAESES® model, such as cross-section areas, minimum distances to keep, hard points, etc.

  • Simulation-ready: CAESES® geometries are closed, clean and can be meshed without any pre-processing
  • Robust during variation: No broken or infeasible designs during an automated geometry generation process
  • Fixed Identifiers: Patches and surfaces keep their identifiers (names, colors) in automated meshing processes
  • Parameter reduction: Fewer design variables, leading to tremendous computational time savings

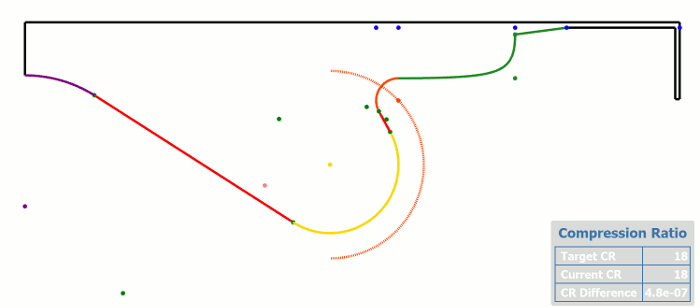

Robust, efficient variable geometry for simulation studies

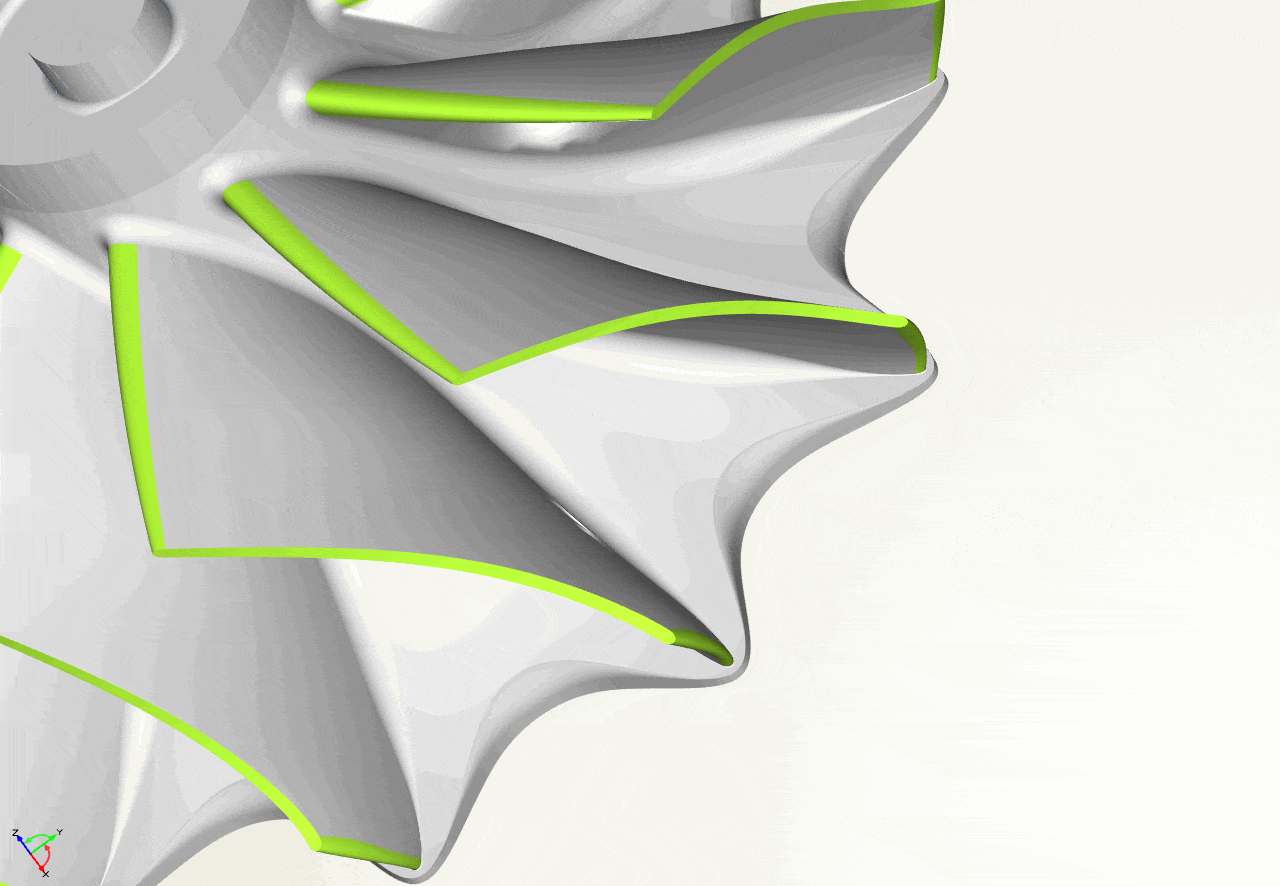

Robust and efficient geometry models for automated simulation-driven studies



Explore and Find Optimal Designs Much Faster

CAESES® also contains capabilities for automation of simulation tools to couple flow and structural analysis, and integrated strategies for parameter studies and advanced optimization. Together with the variable CAESES® geometry, this allows you to efficiently investigate large sets of new design candidates with your simulation package of choice!

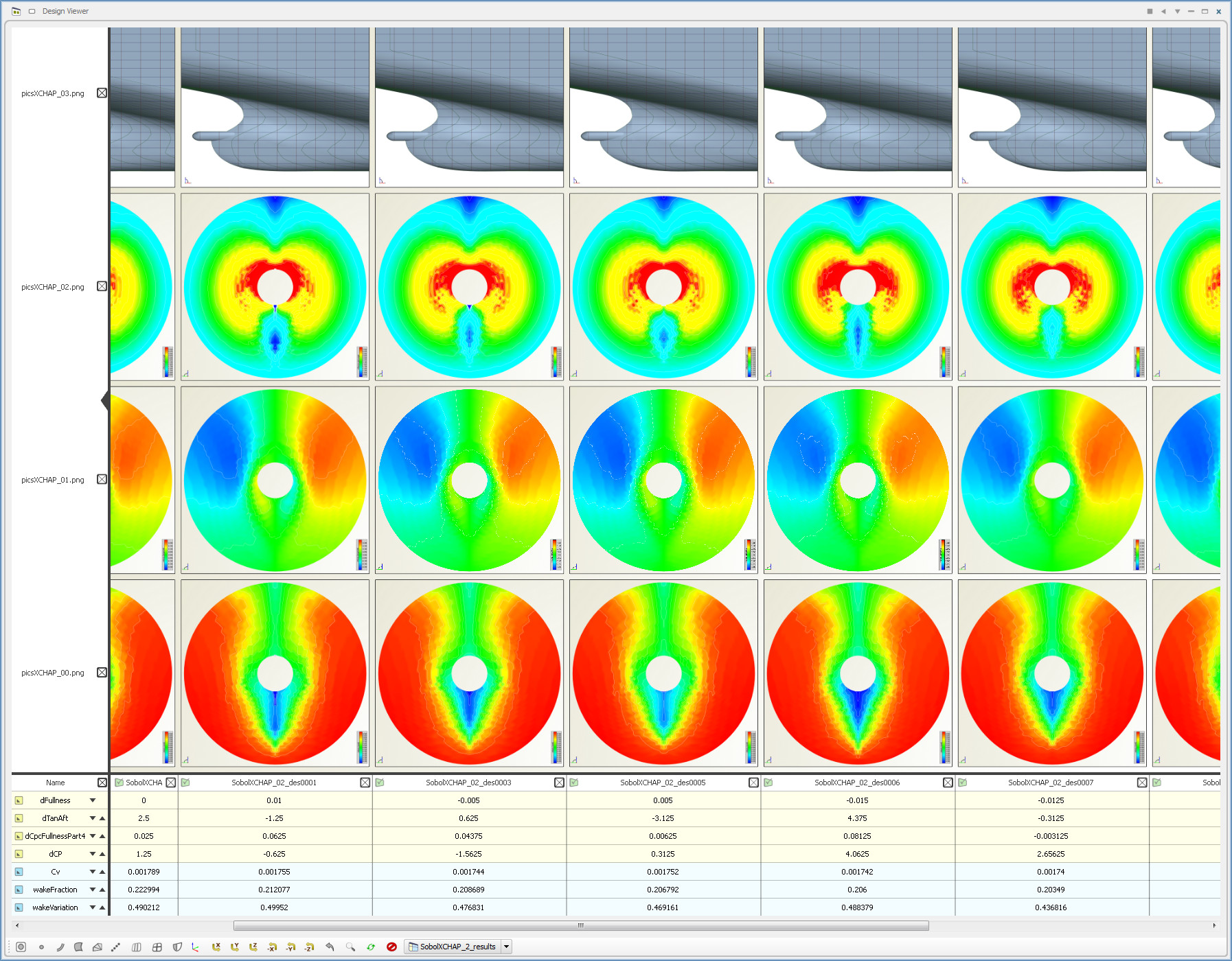

Explore hundreds or even thousands of design candidates in an automated process

Explore hundreds or even thousands of design candidates in an automated process

CAESES® itself contains no CFD or other simulation methods, instead it seamlessly integrates your existing tools to create a closed loop.



Typical Applications

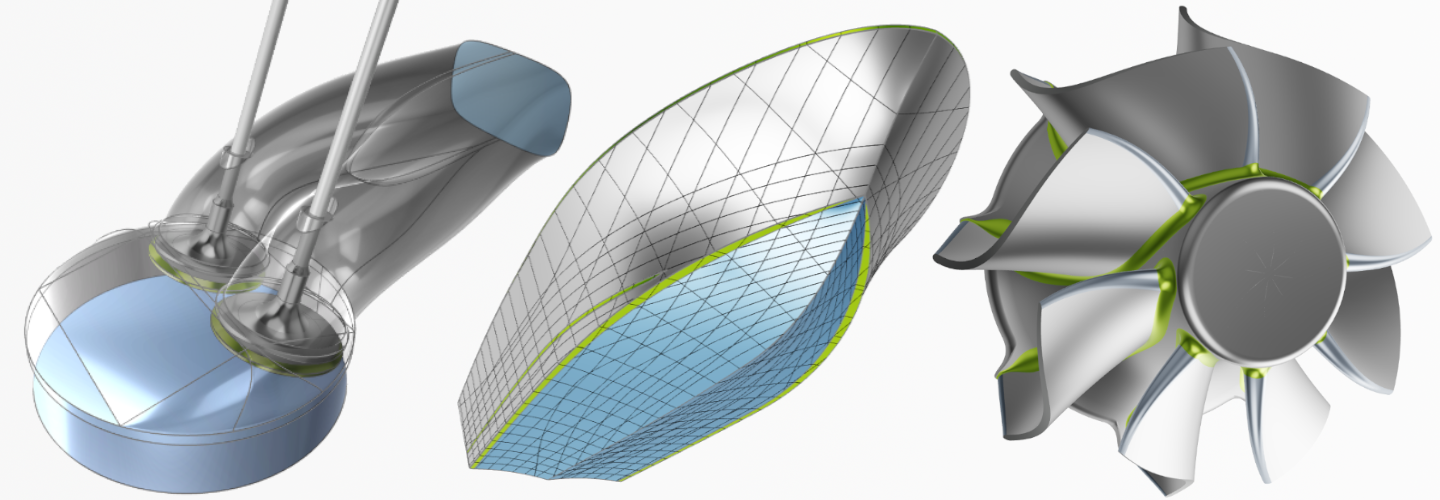

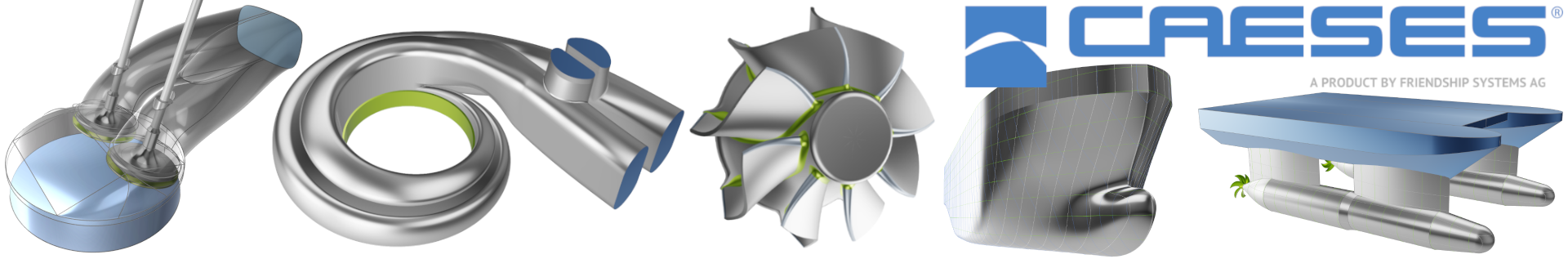

CAESES®  is used in various industries, typical areas of interest include ship hulls, turbomachines, ducts and manifolds, engine components, aerodynamic bodies, amongst others. CAESES® is suited for both internal and external flow applications.



Your Advantage: Available for Linux

Having CAE tools that can be automated on HPC clusters is crucial nowadays! That’s the reason why we also support Linux platforms and a batch mode (non-GUI version), to let you exploit all your hardware resources. Of course, we also support Windows systems. Read more.



SEND ME A FREE QUOTE




caeses_geometry_modeling_cad_for_cfdGeometry Modeling

Create smarter parametric geometry for simulation with fewer parameters and with more flow-related control! CAESES® gives you specialized CAD for CFD that is geared towards generation of design variants.

READ MORE ABOUT GEOMETRY MODELING  …





caeses_impeller_fluiddomain_simulation_readySimulation-Ready

All parametric models in CAESES® are ready for automated meshing and CFD analysis. The geometry is clean, closed and colored in terms of their boundary information. Save time with one-time pre-processing that gets automatically applied for all new design candidates.

READ MORE ABOUT SIMULATION-READY GEOMETRY …





ship_hull_CFD_automationCFD Automation

CAESES® allows you to integrate and automate your CFD or other simulation software. With this, you can analyze a new design candidate with a single click. Any external tool that can be triggered by means of a batch mode can be immediately integrated and coupled to your geometry model.

READ MORE ABOUT CFD AUTOMATION …





best_designs_pareto_frontier_imgDesign Exploration and Shape Optimization

Once your geometry is ready and your CFD package is integrated, you can directly run design explorations and shape optimization. CAESES® provides a set of methods for the automated creation of design candidates so that no external optimization software is required.

READ MORE ABOUT OPTIMIZATION …





Shape Deformation

In addition to the parametric modeling capabilities of CAESES®, you can make use of morphing and shape deformation techniques. These methods are suited for fast shape optimization of existing geometries such as given STL data. This greatly complements the CAD functionality of CAESES® and provides you another tool for the optimal design of your product.

READ MORE ABOUT SHAPE DEFORMATION …





adjoint_cfd_optimization_rearwingOptimization with Adjoint CFD

The use of adjoint CFD methods has been getting more popular in recent years. As an answer to this, CAESES® allows you to couple the results of adjoint CFD with the geometry parameters of your model. This brings down the number of considered parameters to run faster shape optimizations.

READ MORE ABOUT ADJOINT CFD OPTIMIZATION …





Get more control and write your own functionsPowerful Scripting

CAESES® is a completely command-based platform where the commands are triggered in the background of the graphical user interface. However, all commands can be directly accessed by yourself to fully script, automate and customize the use of CAESES®.

READ MORE ABOUT SCRIPTING …





Easy-to-use custom template modelsCustom Templates

No time to learn a new software? The variable and robust CAESES® models can be wrapped into an easy-to-use interface for non-experts of CAESES®. Use simple sliders and buttons to control your model, export geometry or even run full optimizations.

READ MORE ABOUT TEMPLATES …





Online Showroom [BETA]

We have prepared a showroom with web apps where CAESES® runs in the background. All examples given in our showroom are created with the desktop application of CAESES®. This work is still in a beta phase with rather basic models, but you can already try it out.

GO TO SHOWROOM …





SEND ME A FREE QUOTE




A Short Comparison to Other Tools

questionguysmall

CAESES® in 30 Seconds

One of the founders from FRIENDHIP SYSTEMS gives you simple answers to the question what CAESES® does: Read the short interview …

CAD Modeling

When it comes to the CAD modeling capabilities, CAESES® has its focus primarily on the design and variation of complex free-form surfaces. We target CFD or other simulation engineers that need a lightweight and flexible tool for the pre-CAD stage, to explore novel designs, and to be able to finally hand over an optimized/improved geometry to the CAD department.

Our users build models that typically have fewer parameters than traditional CAD models, and they skip details that are not relevant for simulation. Instead, they build-in parameters that follow a flow-centric thinking, to have an intuitive and efficient control that is related to the flow. Furthermore, our users set up models such that the patch names and edges are fixed during a variation, in order to be able to fully automate the meshing procedure. As a result, creating and analyzing a new design candidate of a geometry is perfectly robust. The robust variation of parametric geometry models is really the core competence of CAESES®.

Optimization

CAESES® gives you geometry modeling in the first stage! This is a key difference to other general-purpose optimization software. Besides that, CAESES® also offers a set of strategies for advanced parameter studies and shape optimization that can be readily used. Our focus are CAE engineers that want to automatically vary a CAESES® geometry model. Furthermore, CAESES® has a batch mode possibility and hence can be controlled by other optimization software. So if you already have an optimization software, you could simply stick to it and use CAESES® only for the robust and efficient generation of geometry variants. This is one typical situation in our user base. We have various optimization partners where we make sure that our solutions work together as easy as possible for the user.

Simulation Packages

CAESES® does not contain any CFD or simulation capabilities. Instead it seamlessly integrates existing simulation tools that can be triggered in batch mode. Finally, CAESES® is completely independent of the meshing and simulation software that you use in your company. We are not restricted to a specific vendor, which might be of interest when you consider to jump on another simulation software or if you want to use in-house tools.




Licensing Information

We provide different licenses for companies and for academic purposes. Ranging from a standard edition up to a power edition: There are several editions to choose from, depending on your application, design task and budget. We are also very open to discuss special packages for small companies, start-ups and freelancers. Read more ….

Free Trial License for Commercial Use

We provide free trial licenses for 2 weeks. If you need more time, just let us know – no problem! Simply download and install CAESES® from our download area. During the registration process, choose “Trial License” and follow the instructions. That’s it. Are you interested in discussing your specific requirements? Just click below and enter your information – we’ll get back to you asap!

Free Student / PhD Student License

We also offer a personalized, non-commercial free academic edition for students and PhD students! The license is intended to be used on a personal PC/notebook. This pro edition comes with CAD, CFD integration and the full optimization environment. Download and install CAESES® from our download area. During the registration process, choose “Free Student License” and follow the instructions. We need your certificate of enrollment displaying a date and student period (PDF or image), to verify your enrollment. Once we have received this, we issue the license. As soon as your certificate expires, just send us a copy of the new one using this email address (include your license ID in the subject line), and we will extend it again. By granting you this free license, we kindly ask you to send us your thesis (PDF) once you have finished your student/PhD work with CAESES®. For help and support with CAESES®, please visit the forum.



Interested?

We’d be happy to talk to you! Please simply get in touch with us if you are interested in using CAESES® for your specific engineering application.
