The underwater resistance and radiated noise characteristics of submarines are especially important performance metrics and should be optimized as much as possible. The main goal of this study is to enhance hydro-acoustics and hydrodynamics performance of a submarine hull with bow form optimization using high-fidelity CFD simulations and an automated workflow.

Introduction

The origins of submarine self-produced noise falls under three general categories. Propeller noise is the noise which originates from the submarine’s screws when the speed is great enough to produce cavitation. Hydrodynamic noise includes all the noise sources which result from the motion of the submarine through the water. Machinery noise is the noise resulting from the propulsion, maneuvering and auxiliary machinery onboard the submarine. Hydrodynamic noise is the dominant source and is the main subject of this study. The submarine model is based on a standard benchmark geometry called the DARPA SUBOFF.

This study describes the development of an iterative design process to reduce hydrodynamic noise levels using a high-fidelity CFD solver STAR-CCM+ which solves the unsteady RANS for the flow behavior and the Ffowcs-William and Hawkings (FW-H) Equations for hydro-acoustics. The parametric hull geometry has been created in CAESES where hull variations can be created and utilized within the automated workflow. The bow form has been parameterized using the following equation which creates an axisymmetric curve:

r_{x_f} = \frac{D}{2} [ 1-(\frac{x_f}{L_F})^{n_f}]^{\frac{1}{n_f}}

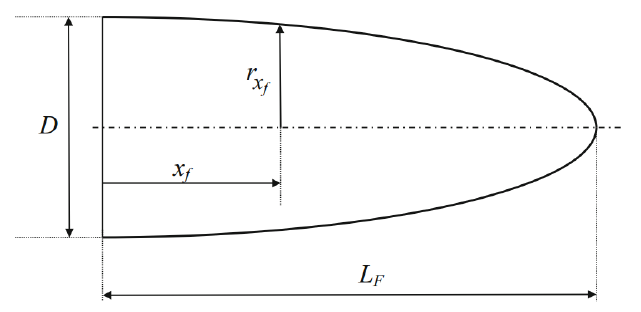

Parameterized bow form

Parameterized axisymmetrical bow form

The multi-objective optimization aims to reduce the total resistance of the hull as well as the acoustic noise generated one meter behind the propeller hub. The optimization method chosen had an initial DoE step using the Sobol algorithm from which the results were used as an input to build a surrogate model using the well-known open source Python library LinearNDInterpolator method. Finally, the NSGA-II algorithm was used to solve for the objective functions. CAESES includes a library of algorithms such as Sobol and NSGA-II. However, the LinearNDInterpolator method was implemented through python scripts and coupled to CAESES via its convenient feature customization capability.

Numerical Model

Resistance and hydro-acoustics were solved with STAR-CCM+ using steady and unsteady solvers respectively. The SST k-\omega was used to model turbulence. The time dependent pressure data is used as the input for the FW-H equation to predict far-field acoustics. A hexahedral mesh was created around the submarine model with trimmed cells at the hull surfaces which were locally refined to have y+ values of ~100 for all velocities studied, as shown below.

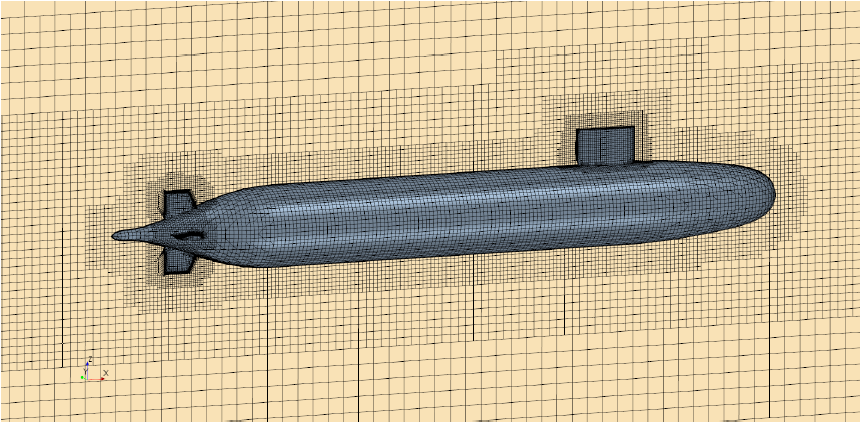

Unstructured hexahedral mesh around the submarine

Unstructured hexahedral mesh around the submarine

Optimization Workflow

The first step was to run a Design-of-experiments (DoE) using the Sobol algorithm available in CAESES. For the resistance analysis 400 variants were studied, and for the hydro-acoustics analysis another 40 variants were computed. This data was used as the input to build the surrogate model in the next step.

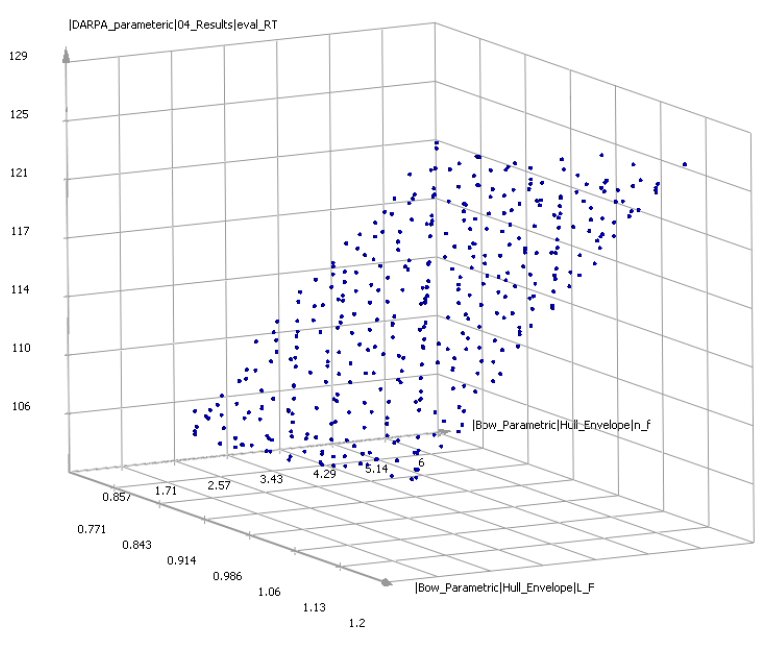

DoE Results

DoE results using Sobol

The surrogate model was created using the LinearNDInterpolator function to create the response surface.

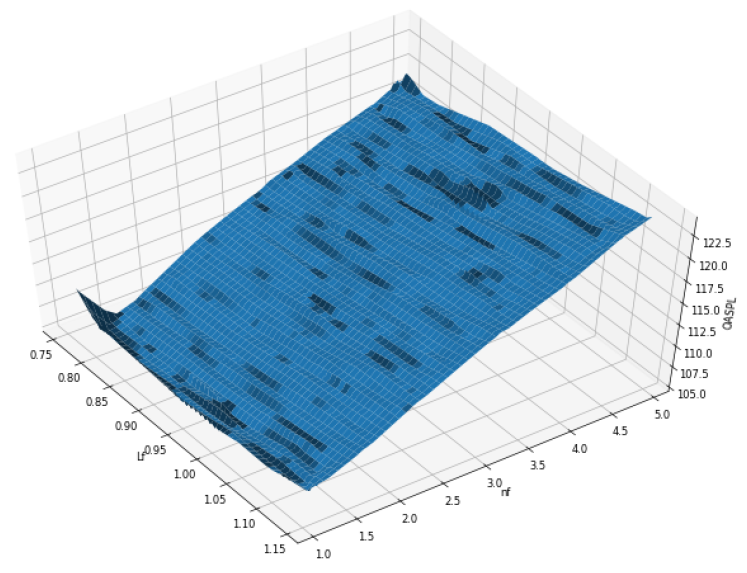

Response surface

Response surface

Finally, after creating the response surface for resistance and hydro-acoustics, the optimization was performed using the NSGA-II algorithm with 10 generations that have populations sizes of 50 variants.

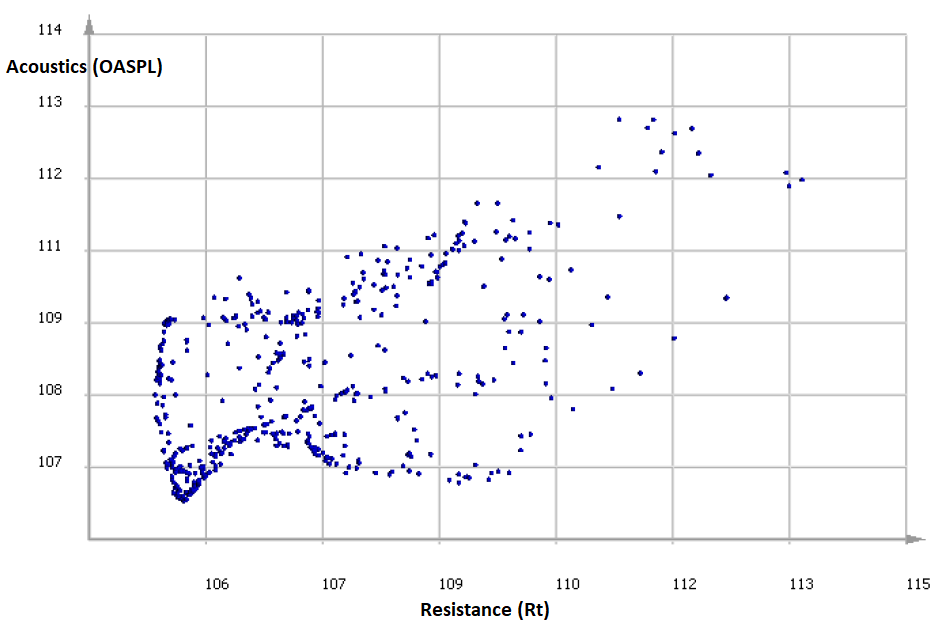

NSGA-II optimization and Pareto front of competing objectives

NSGA-II optimization and Pareto front of competing objectives



Results and Conclusions

The 21 best designs were further investigated as a trade off between optimal resistance and hydro-acoustics. The following figure shows a comparison of the bow geometry and two of the best designs which represent best resistance and best acoustics performance, respectively. Resistance performance was improved by as much as 5.6% whereas acoustic performance could be improved by up to 3.5%.

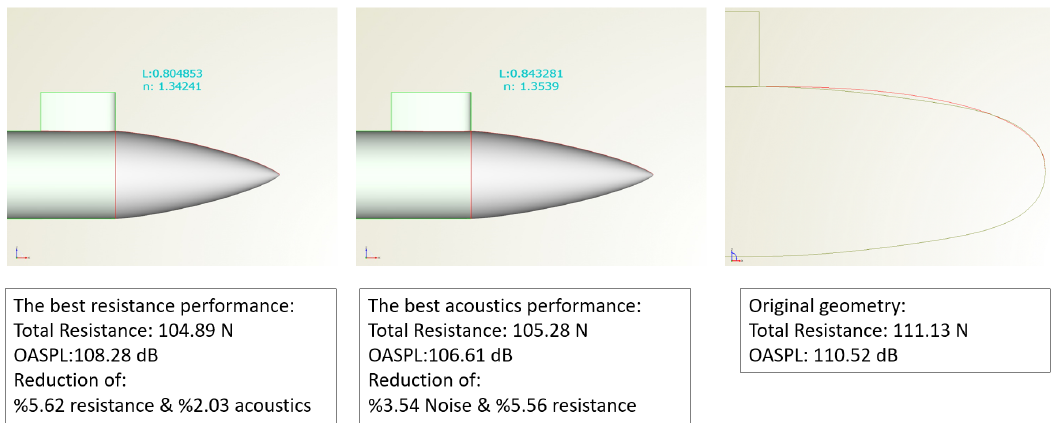

Optimal results for resistance and acoustics

Optimal results for resistance and acoustics

About the Author

Thanks to Buğra Uğur Yazici and his colleagues at Istanbul Technical University in Istanbul, Turkey for submitting this interesting article about submarine hydrodynamics and hydro-acoustics performance optimization using the CAESES integration and automation platform together with STAR-CCM+ for CFD simulations.

Buğra Uğur Yazıcı graduated from the Turkish Naval Academy with a major in Naval Architecture and Marine Engineering. After finishing his Master Degree in the same field, he is now doing his PhD at Istanbul Technical University. He is simultaneously working for STM A.Ş. in Turkey in the Mid-Life Upgrade Project of Preveze-Class Submarines of the Turkish Navy. His research field is hydroacoustic and hydrodynamic performance optimization of the submarine exostructure. He is developing algorithms for implementing acoustic analogies to different solvers, including high order spectral methods and optimizing turbulence coefficients in order to solve acoustic equations efficiently.



Bugra Ugur Yazici

Buğra Uğur Yazıcı

“For my acoustics and resistance optimization project, CAESES was the core of the process and saved untold time by avoiding the need to make hundreds of analyses by hand. CAESES is the most modern artist of the commercial software art.
I really like how the CAESES family helps each other when there is a need for troubleshooting or questions arise. CAESES is extremely well documented, allows the easy writing of scripts on the fly, and a very active forum with users from all around the world. Tutorials and videos are created for dummies which I do really care about when I am evaluating a software.”

– Buğra Uğur Yazıcı, PhD Student at Istanbul Technical University



More Information

If you like to read more about this topic, you can download the full paper here.

For further questions do not hesitate to contact Buğra Uğur Yazıcı directly (bugur.yazici@gmail.com).
