Compressor Blade Optimization for an Aeroengine

Aeroengine companies are working to meet challenging requirements for emission and fuel consumption reduction. This effort includes the further refinement of the component design processes including aerodynamic compressor design which is characterized by a time-consuming blade geometry finding process. Many design iterations between different design tools for geometry generation and numerical flow analysis are required in order to achieve the best blade geometries which fulfill the global design intent and meet the global performance requirements.

axialcompressor_rrd_logo

For the optimization of an axial compressor blade, in a collaboration with Rolls Royce Deutschland (RRD), the design challenges of that project were in particular

  • Realize required flow turning and blade loading with minimum losses
  • Extend off-design operating range.



Optimization Approaches

Two different design and optimization approaches where chosen for comparison purposes: RRD based its 3D model on a 2D section optimization where finally the best 2D sections were used for 3D blade surface generation. FRIENDSHIP SYSTEMS had chosen to design a parametric 3D blade model where its radial distributions ensured that, when looking at the manufacturing process, only feasible designs got created during the automated variation process.

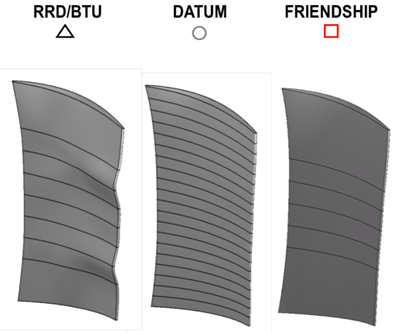

Blade ComparisonKey Benefits

The results of this study showed that both approaches led to very similar results, while the parametric 3D blade model in combination with a different optimization strategy helped to achieve these results within a very fast time frame, see below. The following outcomes were finally achieved by the 3D blade model:

  • Reduction of stage losses (0.25%)
  • Wider operating range (1.5° flow angle)
  • Faster design time (1-5 days vs. several weeks)
  • More insight and confidence



More Information

There is a published paper available which describes this study in detail. Simply get in touch with us if you would like to receive this paper as pdf.

Compressor blades for aerodynamic shape optimization can be modeled with CAESES® which additionally comes with the possibility to connect and run integrated studies with CFD. Note that any type of blade (axial, radial, mixed) can be created and fully customized with CAESES®. The geometry models include the periodic CFD domain along with fixed & colored patches that are ready for automated meshing procedures. Do not hesitate to drop us a line if you have any questions regarding blade design, or see the turbomachinery section for more details. We can e.g. support you in setting up parametric models for shape optimization in just a few days – uncomplicated and fast.
