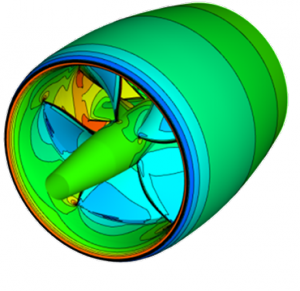

VOITH Linear Jet CFD simulation

Design and Optimization of the VOITH Linear Jet

The VOITH Linear Jet (VLJ) combines the best properties of propellers with the best properties of waterjets. For this product, one of the most important design challenges is to maintain a high efficiency across a wide operating range while delaying the onset of cavitation.

In particular, the VLJ provides the following key benefits:

  • Sustained high efficiency across the vessel’s speed range
  • Reduced cavitation, results in low noise and vibrations
  • Ideal propulsor for ships with mixed operating profile between low and high speeds like yachts, workboats, and patrol vessels

VOITH Turbo makes intensive use of CAESES to design the full VLJ system which includes the tunnel and hull geometries as well as the rotor/stator geometries.

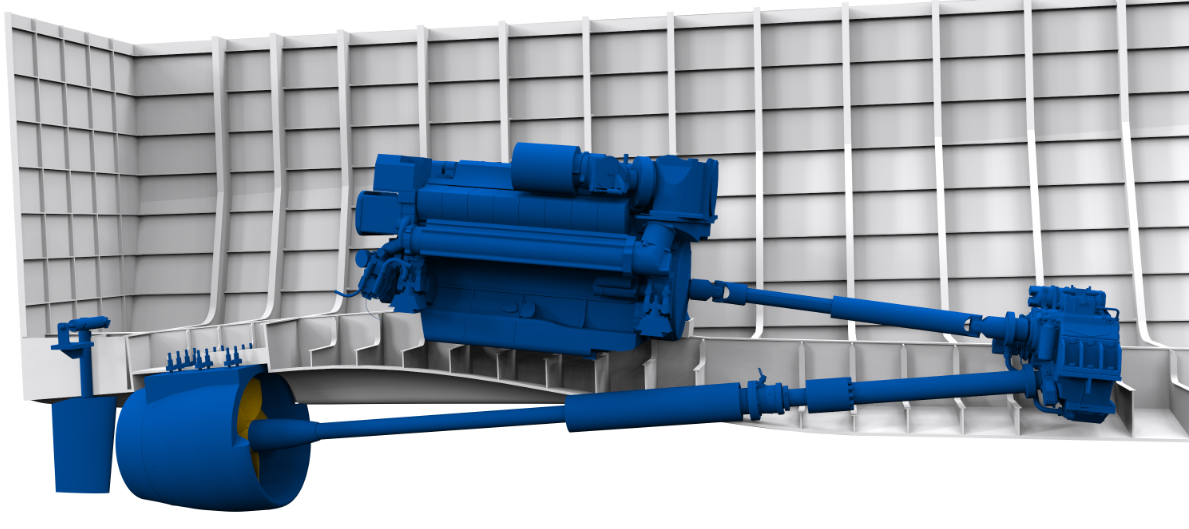

VOITH Linear Jet propulsion arrangement

VOITH Linear Jet propulsion arrangement



Integration of the VOITH Linear Jet

The optimal integration of the VLJ into the ship hull is realized by a separate CAESES geometry model, see the following picture. In order to find the best shape that meets the customer specifications, a set of geometric parameters (tunnel length, integration depth etc) is created and used in a simulation-driven, highly automated workflow. These parameters are changed automatically while – at the same time – the rotor, stator and nozzle geometries are also varied. This makes sure that the hull shape and the VLJ are a perfect match.

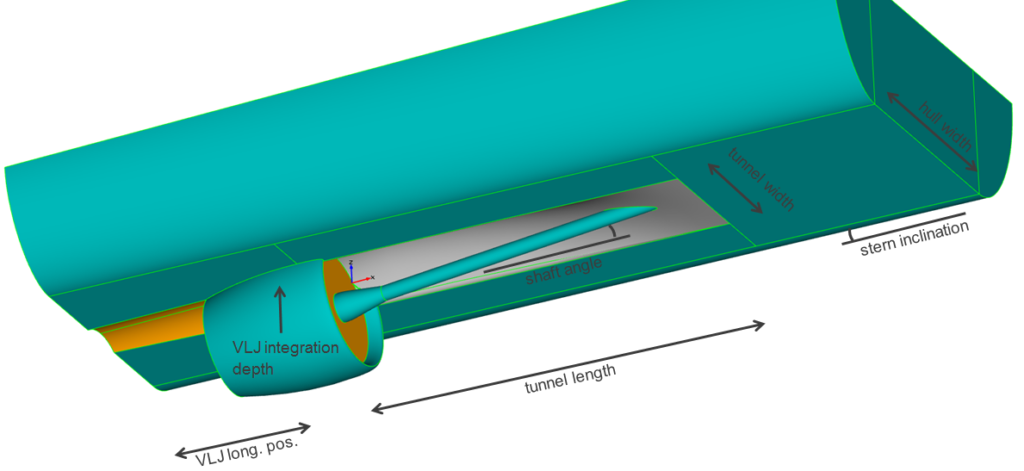

CAESES geometry model of the VOITH Linear Jet tunnel system

CAESES geometric parameters to integrate the VLJ into the ship hull



Rotor and Stator Geometry of the VOITH Linear Jet

The blade parameters are defined on cylindrical sections. Typical parameters are radial distributions for chord, thickness, camber, skew, pitch and rake. For the block-structured meshing process, additional parametric support geometry is created.

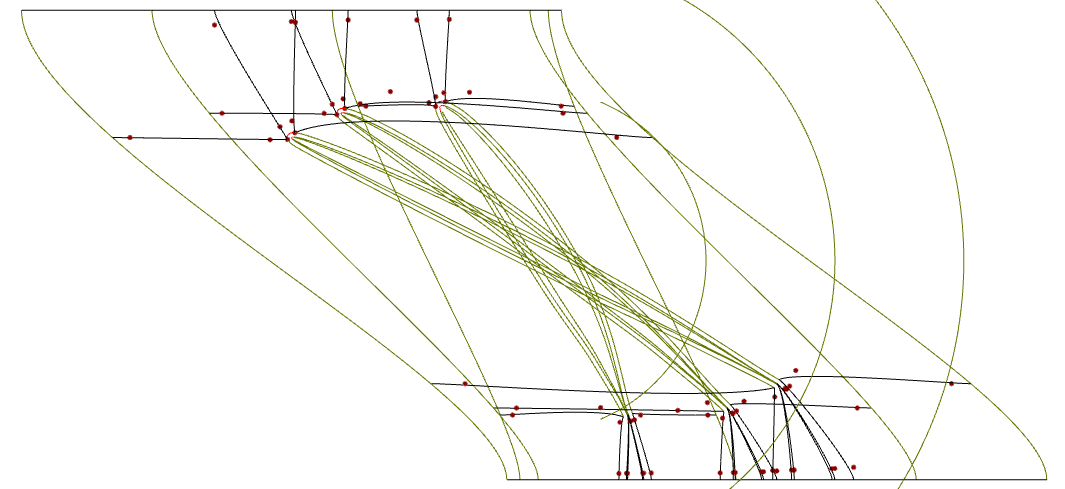

Parametric support geometry for automated block-structured meshing of the blades

Parametric support geometry for automated block-structured meshing of the blades

Based on this geometry, the meshing process can be fully automated in order to be used in design studies and shape optimizations. The surface mesh itself has a high density in regions of interest, such as leading edge, trailing edge and the gap between nozzle and blade tip.

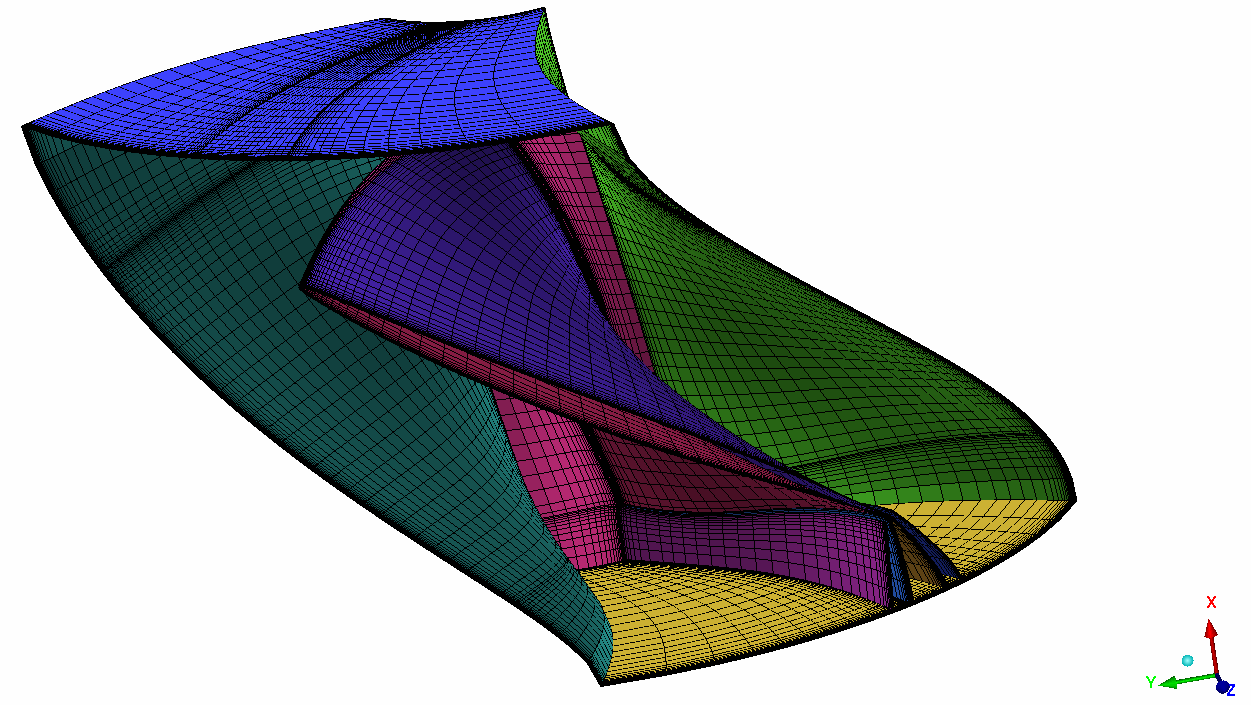

Blade mesh for the rotor and stator (structured hexahedron approach)

Blade mesh for the rotor and stator (structured hexahedron approach)

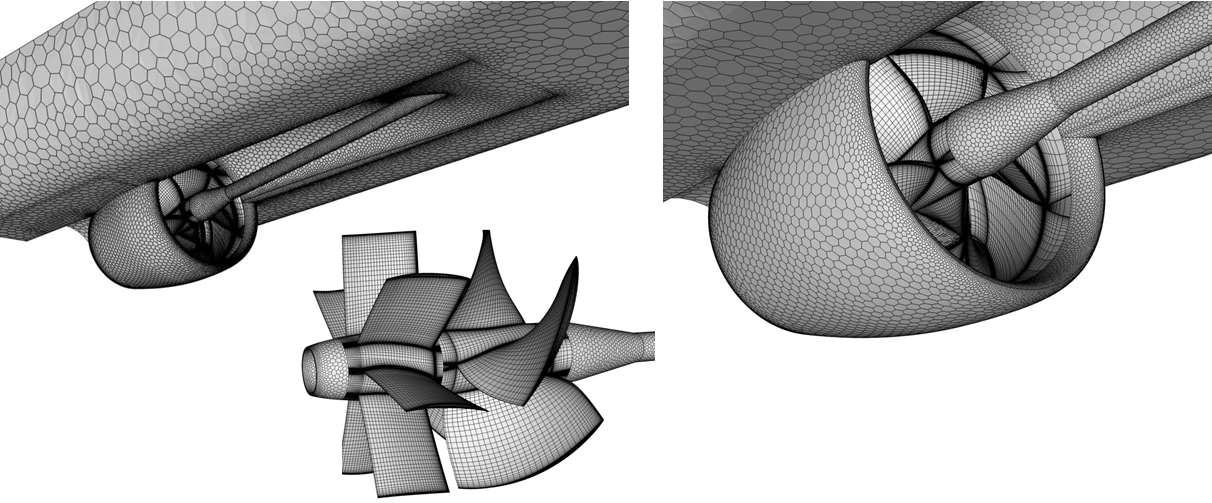

Fully automated grid generation of the entire VOITH Linear Jet system

Fully automated grid generation of the entire VOITH Linear Jet system

The parameters of the blades, the nozzle, the hull and the tunnel can be varied automatically by using the in-built CAESES strategies for design studies and shape optimizations. The simulations run on the internal HPC systems at VOITH Turbo.

VOITH Linear Jet: Systematic investigation of integration depth and shaft inclination

VOITH Linear Jet: Typical systematic investigation of integration depth and shaft inclination in CAESES

The huge amount of computational power plus the automated design process with variable & robust geometry allows VOITH Turbo to investigate a large set of different VLJ systems, to finally pick the best design candidate for the customer.

“CAESES is a core component in the design department, and nowadays it drives all new product developments to ensure the very best performance.”

— David Bendl, Development Engineer at VOITH Turbo

With kind permission of VOITH Turbo



Download Tech Brief

A short summary of the linear jet case study can be found in this tech brief (PDF).
