Propeller Design at Caterpillar Propulsion

In 2014, Caterpillar Propulsion introduced CAESES® for the design of propeller blades. When we started on a project basis, the overall idea was to implement CAESES® as some sort of workbench that integrates and controls all the participating meshing and simulation software. At the same time, CAESES® should also deliver the 3D parametric blade design which allows the Caterpillar engineers to remodel their existing blade and profile definitions, but also gives high flexibility for trying out completely new designs.

The first task was to transfer an existing profile definition from an Excel sheet to a feature definition of CAESES®. We supported Caterpillar Propulsion in this specific task, while other tasks were completely done by the Caterpillar engineers, such as setting up the blade model as well as generating an individual and dynamic 2D drawing.

Since the new 2D profile definition is easy to understand and accessible by Caterpillar, they can quickly modify it and add blade parameters whenever they want to explore new designs. This gives them the possibility to check design parameters “on the fly”, and it finally results in a faster blade design process. As a side effect of having the parameter curves directly in CAESES®, the accuracy of their geometric blade models could also be increased.

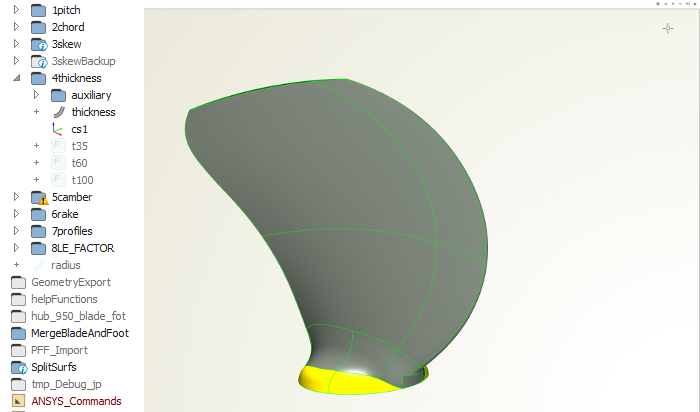

The challenging hub fillet of the 3D blade was also modeled in CAESES®, and it gets automatically regenerated as soon as the blade shape is changed.

caterpillar_stressFor analyzing the flow and the stresses of a new design candidate, the engineers linked the following tools to CAESES®:

  • OpenFOAM (CFD)
  • ANSYS (FEM)
  • PROCAL (BEM)

With this integral design concept for the workflow, a new 3D blade is now created in CAESES® by changing the parameter curves, and all important blade characteristics are calculated with a single click, using the coupling capabilities of CAESES®.



Key Benefits

  • Speed up of the administrative part of blade design by about 15%
  • Possibility to check new design parameters “on the fly”
  • Increase of the accuracy of blade models
  • Single-click calculation of physical blade characteristics (flow and cavitation, stress)

“We now have the possibility to create a new blade design and at the same time monitor quantities such as propeller efficiency, stress due to hydrodynamic loads and cavitation properties with a single click! The use of CAESES® simply saves us a significant amount of time for each blade design.”

— Olof Klerebrant Klasson, Engineer Hydrodynamics, Caterpillar Propulsion
