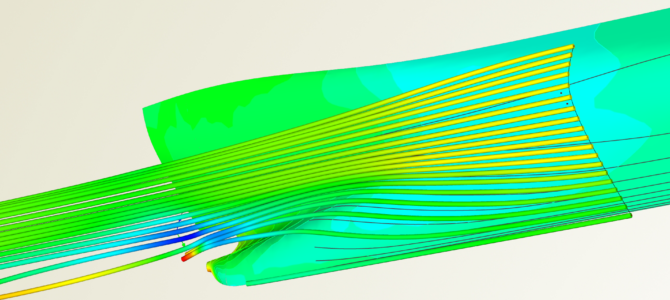

CAESES® comes with a set of CFD post-processing features, which are mainly used to quickly assess and compare the flow behavior of the generated design candidates. The visualization of 3D streamlines is a standard procedure of CFD engineers to get a better understanding of what’s really happening in the investigated flow region. The following video demonstrates how to visualize streamlines on the basis of imported SHIPFLOW results (*.cgns).
