Video: Generate Stream­lines from SHIPFLOW CFD Results

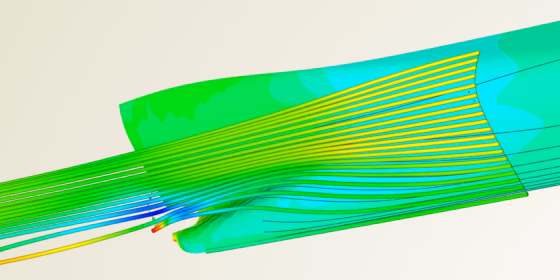

CAESES® comes with a set of CFD post-pro­cess­ing features, which are mainly used to quickly assess and compare the flow behavior of the gen­er­ated design can­di­dates. The visu­al­iza­tion of 3D stream­lines is a standard pro­ce­dure of CFD engi­neers to get a better under­stand­ing of what’s really hap­pen­ing in the inves­ti­gated flow region. The fol­low­ing video demon­strates how to visu­al­ize stream­lines on the basis of imported SHIPFLOW results (*.cgns).

More Infor­ma­tion
