CAESES Web App for Aero­dy­namic Glider Plane Design

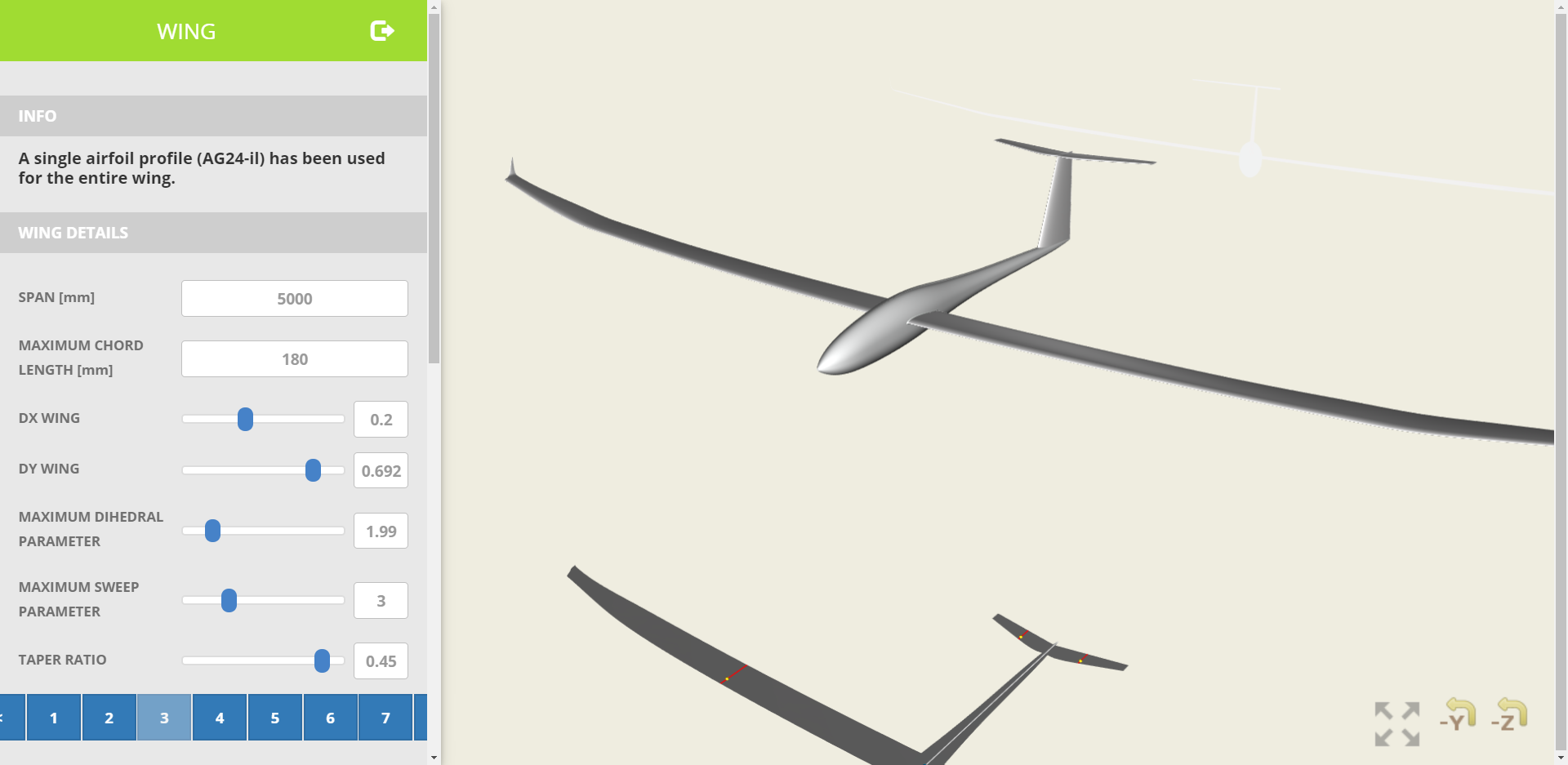

We have launched our new web appli­ca­tion for aero­dy­namic glider plane design. The new glider plane design web app is now avail­able for you on gliderplanedesign.com. It is based on CAESES running in the back­ground of the web app and allows design­ers to create their own glider plane design within minutes by changing typical geometry parameters.

For each design that is created, a short pre­lim­i­nary analysis is done directly within the CAESES App GUI. Once your design is finished, the design can­di­date can be down­loaded as 3D STL file.

For a full 3D flow analysis (RANS com­pu­ta­tion) simply upload your glider plane design to the Air­Shaper platform to get an afford­able per­for­mance report.

Let us know how you like it!

Design your glider here!

Video: 4 Steps to Create Your Own Glider Plane Design within Minutes

In 4 simple steps you can design your own glider plane:

1. An initial design is created based on your input
2. Finetune all parts of the geometry, e.g., fuselage, wing shape, vertical/​horizontal tail
3. Check the balance and per­for­mance cal­cu­la­tions and download the 3D STL model
4. Run an afford­able full 3D Air­Shaper sim­u­la­tion to get a full aero­dy­namic per­for­mance report about your glider plane design

More Infor­ma­tion

For more infor­ma­tion visit https://www.gliderplanedesign.com/ .

We are con­stantly improv­ing our web app. Feel free to drop us a line and give us some feedback :)

About Air­Shaper

Air­Shaper is an online aero­dy­nam­ics platform: it allows design­ers & engi­neers to upload 3D models, set the wind speed and ori­en­ta­tion and have the airflow sim­u­lated. This process is com­pletely auto­mated, allowing users without exper­tise in aero­dy­nam­ics to obtain reliable results & improve their design.
