Auto­mated piston bowl design workflow with CAESES

As the internal com­bus­tion engine con­tin­ues to evolve, driven by tighter emission reg­u­la­tions and effi­ciency targets, engi­neers face increas­ing pressure to create cleaner, more effi­cient designs. A good piston bowl design is crucial for opti­miz­ing com­bus­tion in diesel and direct-injec­tion gasoline engines. It sig­nif­i­cantly affects fuel-air mixing, emis­sions, and overall engine performance.

Specif­i­cally, the piston bowl’s geometry directly influences:

• Com­bus­tion efficiency
• Soot and NOx emissions
• Fuel con­sump­tion
• Power output

Finding the ideal com­pro­mise between these require­ments is nec­es­sary to design a suitable piston bowl, which is no easy feat. Engi­neers can accom­plish this balance more quickly, pre­cisely, and flexibly with the help of CAESES – an intel­li­gent, auto­mated solution.

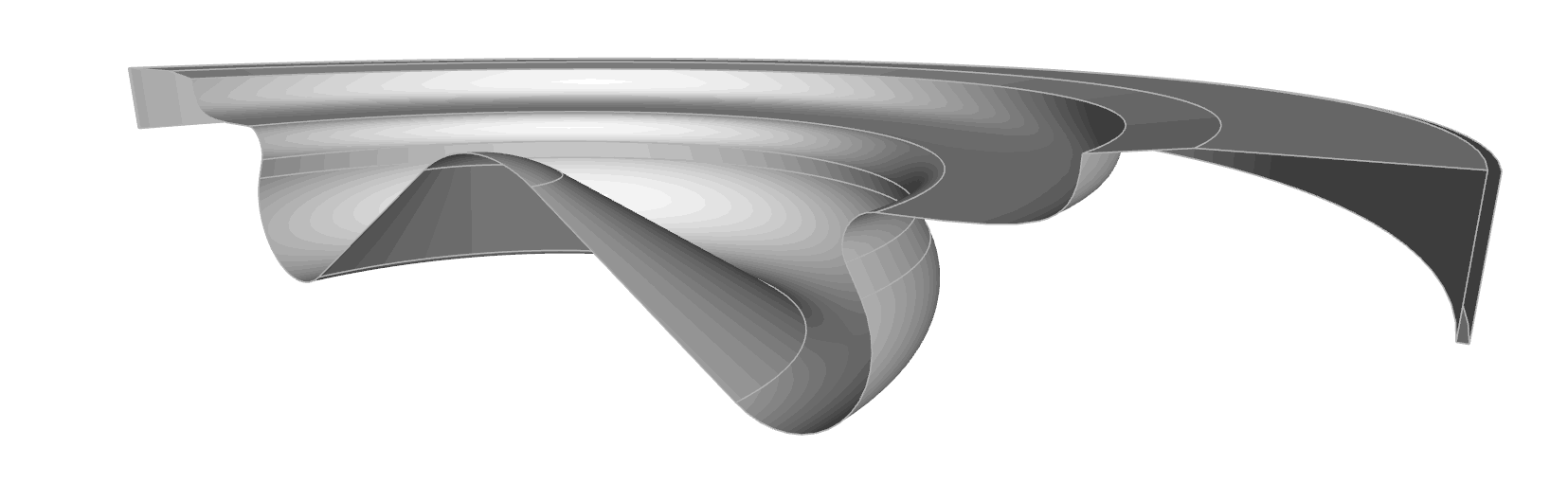

It can create fully para­met­ric piston bowl models with easily adjustable key design elements. Users can instantly create valid geometry variants ready for sim­u­la­tion by changing para­me­ters like bowl depth, lip profile, and re-entrant shape with a few clicks.

But CAESES is more than just a geometry tool; it makes it possible to automate full design studies and opti­miza­tions – includ­ing state-of-the art approached based on machine learning. In a smooth workflow, hundreds of piston bowl shapes can be gen­er­ated, eval­u­ated, and improved – saving time, lowering manual labor, and pro­duc­ing designs that strike the ideal balance between emis­sions and performance.

Why Piston Bowl Design is so Challenging

Bowl depth, lip height, re-entrant angles, and overall contour shape are just a few of the many vari­ables that deter­mine the piston bowl’s geometry. They have to be finely tuned to obtain a good and well-balanced design that:

• Promotes strong swirl and tumble motion to mix air and fuel effectively.
• Enhances homo­gene­ity of the air-fuel mixture for cleaner combustion.
• Supports fast, complete com­bus­tion with minimal ignition delay.
• Ensures cen­tral­ized com­bus­tion away from cylinder walls to reduce heat losses and emissions.
• Reduces NOx by con­trol­ling peak com­bus­tion temperatures.
• Limits soot for­ma­tion by pro­mot­ing better mixing and avoiding fuel-rich zones.
• Avoids direct impinge­ment of fuel spray on the piston bowl walls or cylinder liner.
• Ensures strate­gic impinge­ment if needed to improve mixing without causing wetting.
• Matches spray angle, nozzle type, and injec­tion pressure.
• Is designed to work with multiple injec­tion events (pilot, main, post).

On top of this com­plex­ity, engi­neers must work within strict design con­straints, for example:

• A fixed com­pres­sion ratio to keep the engine’s map valid and avoid recal­i­bra­tion, as well to ensure safe design without exces­sive pressure.
• Minimum wall thick­nesses, espe­cially in relation to other internal struc­tures like oil cooling gal­leries, to avoid struc­tural failure or cracking under thermal and mechan­i­cal stress.
• A good match with the injec­tion system to avoid unfa­vor­able impinge­ment of the fuel spray.

Choosing the best design becomes a mul­ti­fac­eted opti­miza­tion problem, which is further com­pli­cated by the require­ment to use com­pu­ta­tion­ally demand­ing com­bus­tion CFD sim­u­la­tions to assess each poten­tial shape.

How CAESES Sim­pli­fies Piston Bowl Design

On top of the inte­grated sim­u­la­tion- and data-driven design capa­bil­i­ties that CAESES provides by default, we have devel­oped a new auto­mated workflow that is now avail­able to users dealing with piston bowl design applications.

In summary — as demon­strated in the video above — this workflow supports the user in nav­i­gat­ing the fol­low­ing tasks:

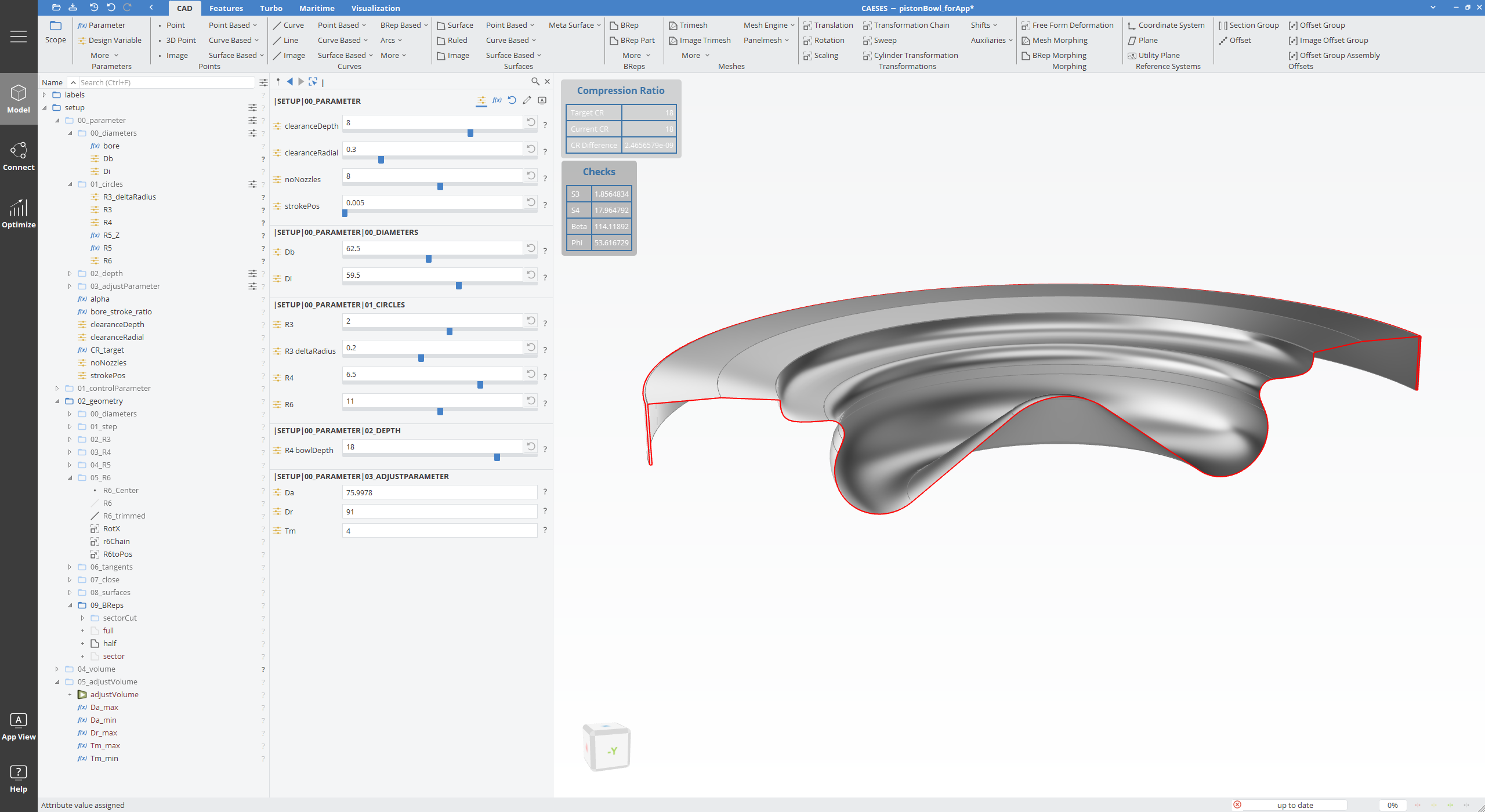

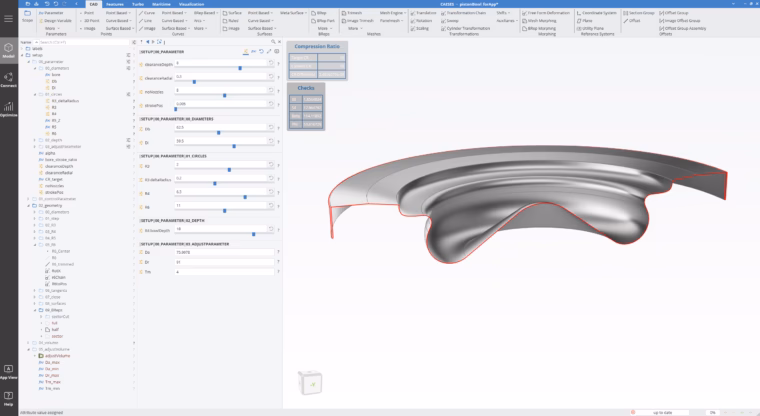

Rapid param­e­triza­tion of imported piston bowl geometry

Quickly param­e­trize an existing piston bowl geometry (from CAD or another source) rather than starting from scratch. By this process, the static geometry is trans­formed into a flexible, com­pletely con­trol­lable model with easily adjustable key para­me­ters such as the re-entrant angle, lip profile, and bowl depth.

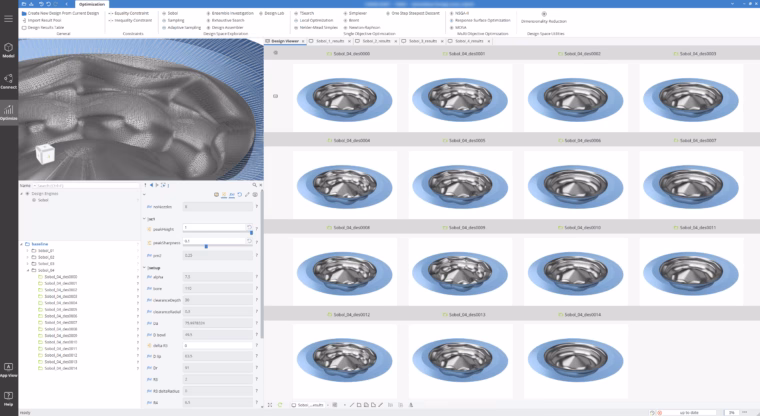

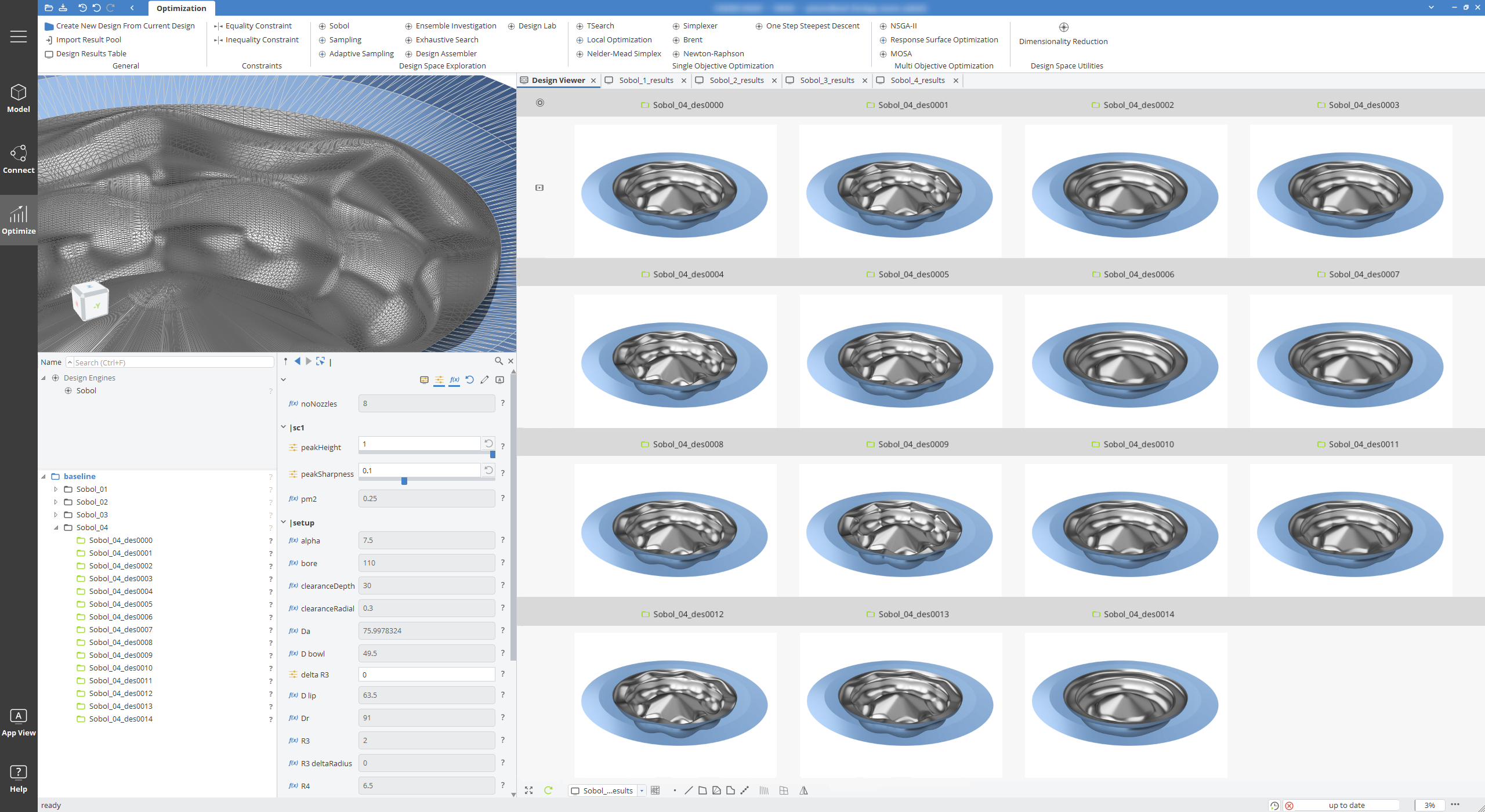

Auto­mated creation of design variants

Once para­me­ter­ized, the model can generate a large number of design variants auto­mat­i­cally. These variants can be used for:

• Design of Exper­i­ments (DOE) studies
• Single- or multi-objec­tive optimizations
• Sen­si­tiv­ity analyses

Impor­tantly, the workflow allows engi­neers to enforce critical con­straints – such as keeping the com­pres­sion ratio fixed – ensuring that every variant within the design process remains valid.

Seamless inte­gra­tion with CFD solvers

CAESES connects with leading CFD packages (e.g., CONVERGE, AVL FIRE, STAR-CCM+) to fully automate the loop:

1. Generate a geometry variant and export a ready-to-use com­pu­ta­tional domain.
2. Run the CFD simulation.
3. Evaluate key outputs (soot, NOx, effi­ciency, etc.).
4. Feed results back into the opti­miza­tion or machine-learning algorithm.

This enables true sim­u­la­tion-driven design explo­ration, where hundreds of designs can be analyzed sys­tem­at­i­cally, as well as the training of machine learning models for data-driven engineering

Tailored work­flows for dif­fer­ent piston bowl types

This workflow is not restricted to a single engine type or bowl shape. The para­met­ric model and auto­mated pro­ce­dure can be tailored to the par­tic­u­lar appli­ca­tion, regard­less of whether the piston bowl is toroidal, re-entrant, or of another design.

Proven Success: Diesel Piston Bowl Opti­miza­tion Case Study

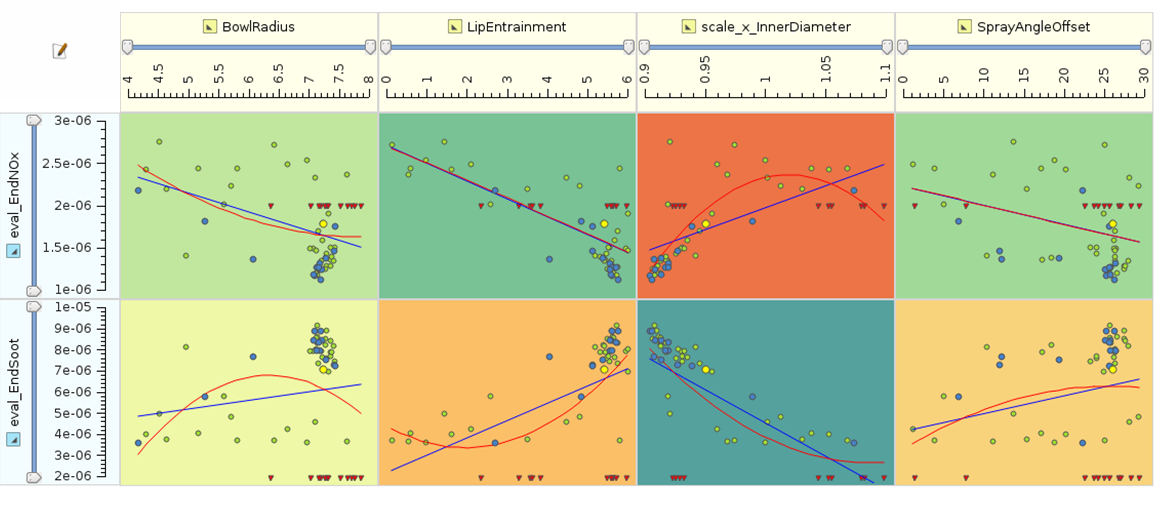

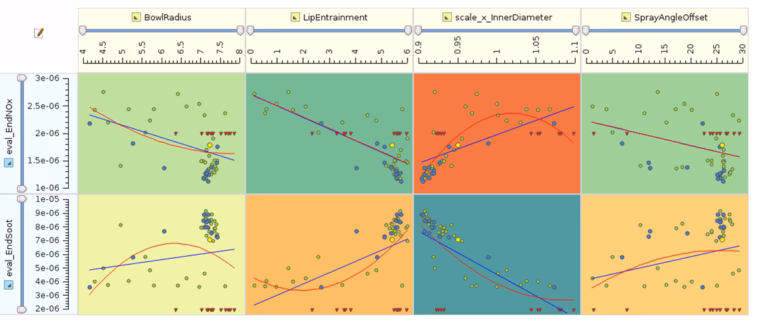

In a real-world project, CAESES was used to optimize the piston bowl of a diesel engine with the goal of improv­ing the con­cur­rent objec­tives of soot and NOx pro­duc­tion, while strictly keeping the com­pres­sion ratio constant.

Using CAESES, engi­neers set up an auto­mated process that gen­er­ated and eval­u­ated around 50 design variants. The result? A piston bowl geometry that met the strin­gent emission targets without com­pro­mis­ing other per­for­mance require­ments – all achieved in a fraction of the time that a manual process would require.

Beyond Piston Bowls: Custom Work­flows for Your Design Challenges

At CAESES, we under­stand that every engi­neer­ing problem is unique. That’s why we support our users in creating cus­tomized work­flows not just for piston bowls, but for a wide range of complex com­po­nents – from intake ports to tur­bocharger impellers and beyond.

Our mission is to help you:

• Speed up your design cycles
• Explore better designs through simulation
• Meet tough per­for­mance and emission targets

Get Started Today

If you’d like to learn more about how CAESES can help you design cleaner, more effi­cient engines – or if you want to discuss a cus­tomized solution for your appli­ca­tion – contact us today.
