Free Volute Design Software

compressor volute turbocharger tongue fillet engine exhaust gas pump

  • Please log in to reply
2 replies to this topic

#1 Jörg

Jörg

    Moderator

  • Moderators
  • 503 posts
  • LocationBerlin, Germany

Posted 17 February 2014 - 09:06 AM

Hi together,



With CAESES, we also focus on the design and optimization of volute geometries. There is a volute section on the CAESES website. Students and PhD students can get a free academic edition of the pro version - the product page gives more information about this.



Basically, the software allows you to create robust parametric volute designs for manual/automated design explorations and shape optimization with CFD. In most cases, the volutes in CAESES are tailor-made models, i.e. you can fully customize the geometry design:

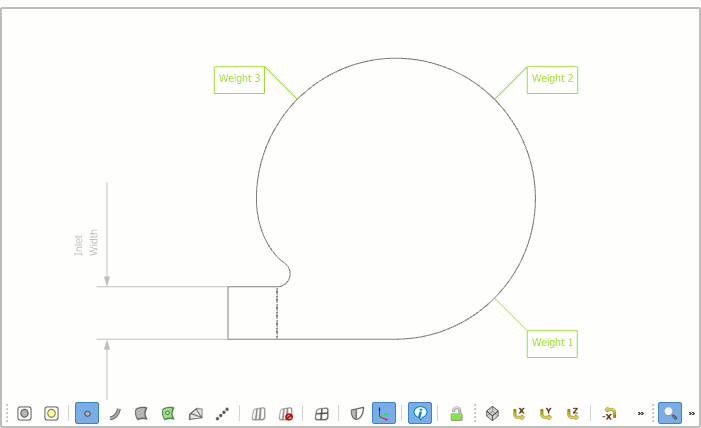

  • Arbitrary parametric cross-section definitions, e.g. based on your area (A) and center of area (=>R) specifications
  • Use of point data for creating a volute surface
  • User-defined A/R functions (bsplines, mathematical functions)

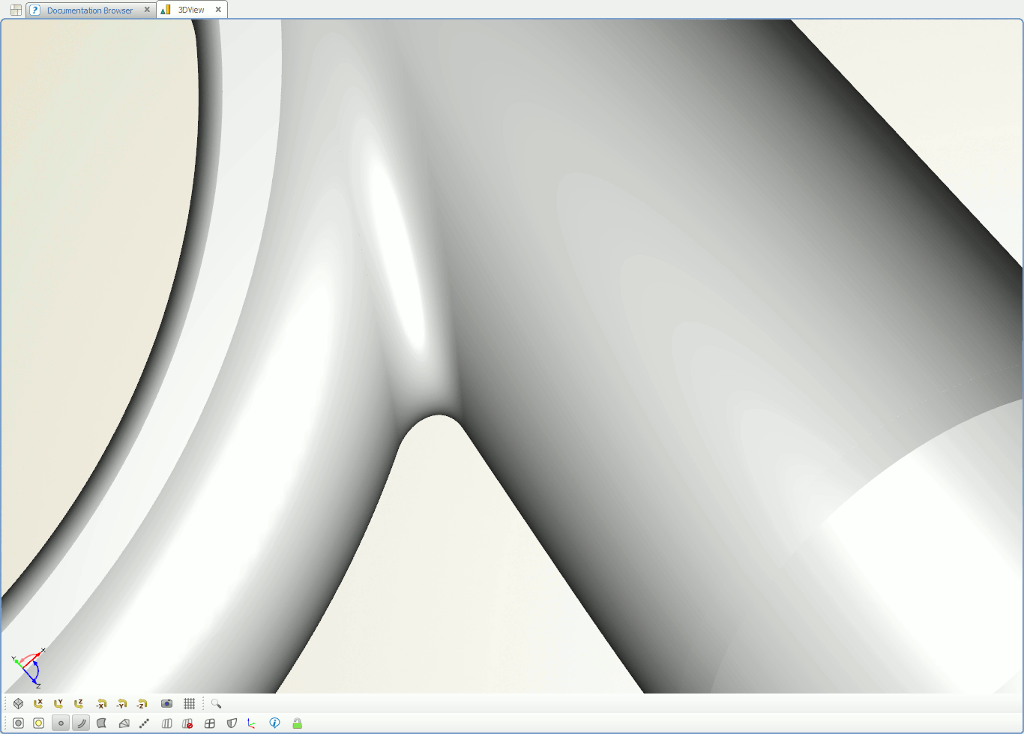

  • Individual tongue modeling with additional parameters for more detailed design studies and fine-tuning
  • Analysis and control of inlet/outlet area distributions.



Usually, our CAESES support team helps you in setting up customized models, either through the helpdesk or, for more complex models and a quick solution, by means of a customer project.

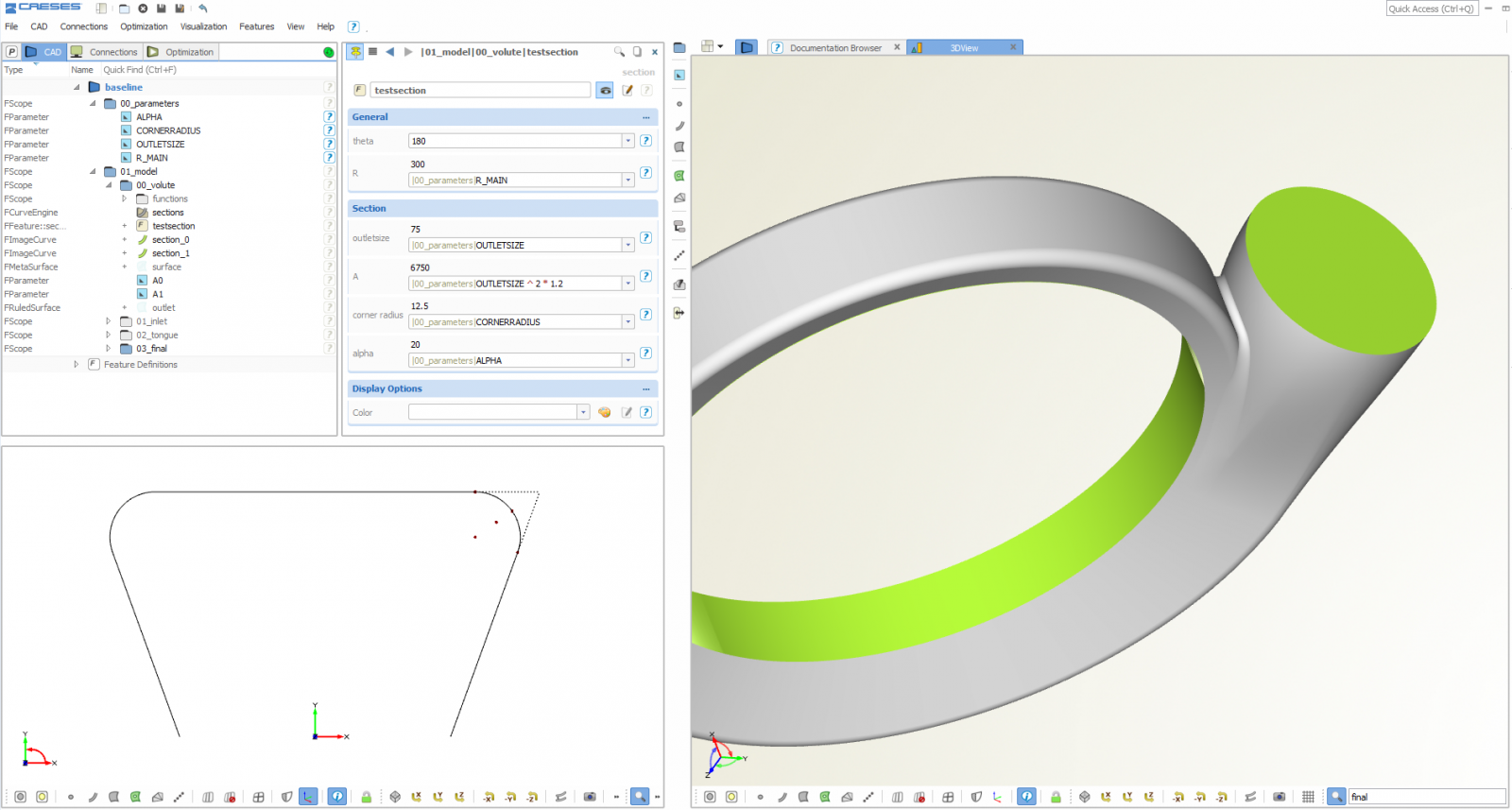

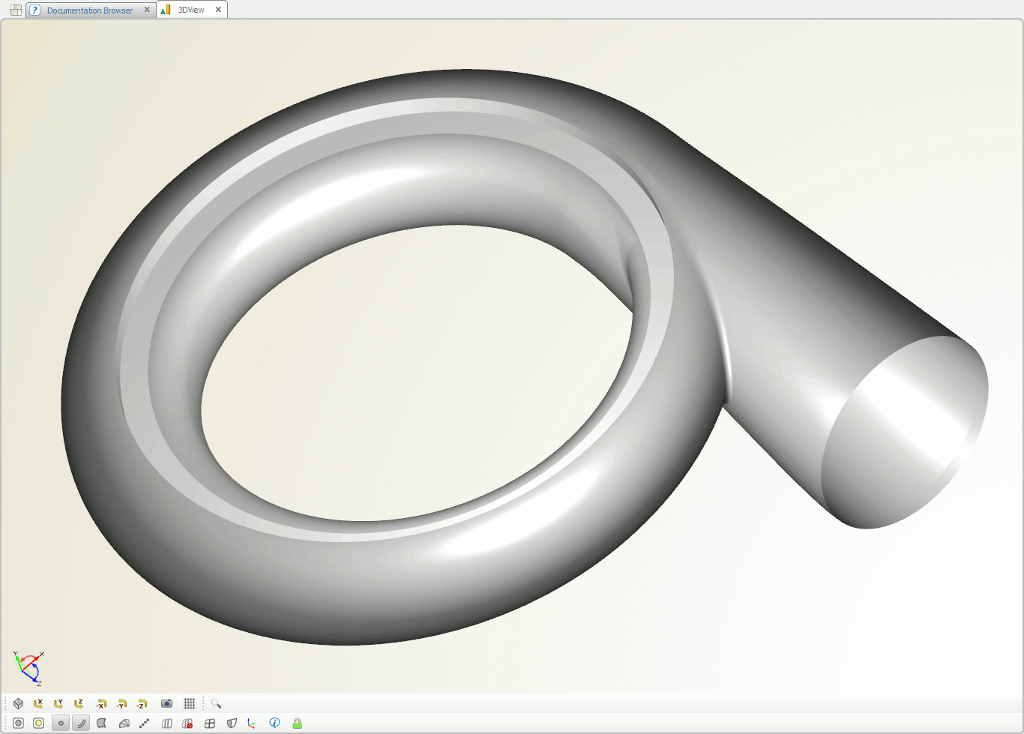

See the attachments for some pictures and animations (e.g. the A/R function gets varied as well as the tongue shape).



Cheers

Joerg



LAST UPDATE: FEBRUARY 2017

Attached Thumbnails

  • voluteA2R.gif
  • tongue.gif
  • volute_cross_section.gif
  • volute_design.png

  • 0

#2 Jörg

Jörg

    Moderator

  • Moderators
  • 503 posts
  • LocationBerlin, Germany

Posted 03 May 2016 - 02:37 PM

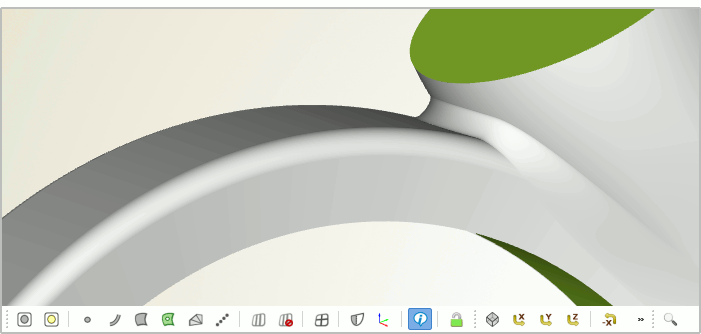

Here is another animation.

Attached Thumbnails

  • volutevariable.gif

  • 0

#3 Jörg

Jörg

    Moderator

  • Moderators
  • 503 posts
  • LocationBerlin, Germany

Posted 25 March 2019 - 11:34 AM

There is a more recent blog post "How to create a volute in 10 steps" which describes the modeling process by means of a few animations.
