Edge fillet between two given surfaces


  • Please log in to reply
6 replies to this topic

#1 Mr. Simone Bigalli

Mr. Simone Bigalli

    Member

  • Members
  • PipPip
  • 17 posts

Posted 06 February 2019 - 11:34 AM

Hi,

I have a question about the edge fillet operation inside the BReps functions.



Working with CAESES I noted the possibility to obtain general fillets between two given surfaces using two different options:

- All edges

- Fillet between colored faces



While for simple surfaces I'm able to achieve the desired fillet using the first option (All edges), I have some problems to obtain the same result using the second one (Fillet between colored faces). In other words I don't understand how to use correctly the edge fillet operation by means of the option "Fillet between colored faces".



To explain my question I attached a simple example; could someone explain me how to resolve this problem?



Moreover, I would like to know if CAESES offers other options to quickly obtain general fillets between two given surfaces.



Thank tou very much.

Cheers.



Simone

Attached Files


  • 0

#2 Ceyhan Erdem

Ceyhan Erdem

    Advanced Member

  • Moderators
  • 65 posts

Posted 06 February 2019 - 12:08 PM

Hi Simone,



Please find the attached the project where the fillet creation wrt colored faces is performed.



Do not forget that in CAESES, colors can be assigned within BRep for each operation.



So I have created an operation "add sources" where a color is assigned to first face (let's say first_face_color),

then a second "add source" operation; adding the second face and assigning a color (let's say second_face_color)



Finally I can perform the fillet operation between the two colors (first_face_color, second_face_color)



Please let me know if you have further questions.



Cheers

Ceyhan

Attached Files


  • 0

#3 Joerg Palluch

Joerg Palluch

    Moderator

  • Moderators
  • 457 posts
  • LocationBerlin, Germany

Posted 06 February 2019 - 12:49 PM

Hi Simone,

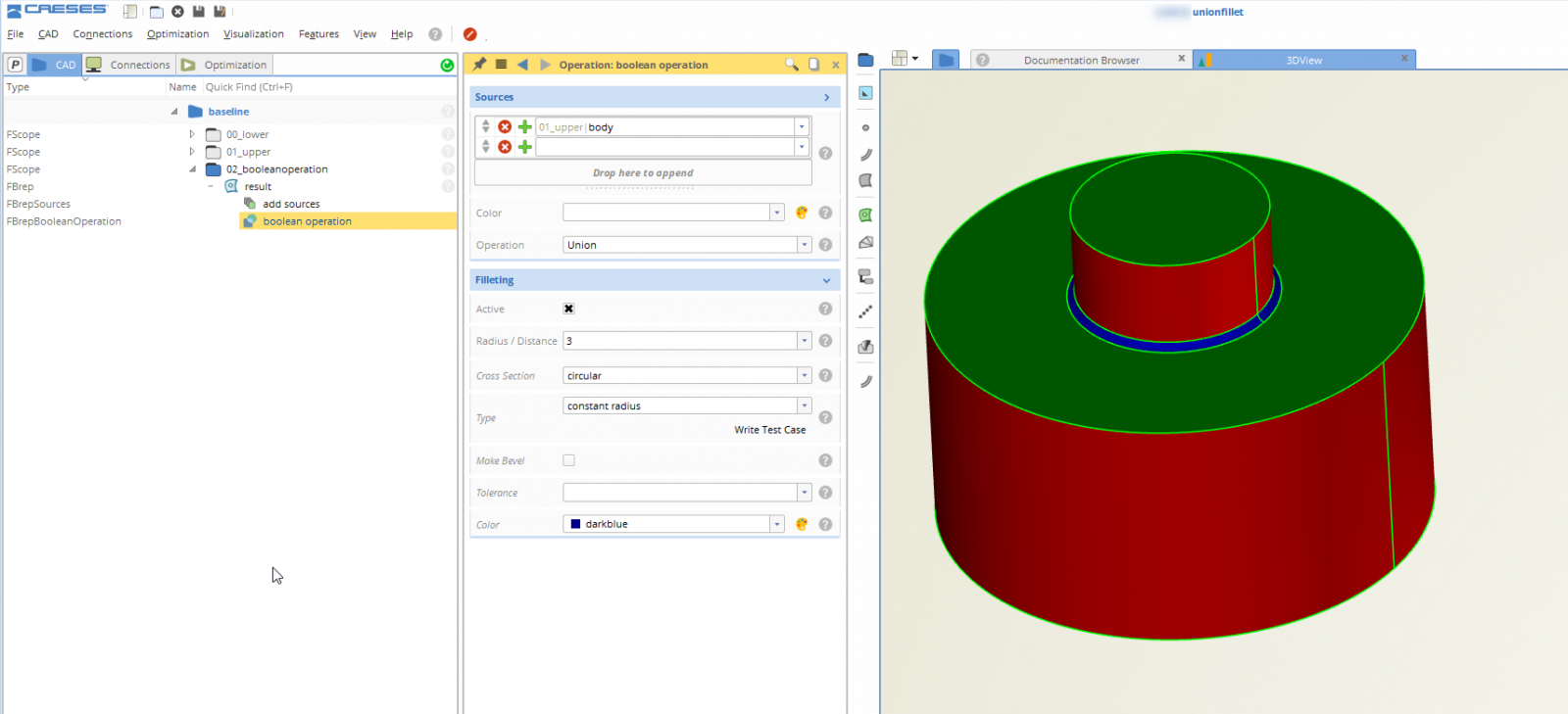

In many cases the fillet is created during operations, e.g. you apply a Boolean operation between two solid bodies and then configure the fillet within the operation itself: boolean_operation_fillet.png



You can find this example in the shipped version of CAESES (documentation browser => basics > general > breps).


  • 0

#4 Mr. Simone Bigalli

Mr. Simone Bigalli

    Member

  • Members
  • PipPip
  • 17 posts

Posted 06 February 2019 - 01:32 PM

Hi Ceyhan and Joerg,

thank you very much for your kind reply that allowed me to better understand how to achieve fillet edge between two general surfaces.



Cheers.



Simone


  • 0

#5 Mr. Simone Bigalli

Mr. Simone Bigalli

    Member

  • Members
  • PipPip
  • 17 posts

Posted 11 February 2019 - 11:45 AM

Hi Ceyhan and Joerg,

I have anoher question: using the BReps functions and the approach "Fillet between colored faces" is it possible to achieve fillet edges with not constant fillet radius (i.e. with a fillet radius that starts to zero and increase its value linearly)?

I noted there is the possibility to manage this aspect changing the "Type" option in the "Filleting" panel (i.e. selecting "constant distance" or "variable radius" instead of "constant radius") but I don't understand how to use these two different approaches.



Thank you very much.

Cheers.



Simone


  • 0

#6 Ceyhan Erdem

Ceyhan Erdem

    Advanced Member

  • Moderators
  • 65 posts

Posted 12 February 2019 - 09:27 AM

Hi Simone,

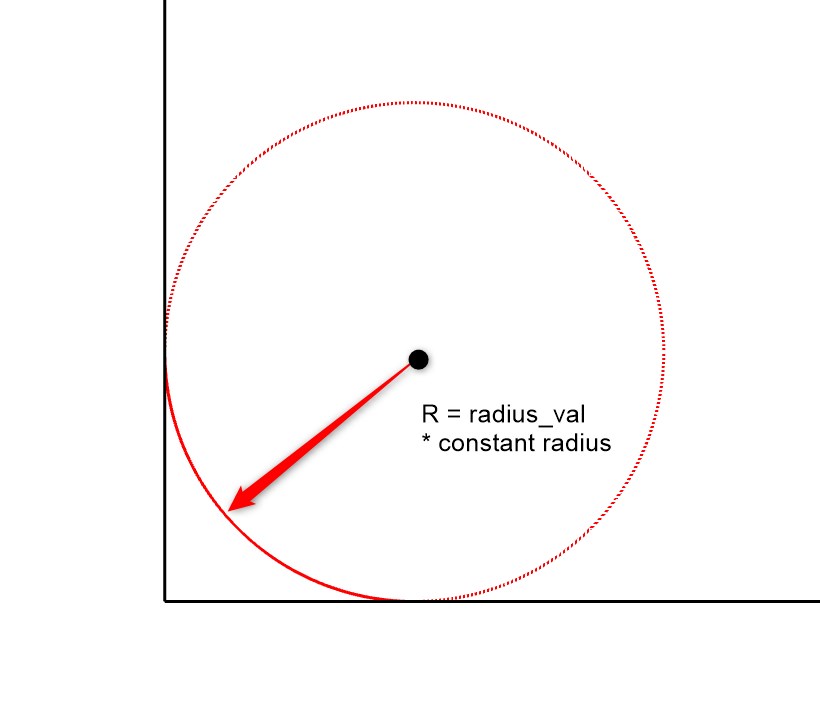

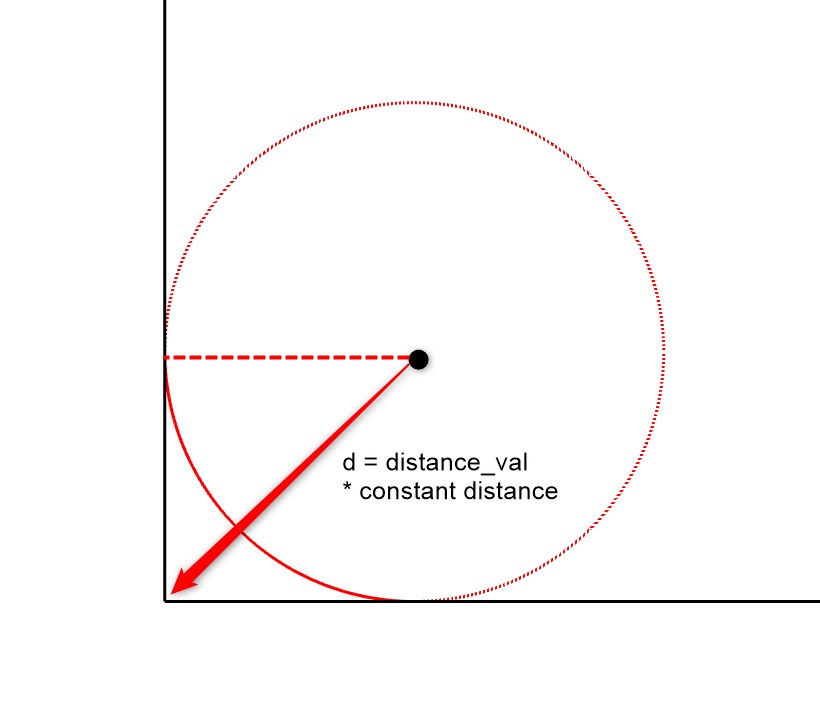

Please check the sketches below,











This might give you an idea about the concepts of constant radius and constant distance.

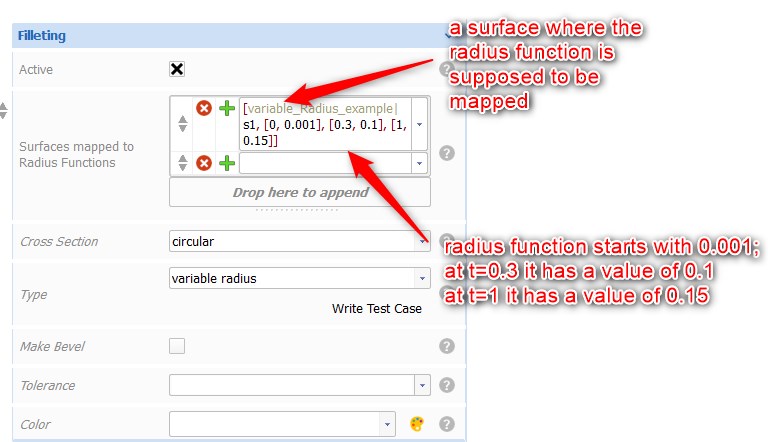

For variable radius, Please check the attached project.








One point to mention is that the variable radius filleting is still under development.



Please let me know if you have further questions.



Cheers

Ceyhan

Attached Files


  • 0

#7 Mr. Simone Bigalli

Mr. Simone Bigalli

    Member

  • Members
  • PipPip
  • 17 posts

Posted 12 February 2019 - 05:14 PM

Hi Ceyhan,

thank you very much for your reply.



Cheers.

Simone
