# Volute design

## Recommended Posts

How to determine a spiral volute casing (turbocharger, pump) cross sectional decrease in value? I am trying to design a volute casing. Problem is, I don't know how much its cross sectional area decreases over time. For instance starting cross sectional area (0 degrees) is 100 cm^2, what will it be when it reaches 45, 90 degrees and so on? Is there any way to calculate it? I am sure that knowing starting and finishing cross sectional areas size (btw I know them) and just connecting them isn't a correct way.

##### Share on other sites

Hi Abu,

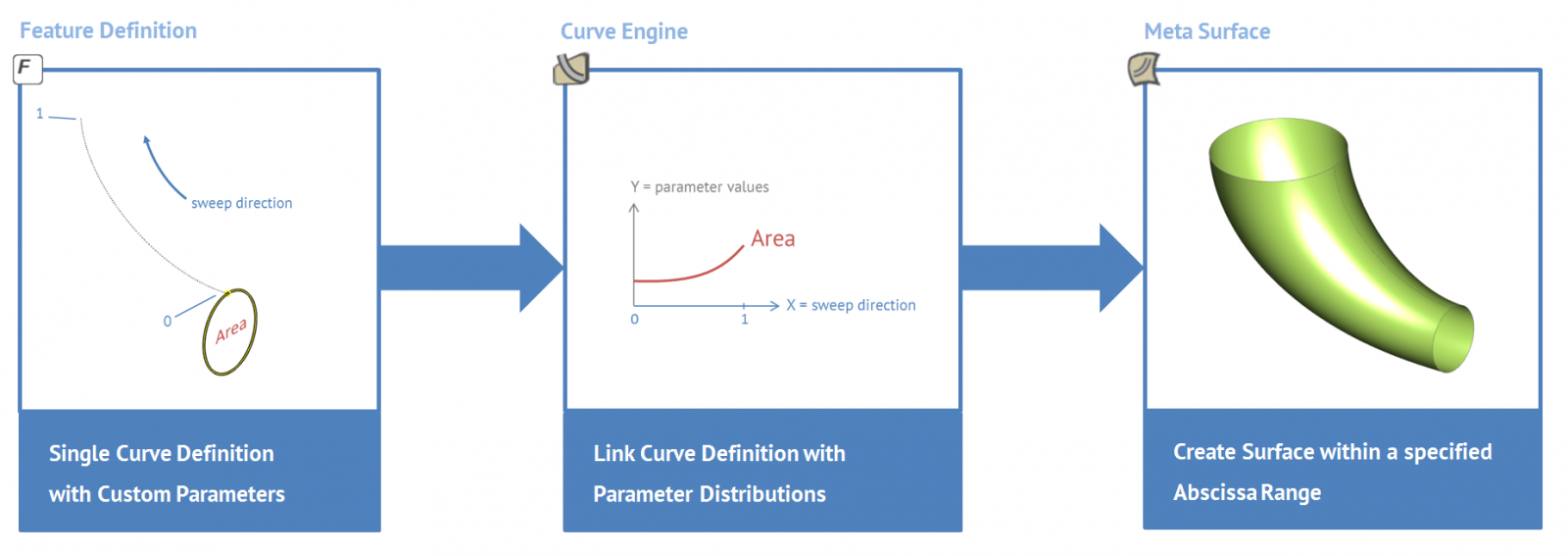

The CAESES volute models are typically controlled by a set of functions, in particular, an area or A/R distribution. You can use the meta surface technique for it.  There are also a few tutorials that show you how to create meta surfaces, see the documentation browser. Do you have a simple cross section definition, or a rather complex one?

Joerg

• 1

##### Share on other sites

Good day,

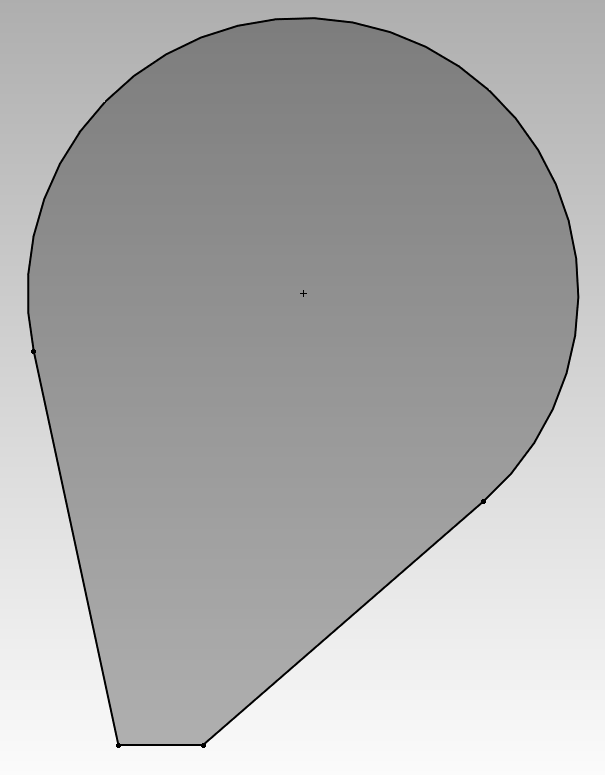

thanks for a reply. I am going to take a look at these tutorials. In the meantime, I am adding a similar instance of my cross section.

Abu

##### Share on other sites

Are there any tutorials about cross section creation? I've seen a video about volute creation, but in that example a cross section is a simple circle, so it's very easy to define its area. Not the case with more complicated shapes like the one I've added tho.

##### Share on other sites

Hi,

Sure, we can send you something. I'll ask my colleagues for an example.

• 1

##### Share on other sites

test.fdbcSo far I've made start and end cross sections. I know that they are not robust (parameters are not variable), but it would still be good enough. How can I make a sweep with custom area distribution with Meta surface from this point? thanks.

##### Share on other sites

Hi there,

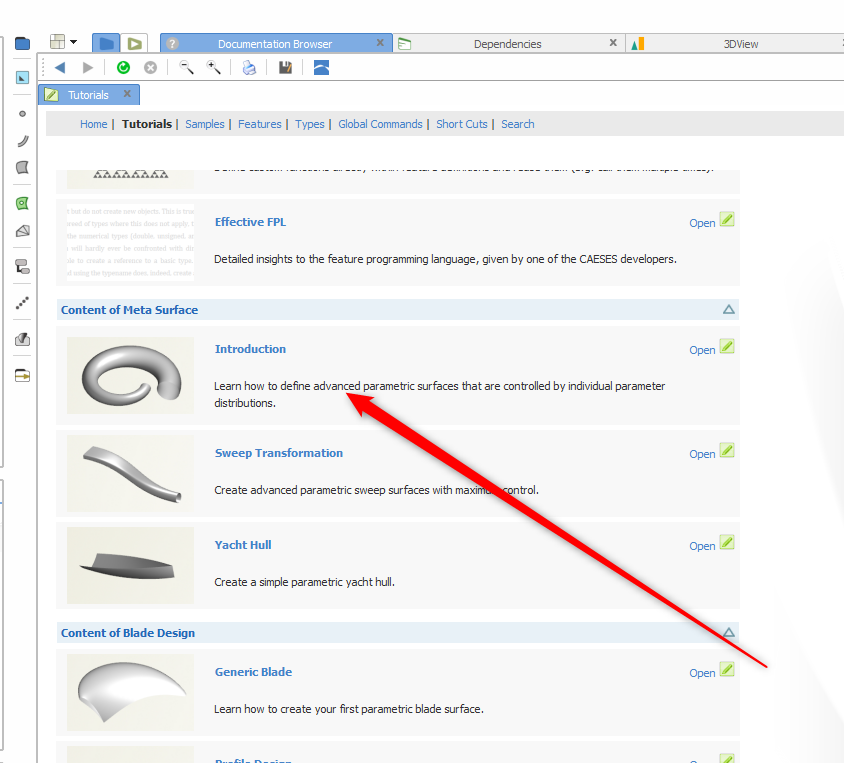

Please check the tutorial that we ship with CAESES:

I am curious to know whether you succeed with the tutorial. Otherwise we need to improve it ;-)

It is just a 2D circle, but it explains how the meta surface technique works. Real world projects are much more complicated. But once you understand this technique, it's easy to model anything with it.

##### Share on other sites

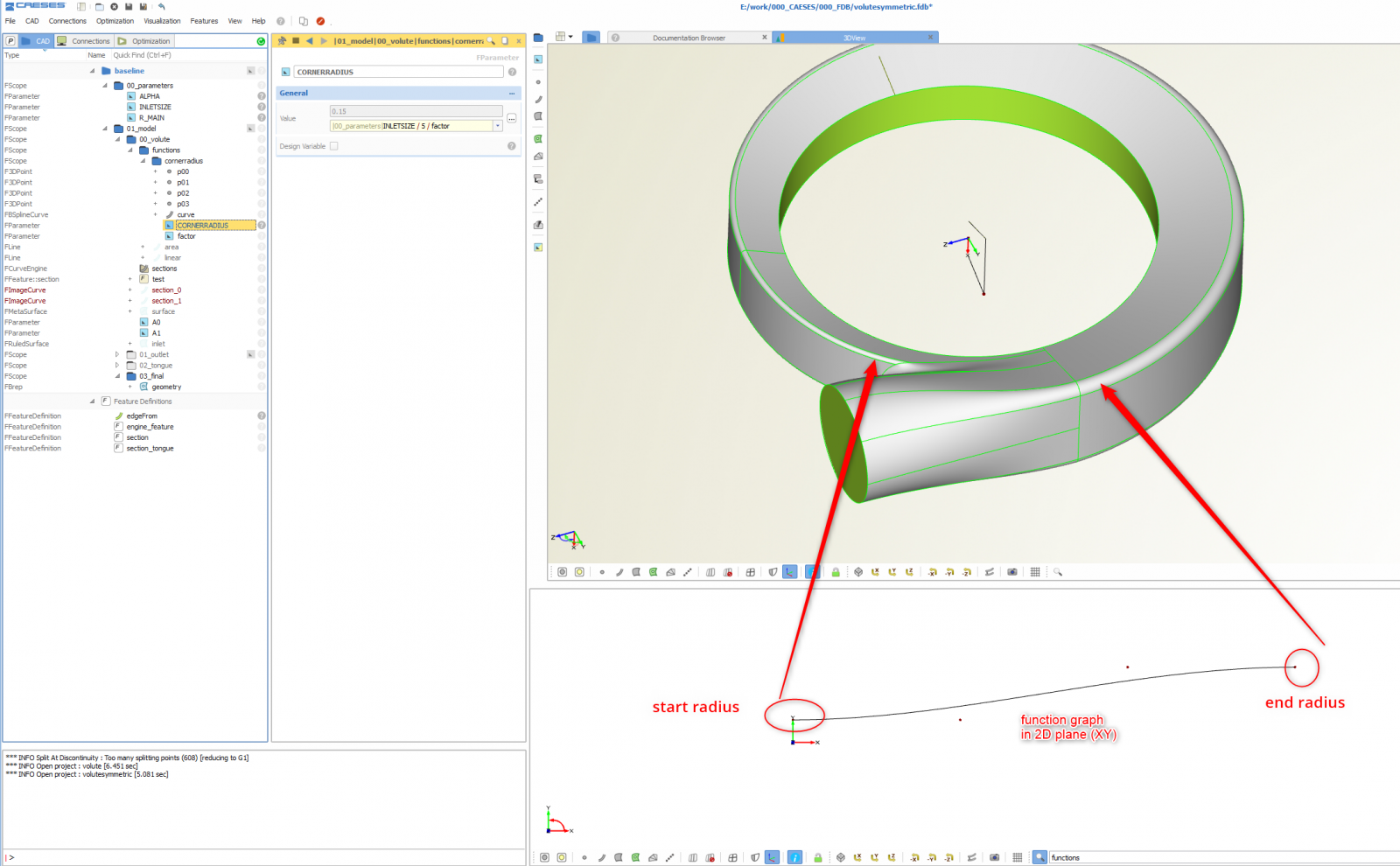

I also add a simple volute example (attachment) where the corner radius of the 2D section is varied in circumferential direction:

You can do the same thing with any 2D parameter of the section, including the area or an A/R ratio. Full sweep control in circumferential direction.

There is also a factor included, to scale down the function graph (sort of normalization), makes it easier to look at it. In the curve engine, this factor is used again to scale it up to the real values.

volutesymmetric.fdb

##### Share on other sites

Thanks! I will take a closer look at your suggested tutorials. Hopefully I will figure it out :)

##### Share on other sites

Any feedback is welcome!  :)

##### Share on other sites

Sorry for late reply, I was busy with other things during this period of time. I made some progress already tho. I will post my model in a few days

##### Share on other sites

I am uploading my finished model. Personally, I am pretty happy about the result. Anyway, perhaps you can give me some suggestions how to improve, optimize my design  :)
Next step for me would be to create a twin scroll volute model. Thank you for your help!

Volute modeling.fdbc

##### Share on other sites

Nice work.  :) Good start!

Any plans to model the tongue (cut-off) part as well?

##### Share on other sites

Yes, I will be posting my modeling updates in the future :)

##### Share on other sites

I have one more question. Today I noticed that volute surface actually is not exactly smooth. Perhaps you can suggest why is this happening? Thanks.

Volute modeling.fdbc

##### Share on other sites

Hi,

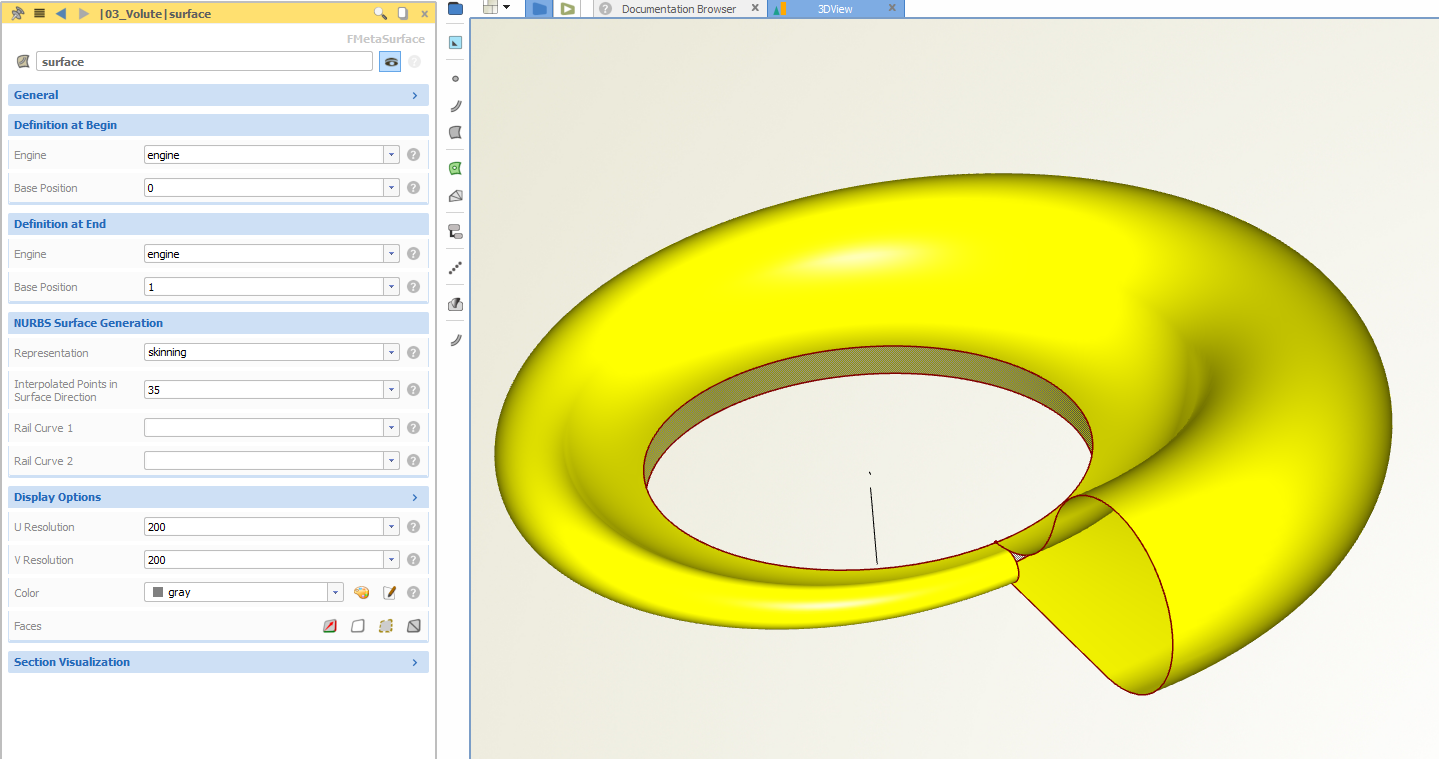

I tried a few more cross-sections (e.g. 35) and also increased the rendering resolution, and to me it looks quite ok:

Joerg

• 1
