2d airfoil profile surfaces

[Mr. Matthew Wegener 0]

Hello all,

I have created a parameterized 2d drawing of a 4 element wing profile. I am trying to export these as surfaces so that I can utilize the ANSYS plugin to do a 2d flow simulation. However, when I try to export the surface, the .fsc file loads fine, but it seems to have trouble attaching the geometry. Any help is appreciated.



Thank you,

Matt

RW11RearWingProfile.fdbc

[Jörg 29]

Hi Matt,



The relevant csv-files are missing to reproduce or test it.

Cheers

Joerg

[Mr. Matthew Wegener 0]

Hello,

Sorry about that. The requisite files are now attached.



Cheers

Matt

wingprofiledata.zip

[Jörg 29]

Hi Matthew,

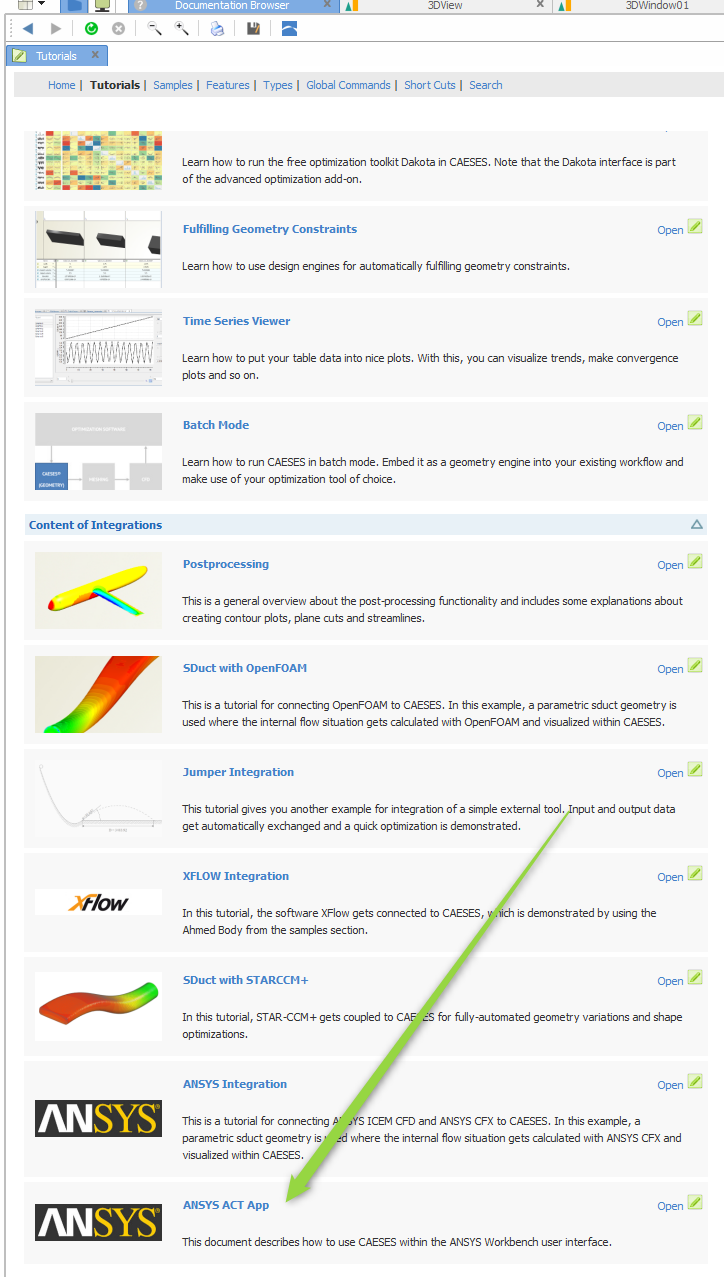

Have you checked the tutorial about the ANSYS ACT app? You can find it in the documentation browser:



We recomment to use *.sat files for a correct automation process when using the app. I noticed that you try to export STL. At least, this is one thing that I can observe which might lead to problems.



Cheers

Joerg



[Mr. Matthew Wegener 0]

Hello again,

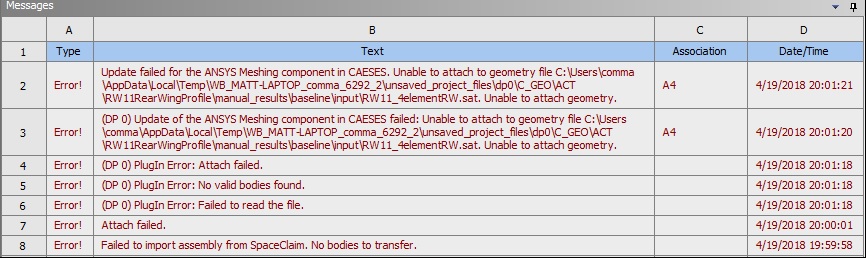

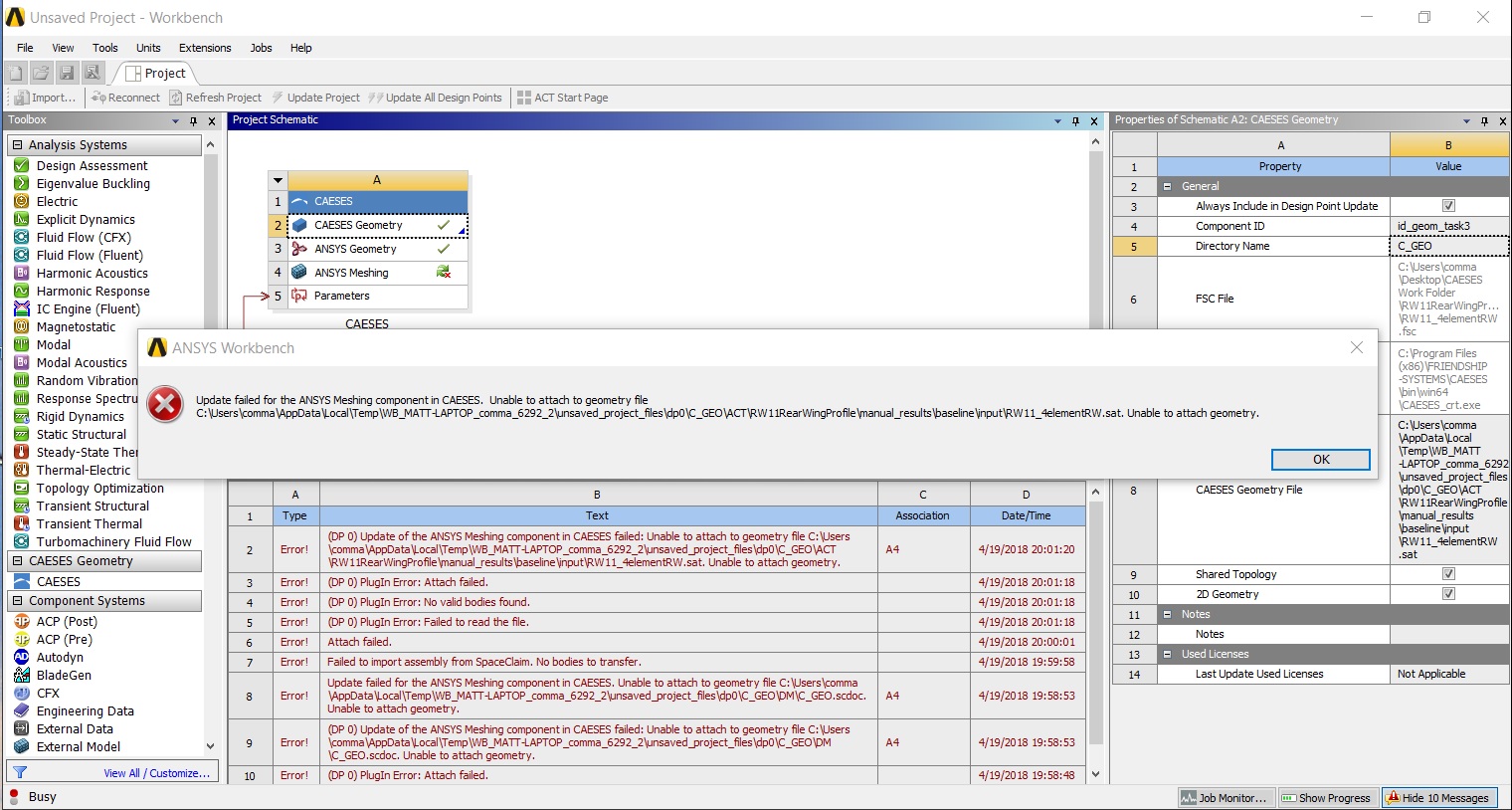

Yes I did watch the ACT app tutorial. I had initially used .sat, but recieved errors so I attempted to experiment. I updated the project to export as an .sat and loaded into ANSYS. I now receive the attached errors.



Thank you,

Matt





RW11RearWingProfile.fdbc

[Jörg 29]

Hi Matt,



We'll take a look at it.



Cheers

Joerg

[Ceyhan Erdem 15]

Hi Matt,



Within your project, in the feature definition "importpointdata" seems you were creating a tableViewer which in fact is a gui operation.

When disabled everything began to work with no problem.



Another remark is that within the same feature definition you have created an FBool with a name "visible" which is a used name by the system , already giving an error. I have changed that one with "show".



Please let me know if you encounter any problems.



Note: I have changed the folder structure, please do not forget to recreate your fsc file and close Caeses while workbench is running.



Cheers

Ceyhan

RW11RearWingProfile.fdbc.tar.gz

[Mr. Matthew Wegener 0]

Hello,

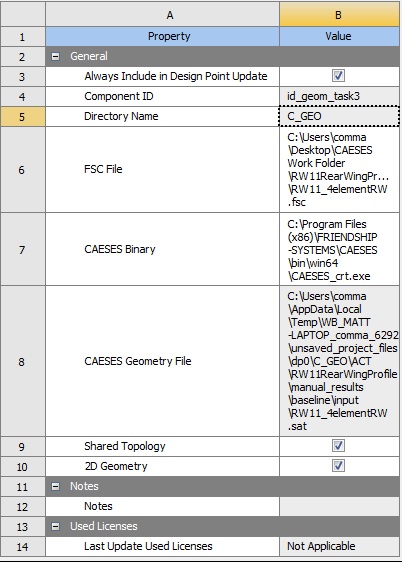

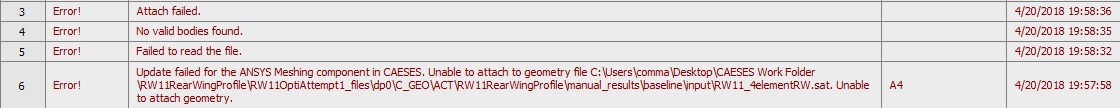

I exported the surface to Ansys, but I still seem to be getting an attach error, shown below. I attempted the import in DesignModeler, but it failed to read the file.



Cheers,

Matt

RW11RearWingProfile.fdbc

[Ceyhan Erdem 15]

Hi Matt,



Can you please verify if you did the following change on your Ansys installation, as mentioned in the CAESES Act app installation instructions?



In the installation directory, edit the following file:

Windows:       /vXXX/Addins/ACT/bin/Win64/TransferTypeDirectPropertyAccessList.xml
Linux:            /vXXX/Addins/ACT/bin/Linux64/TransferTypeDirectPropertyAccessList.xml

Add the highlighted line:

<TransferTypes>
.....
<TransferType>FEMSetup</TransferType>
</TransferTypes>



Cheers

Ceyhan

[Mr. Matthew Wegener 0]

Hi Ceyhan,

I can confirm that I did this.





[Ceyhan Erdem 15]

Hi Matt,



This looks strange. I have no problems to make it work.



Please let me know when you may be available, so that we can arrange a web-meeting and I can check your setup.

You can send me an email to;



erdem@friendship-systems.com



Cheers

Ceyhan

[sisi 1]

On 4/24/2018 at 12:05 AM, Mr. Matthew Wegener said:

Hi Ceyhan,

I can confirm that I did this.





Hello, I would like to know how you solve this problem. My 2D model import to workbench does not include the named selection.
