Mr. Daniel Floden 0 Report post Posted December 12, 2013 Hi, What is the most straight forward way of exporting lines (in xy-plane) to AutoCad? RegardsDaniel Share this post Link to post Share on other sites
Jörg 29 Report post Posted December 12, 2013 Hi Daniel, Currently, we support only a subset of the DXF import. The DXF export is not available so far (but we will check it).With lines you mean e.g. curves in your 3D view, right? As a work around, can you use IGES for this purpose? CheersJoerg Share this post Link to post Share on other sites

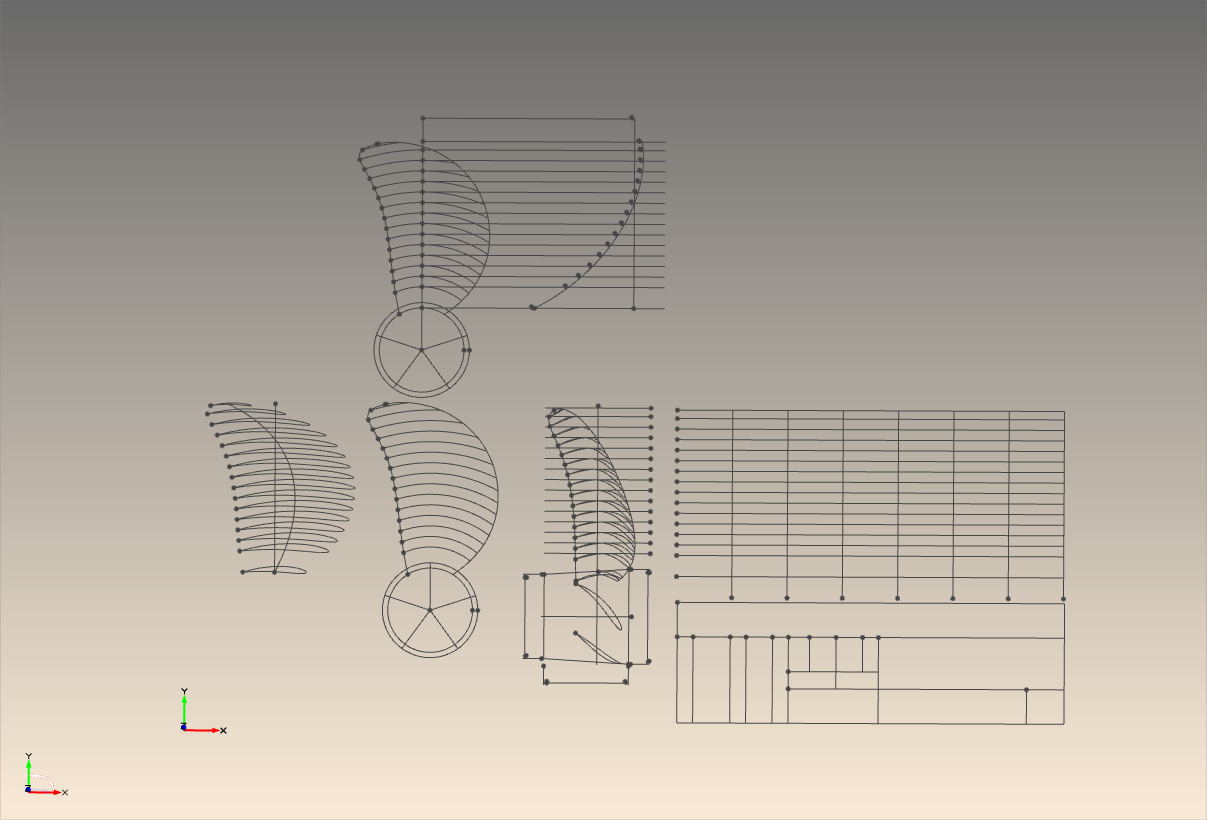

Mr. Claus Abt 14 Report post Posted December 12, 2013 Hi Daniel, I tried a converter from PDF to DXF which I found in the web. Seems to work fine and there are a few out there. Maybe as a workaround this is sufficient? PropDrawing.pdfPropDrawing.zip The reimported does not show numbers but I think this is because CAESES / FFW does not support these entities. CheersClaus Share this post Link to post Share on other sites
Mr. Daniel Floden 0 Report post Posted December 16, 2013 Thanks for the info, Iges is the way forward, I thought I tested that but I must have made som error when I exported, but now it works well! Thank you. Pdf to dxf is perfect for the 2s view. Thanks. /Daniel Share this post Link to post Share on other sites
