mlysyshyn 0 Report post Posted June 21, 2020 Hello, I am really new to CAESES and I tried the s-duct tutorial, followed all steps but I am getting an message: External process start failure [Starting process C:/Users/HP/Desktop/skola/DP/sduct/sduct/manual_results/baseline/Runner//Allrun failed: Process failed to start:] Currently using OpenFOAM v1912 installed on Ubuntu 18.04 for Windows 10, Allrun and stdouterroroutput files are attached. I will really appreciate any help! stdouterroroutput.redirect Allrun Share this post Link to post Share on other sites
Ceyhan Erdem 15 Report post Posted June 22, 2020 Hi Mlysyshyn, I can see that the files are are moved to their related locations. Can you please share any console output? Or some OpenFoam logs where the problem can be tracked? Cheers Ceyhan 1 Share this post Link to post Share on other sites
mlysyshyn 0 Report post Posted June 25, 2020 Hi Ceyhan, I have found a mistake on my own, sorry for bothering you. It was wrong argument set-up in the Runner. Share this post Link to post Share on other sites
mlysyshyn 0 Report post Posted June 28, 2020 Hello Ceyhan, I managed to run optimization for sduct once, but now I am trying to do it once more and literally nothing happens when I start the runner. What is interesting, if I open minnty.exe manually It already has those lines inside: OpenFOAM for Windows 19.10 (v1) bash: dirname: command not found bash: cygpath: command not found bash: sed: command not found bash: cygpath: command not found bash: //OpenFOAM-dev/etc/config.sh/functions: No such file or directory bash: //OpenFOAM-dev/bin/foamEtcFile: No such file or directory bash: _foamSource: command not found bash: _foamEval: command not found bash: //OpenFOAM-dev/bin/foamCleanPath: No such file or directory bash: //OpenFOAM-dev/bin/foamCleanPath: No such file or directory bash: //OpenFOAM-dev/bin/foamCleanPath: No such file or directory bash: _foamSource: command not found bash: _foamSource: command not found bash: cygpath: command not found bash: //OpenFOAM-dev/bin/foamEtcFile: No such file or directory bash: _foamSource: command not found bash: //OpenFOAM-dev/bin/foamEtcFile: No such file or directory bash: _foamSource: command not found bash: //OpenFOAM-dev/bin/foamEtcFile: No such file or directory bash: _foamSource: command not found bash: //OpenFOAM-dev/bin/foamEtcFile: No such file or directory bash: _foamSource: command not found bash: //OpenFOAM-dev/bin/foamEtcFile: No such file or directory bash: _foamSource: command not found bash: //OpenFOAM-dev/bin/foamCleanPath: No such file or directory bash: //OpenFOAM-dev/bin/foamCleanPath: No such file or directory bash: //OpenFOAM-dev/bin/foamCleanPath: No such file or directory bash: //OpenFOAM-dev/etc/config.sh/functions: No such file or directory bash: mkdir: command not found bash: cygpath: command not found bash: cd: C:/Users/HP/Desktop/skola/DP/sduct3/Sduct_with_openfoam_2_FSYS/manual_results/baseline/OpenFOAM/: No such file or directory bash: Allrun.sh: command not found bash: tee: command not found I am not an expert in Linux, nor Openfoam, so probably there is one more stupid mistake, which I cannot figure out by myself. Thanks in advance! Share this post Link to post Share on other sites
Ceyhan Erdem 15 Report post Posted June 29, 2020 Hi Mlysyshyn, Can you please share your project file if it is not confidential? You can also send it to erdem@friendship-systems.com so that I can give a look at your SoftwareConnector setup. Cheers Ceyhan 1 Share this post Link to post Share on other sites

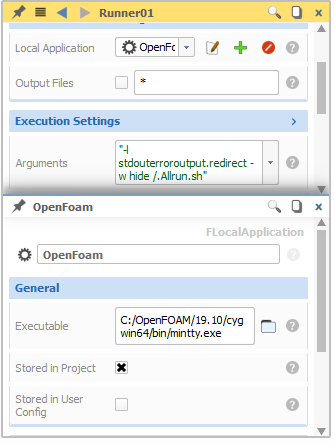

mlysyshyn 0 Report post Posted June 29, 2020 Hi, Sure I am simply copying the tutorial so it is not confidential. I also attached screenshot of runner settings. Sduct_with_openfoam_2_FSYS.fdbc Share this post Link to post Share on other sites
Ceyhan Erdem 15 Report post Posted June 30, 2020 Hi Mlysyshyn, sorry for the late answer, I will check your model tomorrow and will write you as soon as I find the problem. Cheers Ceyhan Share this post Link to post Share on other sites

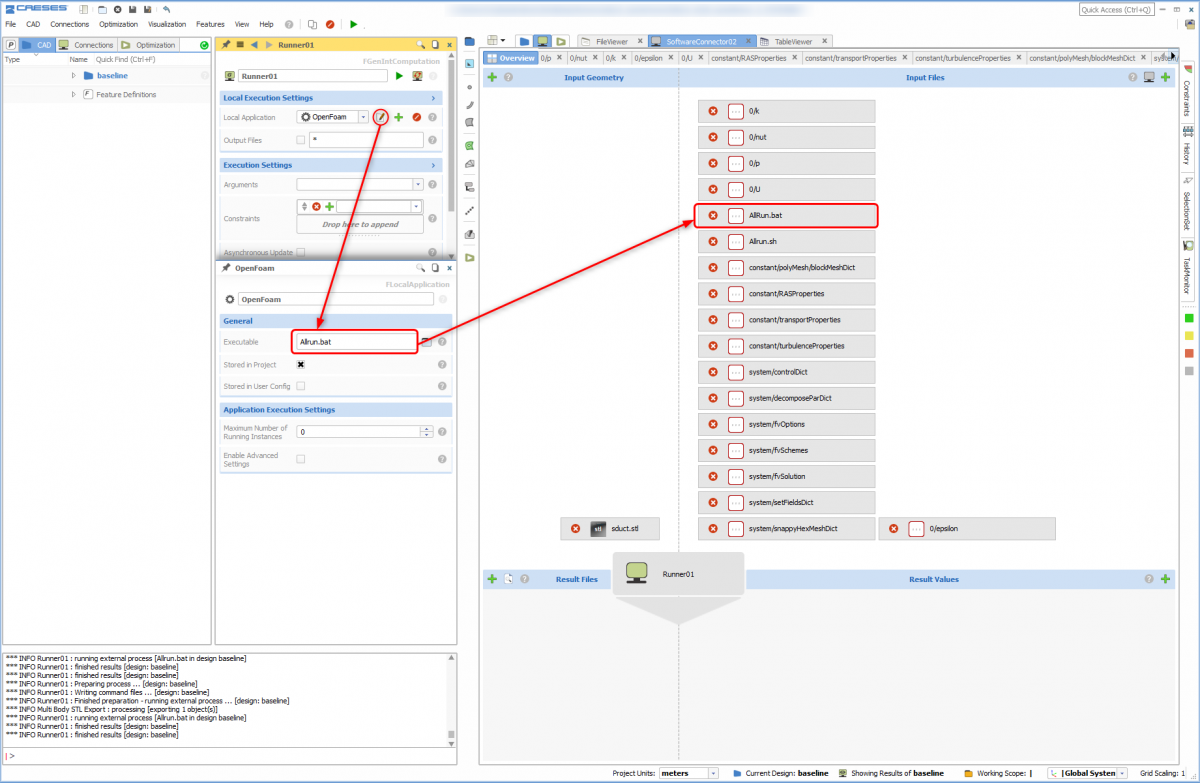

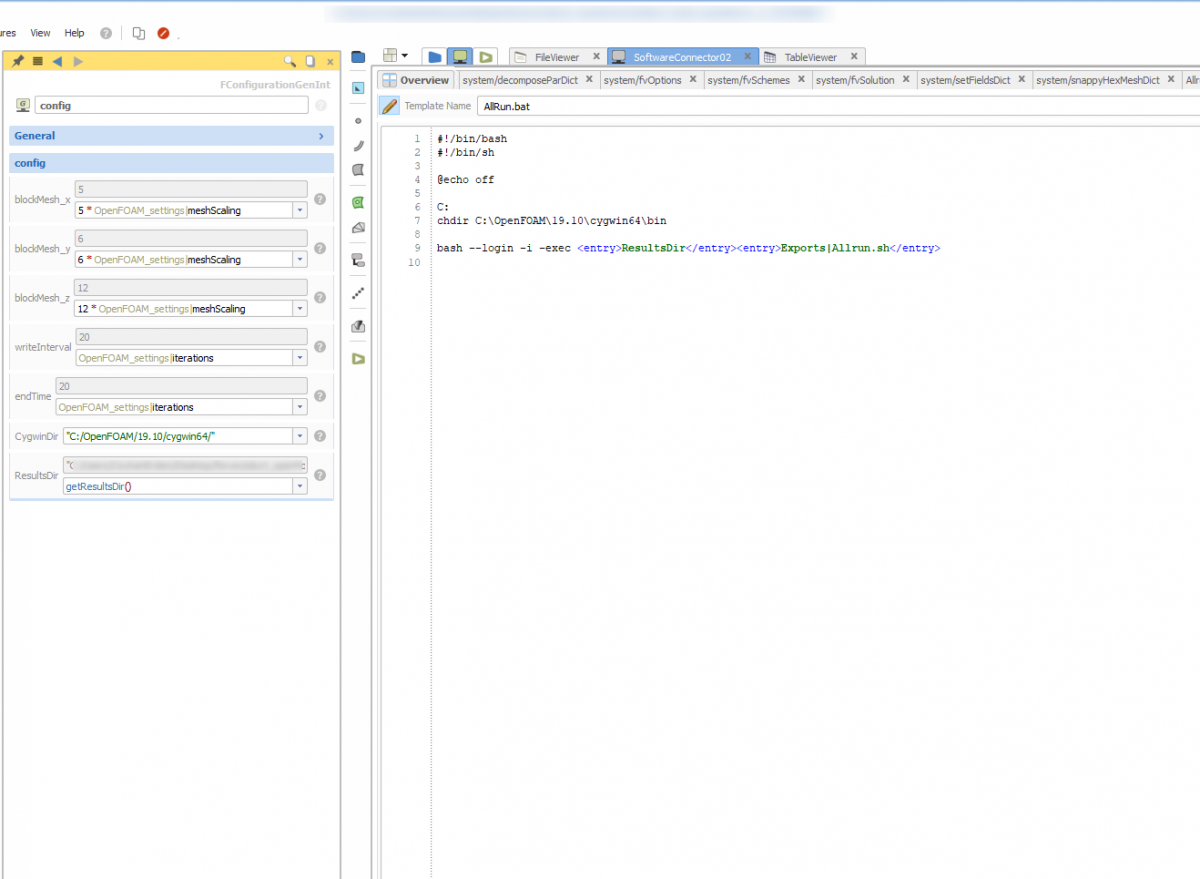

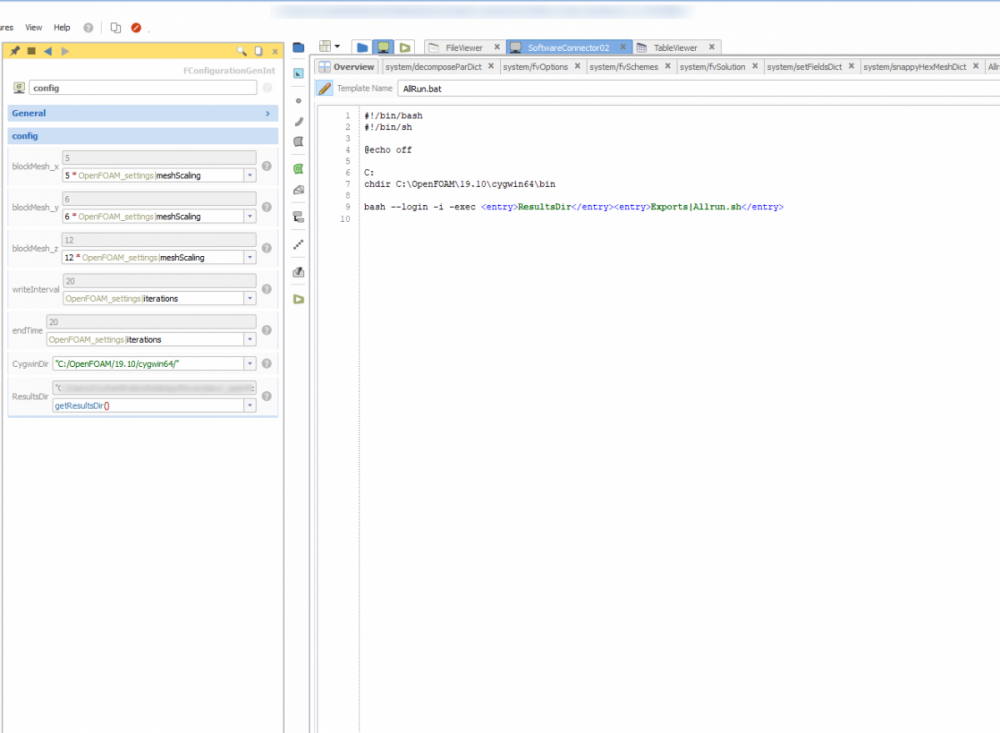

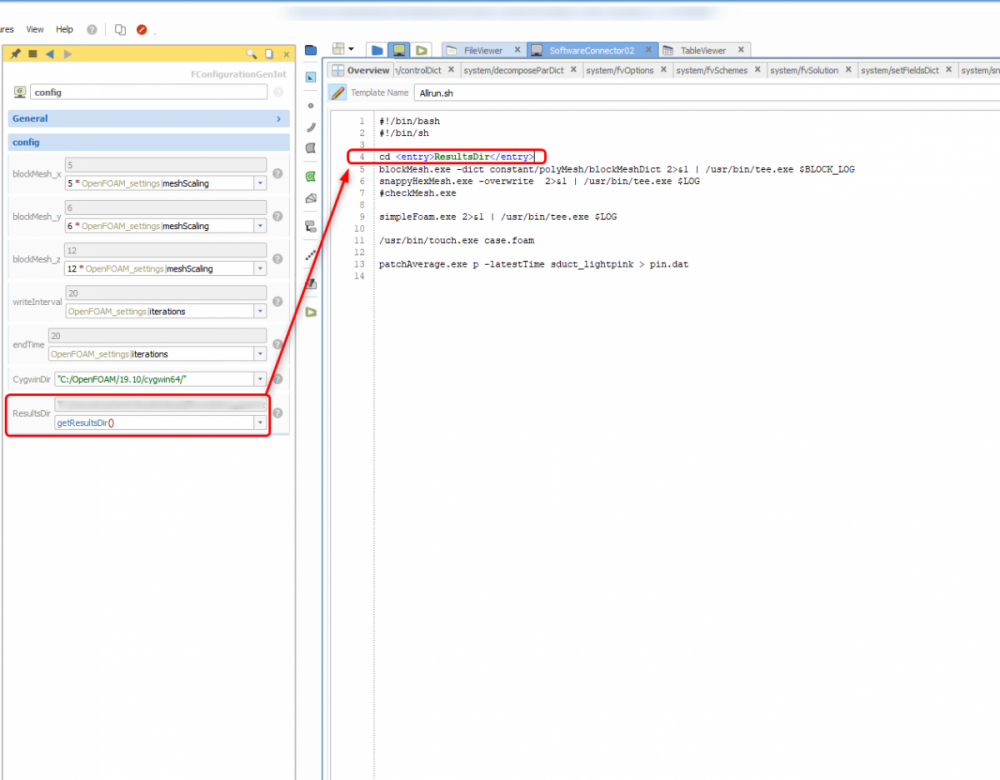

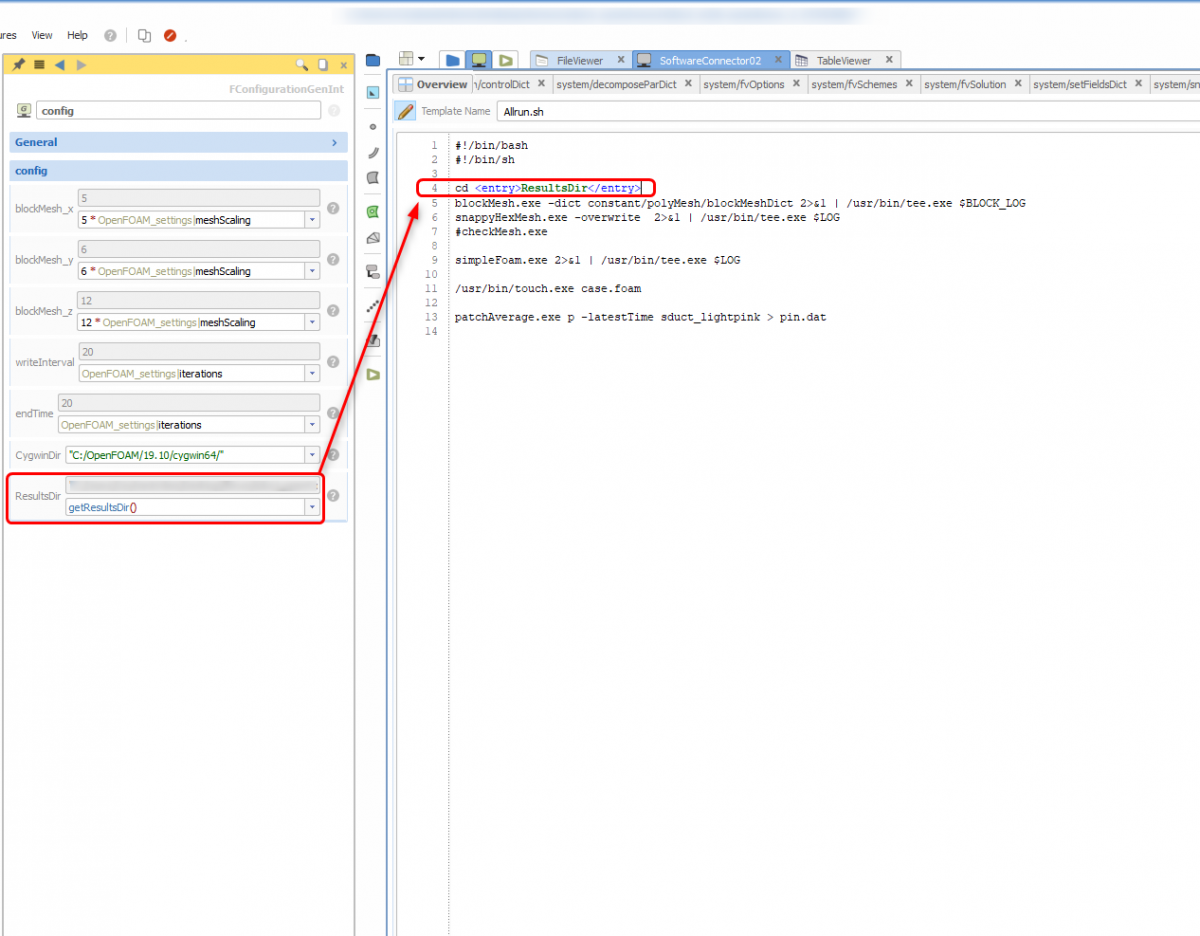

Ceyhan Erdem 15 Report post Posted July 1, 2020 Hi Mlysyshyn, Please find attached the modified version. Some modifications I have performed; 1) Within the Runner for the "Local Application" I have selected the AllRun.bat which I have created. Please note that I am not using any arguments. 2) The RunAll.bat executable includes commands within the "C:\OpenFOAM\19.10\cygwin64\Cygwin.bat" executable (lines 4-9) and the path to my script file which is the AllRun.sh (line 9) 3) Finally made a little modification to the script file. The final configuration seems to be working but didn't pay attention to the OpenFoam setup. Cheers Ceyhan Sduct_with_openfoam_2_FSYS.fdbc 1 Share this post Link to post Share on other sites
mlysyshyn 0 Report post Posted July 1, 2020 Hi Ceyhan, Thank you for your time, I really appreciate that! I have tried new configurations, but it still does not work. I am attaching the output file. Any chance there is something wrong with my OpenFOAM or Cygwin? And also is it better to use another .bat file to call the bash application than setting minnty.exe as executable directly like it was shown during one of the webinars? Thanks in advance. stdouterroroutput.redirect Share this post Link to post Share on other sites
Ceyhan Erdem 15 Report post Posted July 2, 2020 Hi Mlysyshyn, For sure you can do that as well. Will create the new configuration and send it once I have some time today. Cheers Ceyhan 1 Share this post Link to post Share on other sites
mlysyshyn 0 Report post Posted July 3, 2020 Hi Ceyhan, Thanks for the answer! Waiting for new configuration, have as much time as you need. Share this post Link to post Share on other sites
mlysyshyn 0 Report post Posted July 7, 2020 Hi Ceyhan, I hope you did not forget about me Share this post Link to post Share on other sites
Ceyhan Erdem 15 Report post Posted July 7, 2020 Hi Mlysyshyn, I am waiting for some feedback from the CFDSupport guys. Meanwhile I would suggest you to use the solution that I have provided you earlier. Cheers Ceyhan Share this post Link to post Share on other sites
mlysyshyn 0 Report post Posted July 8, 2020 Hi Ceyhan, Okay, I just asked, because I know you have a lot of work answering questions on forum. Share this post Link to post Share on other sites
Mr. Christian Anzalotta 0 Report post Posted July 28, 2020 bump same issue my ./Allrun does not work meanwhile OF4WIN does work. I can run manually the configuration and then I can run the STL with linux commands. As soon as I attempt to use the ./Allrun script it will not run any of the commands and I have attempted to simplify my commands even to just blockMesh and it will not find the commands. The terminal from CAESES outputs that top response because it is not finding any of the commands from the dictionary. Weird because ./Allrun script shouldn't be causing these issues unless there is a weird communication or specific structure Share this post Link to post Share on other sites
Mr. Christian Anzalotta 0 Report post Posted July 29, 2020 So update I followed several of the Ahmed, Sduct and propeller OpenFOAM for Windows setups. I've downloaded simFlow engine for Openfoam for windows and found the .bat file actually runs fine on my desktop through terminal/command prompt however when I allow CAESES to execute the file it fails to find any of the commands stated such as blockMesh etc. So is this an administrator rights issue or something else that I can edit to fix? I literally copied over the Sduct simflow workflow demo and if I execute the Allrun.bat or manually execute each command via command prompt outside of CAESES everything works fine. Only when CAESES is told to run the .bat I receive issues with unrecognized commands for the dictionary etc. So Im unsure why through the software connector its unable to execute properly. I also relinked all the files to the folder. Moving C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner/input/0 to C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner//0 Moving C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner/input/allrun.bat to C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner//allrun.bat Moving C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner/input/constant to C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner//constant Moving C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner/input/system to C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner//system [Captured output from application C:/Users/Christian/Desktop/simflow/manual_results/baseline/Runner//allrun.bat] C:\Users\Christian\Desktop\simflow\manual_results\baseline\Runner>surfaceFeatureExtract 'surfaceFeatureExtract' is not recognized as an internal or external command, operable program or batch file. C:\Users\Christian\Desktop\simflow\manual_results\baseline\Runner>blockMesh 'blockMesh' is not recognized as an internal or external command, operable program or batch file. C:\Users\Christian\Desktop\simflow\manual_results\baseline\Runner>snappyHexMesh -overwrite 'snappyHexMesh' is not recognized as an internal or external command, operable program or batch file Share this post Link to post Share on other sites
Mr. Christian Anzalotta 0 Report post Posted July 29, 2020 The solution was to run both the simflow installer and CAESES installer with admin rights and run them with admin rights. No issues now! Share this post Link to post Share on other sites
mlysyshyn 0 Report post Posted August 1, 2020 On 7/30/2020 at 1:20 AM, Mr. Christian Anzalotta said: The solution was to run both the simflow installer and CAESES installer with admin rights and run them with admin rights. No issues now! Hi Christian, I am not sure if I understtod right, I only need to reinstall Caeses and openfoam and when reinstalling run both installers with admin rights, yes? Share this post Link to post Share on other sites
