Configure axis properties


  • Please log in to reply
3 replies to this topic

#1 Mr. Victor Bolbot

Mr. Victor Bolbot

    Member

  • Members
  • PipPip
  • 14 posts

Posted 07 December 2015 - 06:33 AM

Good morning!

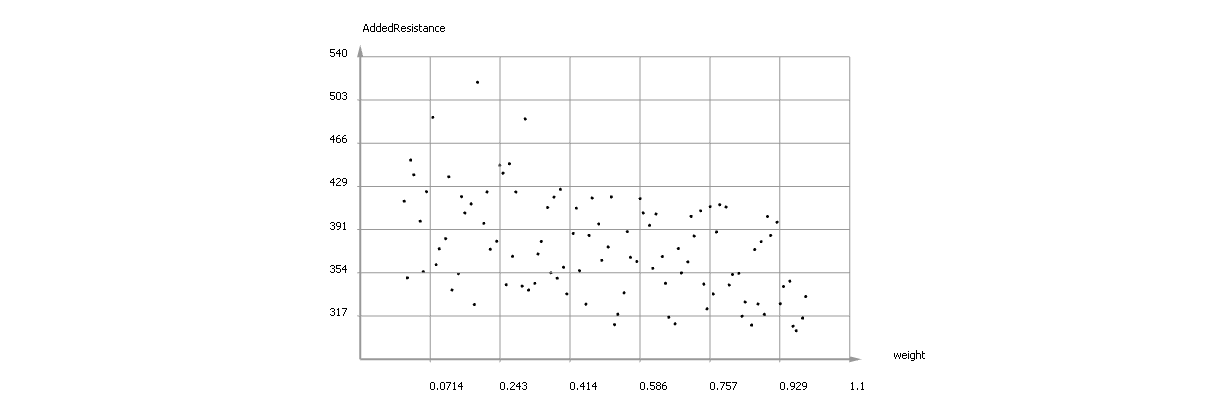

I would to ask to help me to adjust axis subdivision in diagram viewer. It gives me  in x-axis values 0.0714, 0.243, etc., but I would to get 0.1, 0.2 etc. The same happens in y-axis.



Any hint?



Regards,



Victor

Attached Thumbnails

  • caesesAsk.png

  • 0

#2 Karsten Wenzke

Karsten Wenzke

    Moderator

  • Moderators
  • 269 posts
  • LocationBerlin

Posted 07 December 2015 - 08:37 AM

Hey Victor,



This is possible.

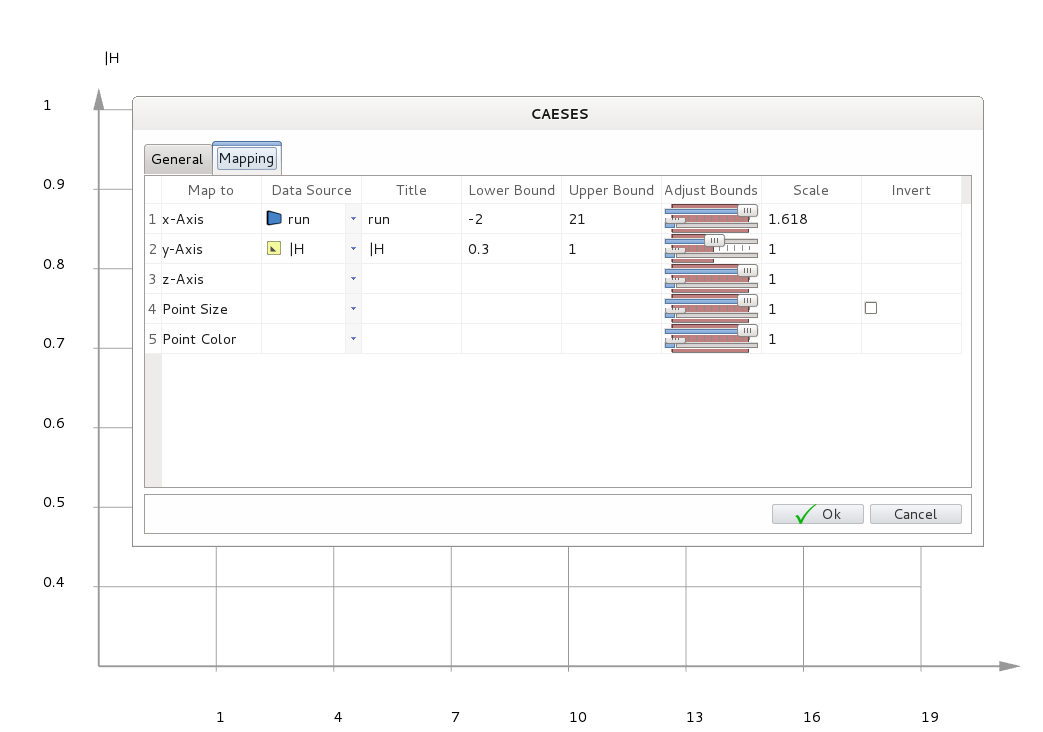

As you can see in the screenshot you can define the lower and upper bounds.


Hope this helps.



Cheers,



Karsten


  • 0

Karsten Wenzke B.Eng.
Service and Support
Engineer


Contact me on Linkedin.



www.friendship-systems.com
TEL. +49 (0)331 967 66 0




#3 Mr. Victor Bolbot

Mr. Victor Bolbot

    Member

  • Members
  • PipPip
  • 14 posts

Posted 07 December 2015 - 09:23 AM

Thank you Karsten.



But I would like also to change the position of grid, not only the upper and lower bounds. I mean in x-axis the grid to be on 0.1, 0.2 ,0.3 0.4, ..1 and on y-axis on 320, 340, 360, ...540.



Cheers,


  • 0

#4 Karsten Wenzke

Karsten Wenzke

    Moderator

  • Moderators
  • 269 posts
  • LocationBerlin

Posted 07 December 2015 - 10:03 AM

Hey Victor,



Unfortunately this is not possible.

You can change at least a bit.

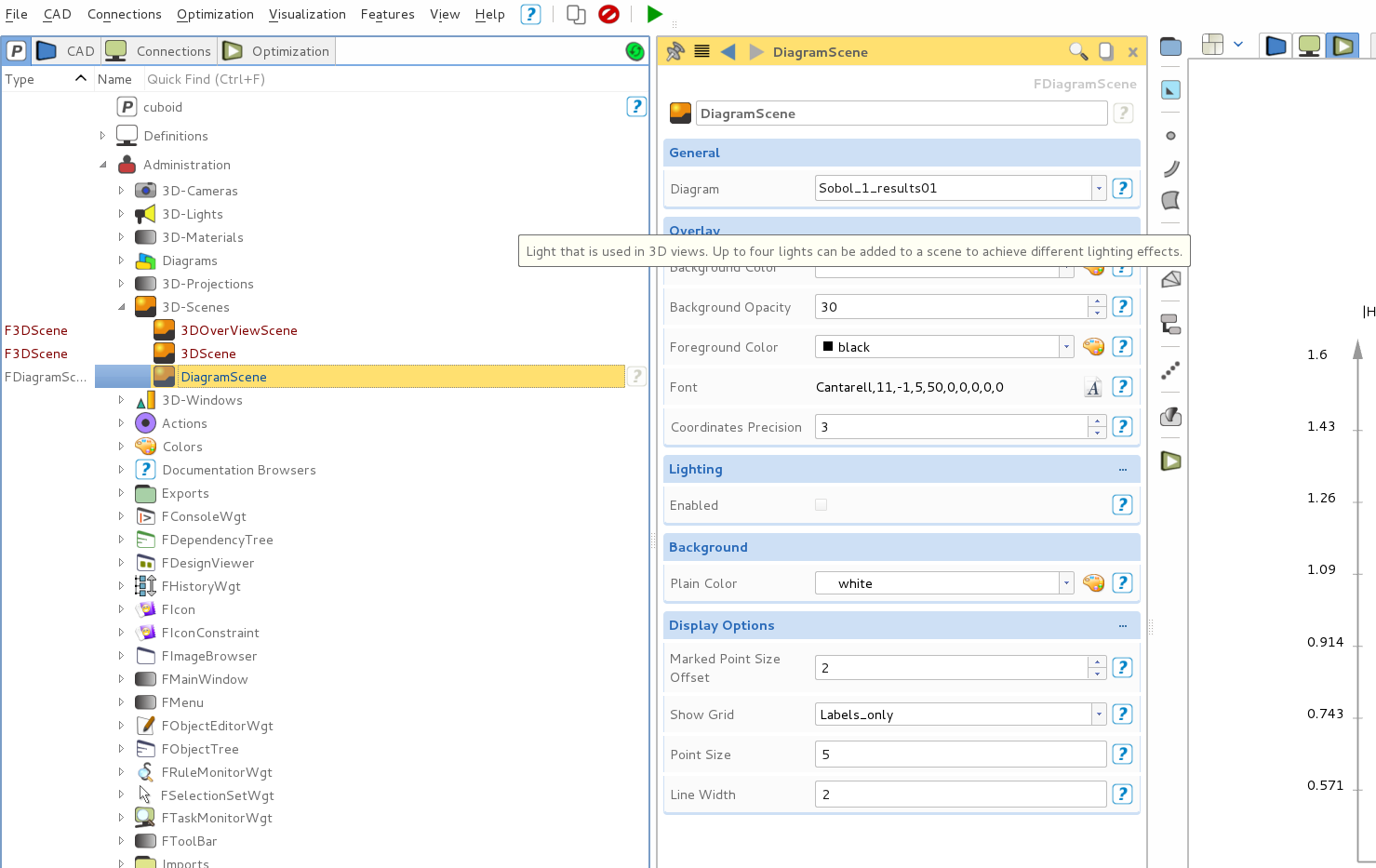

- Just click on the "P" in the left upper corner or the object tree.

- expand the administration section

- expand the 3d Scene

- click diagramScene




Here you can adjust the outlook.



I think these are good ideas and they are also obvious settings you wanna do.

I will propose these ideas to our team and maybe we can make them available.



Thank you for your input.



You can also use the forum section " Ideas and suggestions" if you like for these kinds of improvements. :-)



Cheers,



Karsten


  • 0
