Mr. Birkner Bernhard 0 Report post Posted July 1, 2015 Hey guys. I have created a plot that shows skew, pitch and chord of my propeller.Now I want to use this plot in a paper.How can I get an .png or .eps file that shows me this graph or a 3D view of the propeller ?Cheer, Bernhard Share this post Link to post Share on other sites
Mr. Konrad Lorentz 2 Report post Posted July 1, 2015 Hi Bernhard, you can make a screenshot with the camera tool. RegardsKonrad Share this post Link to post Share on other sites
Mr. Birkner Bernhard 0 Report post Posted July 1, 2015 Thank your, is it possible aswell to get schematic 2D drawings of my 3D propeller Model ? cheers Bernhard Share this post Link to post Share on other sites
Mr. Claus Abt 11 Report post Posted July 1, 2015 Yes,you can create propeller drawings by dragging the propeller into a 2D Window and then adjust the individual view. This was just taken from the samples and dragged into a newly created 2D Window.CheersClaus quickAssembly.pdf Share this post Link to post Share on other sites

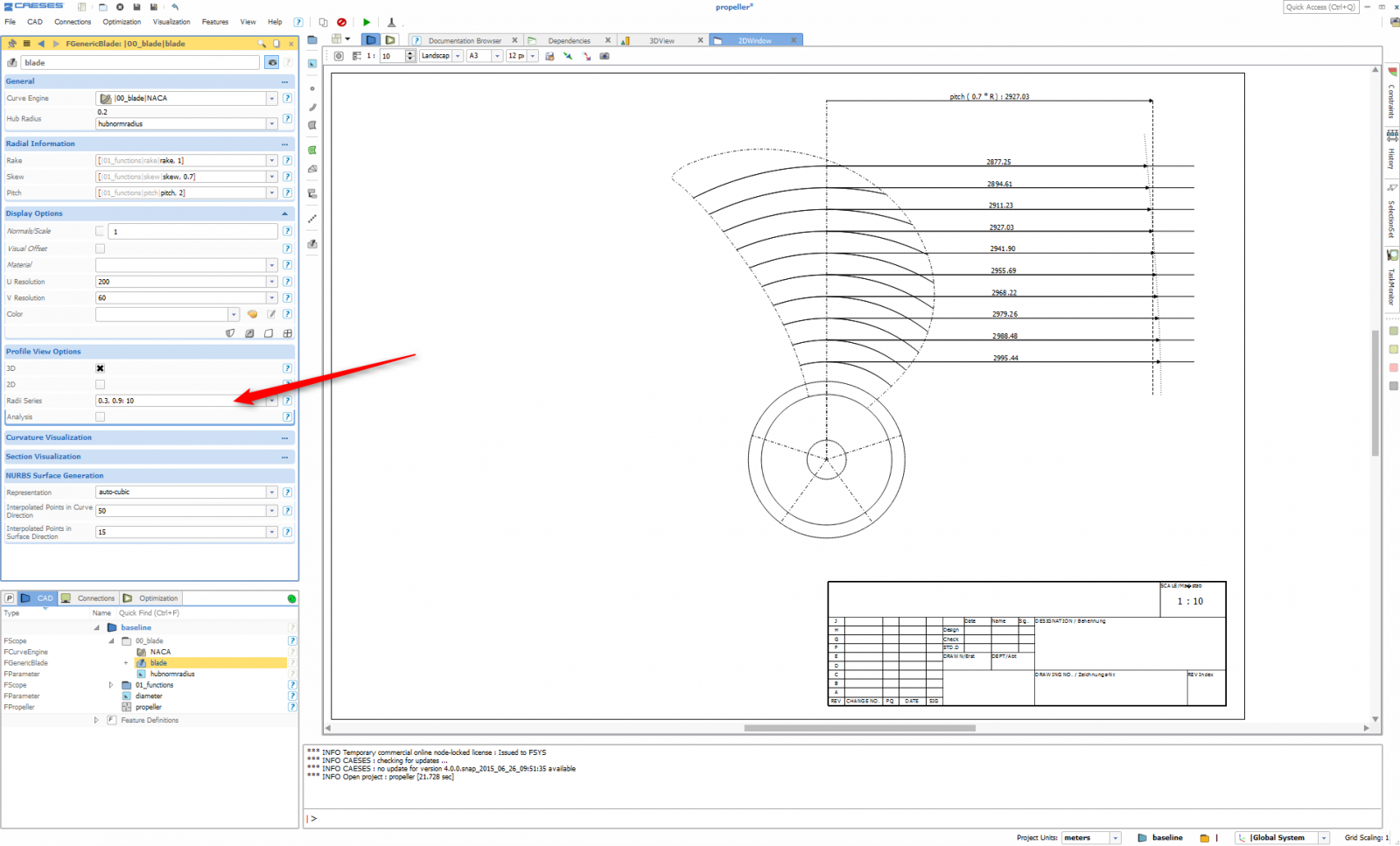

Mr. Birkner Bernhard 0 Report post Posted July 1, 2015 Hey Claus, thanks for your reply.Whenever it tried to drag and drop, the console gave me an info that there are radii missing: INFO |Propeller01 : can not draw sectional information [missing radii at blade]what does it mean?The Radii Series section in the blade configuration is left blank at my project. Cheers Bernhard Share this post Link to post Share on other sites
Mr. Claus Abt 11 Report post Posted July 2, 2015 Please enter a series, e.g. 0.3,0.95:12 will create 12 radial sections ranging from 0.3 to 0.95, or 0.3,0.35..0.95 will create sections every 0.05 steps.CheersClaus Share this post Link to post Share on other sites
