Mr. Adam Kaplan 0 Report post Posted August 18, 2014 Hello, I have boat hull that I am trying to get data from. I have the hull defined, along with a section group defined. I wish to retrieve the area from each offset, however, when I do so, I either get zero as an answer or something incorrect. The command I am using is MySections.getSections().at(X).getArea(0,0,Y,Z)Where X is the offset I wish to retrieve the data from. I am also unsure of what values Y and Z should be, I have been using Y as the lowest point on the draft, and Z as the waterline. EDIT: My hull is defined with the aft at the origin, and the hull defined along the X-axis. Thanks, Adam Share this post Link to post Share on other sites

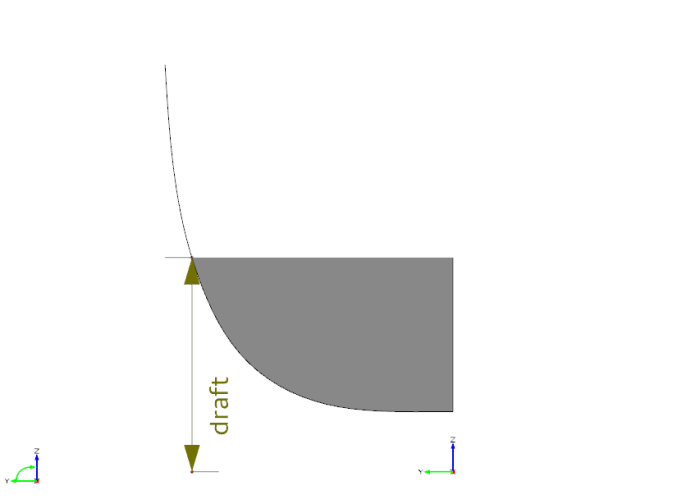

Mr. Sebastian Weickgenannt 1 Report post Posted August 19, 2014 Hi Adam, what you did is almost correct. Unfortunately you just selected the wrong axis for the area calculation, so the zero result is correct, but not wat you wanted. The correct command would be: MySections.getSections().at(X).getArea(2, 0, Z0, ZWL) The first argument defines the axis for the area calculation, in this case 2 for the z-axis.The second argument sets the area plane, here X (Y,Z). The last two arguments specify the start and end position for the calculation with respect to the selected axis, in this case from the lowest point (i.e. Z0=0) to the waterline (ZWL=draft).Of course you could compute the area of the complete section instead of only the submerged part by setting these bounds higher. Or use the y-axis instead for some reason. Cheers, Sebastian edit: typos 1 Share this post Link to post Share on other sites
Mr. Adam Kaplan 0 Report post Posted August 19, 2014 Hello, Thank you for your assistance, that solved my problem. Thanks, Adam Share this post Link to post Share on other sites
Mr. Simone Bigalli 0 Report post Posted September 4, 2018 Hi,I have a question about the evaluation of the area of a generic section. I would like to know if it is possible to extract the global area of a closed B-Spline using the command section.getArea. I tried to obtain this for a generic section I'm working on. However, when I did so, I obtained zero as a result. Thanks. Simone Share this post Link to post Share on other sites
Jörg 29 Report post Posted September 18, 2018 Note that the getArea() command comes with some arguments that you have to provide: abscissa axisplane (axis ID that is normal, for x-axis it is 0, for y it is 1, for z it is 2)parameter ranges (default is [0,1] i.e. probably no need to set specific values) For instance: curve.getArea( 0, 2 ) for the integral area in the xy-plane. Share this post Link to post Share on other sites
