TurboGrid export erroring out in Workbench

[Praveen 0]

Hello, All!
I've been using the latest version of CAESES.
I designed an axial fan blade, and using the Surface method in the TurboGrid export feature, created a CAESES FSC file.
When reading in the FSC file into the CAESES TurboGrid engine in ANSYS Workbench, the ANSYS extension log gives out this error:

Please let me know if there is a workaround for resolving this issue.

[Praveen 0]

This is the entire transcript of the Workbench Extension log :



Extensions Log File
12/3/2024 4:28:58 PM

Resetting id_tg_task2
Deleting id_tg_task2
CALLING onaftertaskreset_TG(task)
CALLING get_system_TG(task)
CALLING getProcessName_TG(task)
getProcessName
task.Name at getProcessName= id_tg_task2
Geom_comp_name at getProcessName= id_tg_task2
end of getProcessName_TG(task)
CALLING getProcessName_TG(task)
getProcessName
task.Name at getProcessName= id_tg_task2
Geom_comp_name at getProcessName= id_tg_task2
end of getProcessName_TG(task)
onaftertaskreset_TG id_tg_task2
end of onaftertaskreset_TG(task)
CALLING createWorkFlow(task)
CALLING getProcessName_TG(task)
getProcessName
task.Name at getProcessName= id_tg_task2
Geom_comp_name at getProcessName= id_tg_task2
end of getProcessName_TG(task)
CALLING get_system_TG(task)
CALLING getProcessName_TG(task)
getProcessName
task.Name at getProcessName= id_tg_task2
Geom_comp_name at getProcessName= id_tg_task2
end of getProcessName_TG(task)
counterTG = 0
counter = 1
finished creating workflow
end of createWorkFlow(task)
CALLING createParameterSet_TG(task)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord1 : 47.4911)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord2 : 65.3502)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord3 : 77.6049)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord4 : 81.0107)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord5 : 83.8507)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal1 : 32.607)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal2 : 33.3391)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal3 : 37.167)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal4 : 38.4693)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal5 : 32.6073)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting1 : 20.4546)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting2 : 23.7288)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting3 : 21.2557)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting4 : 25.5824)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting5 : 27.5514)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger1 : 20.6363)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger2 : 35.4184)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger3 : 40.3953)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger4 : 39.9846)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger5 : 39.2039)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|01_hubContour|radius2Factor : 1)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|02_shroudContour|radius2Factor : 1)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|posHub : 0.05)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|posShroud : 0.05)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt1 : 0)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt2 : 0)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt3 : 0)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaShroud : -20)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist1 : 6.83)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist2 : 6.83)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist3 : 6.83)
DP SET: |V2Opti|NOB : 3)
CALLING create_parameter_object(task)
added chord1 47.4911
CALLING create_parameter_object(task)
added chord2 65.3502
CALLING create_parameter_object(task)
added chord3 77.6049
CALLING create_parameter_object(task)
added chord4 81.0107
CALLING create_parameter_object(task)
added chord5 83.8507
CALLING create_parameter_object(task)
added metal1 32.607
CALLING create_parameter_object(task)
added metal2 33.3391
CALLING create_parameter_object(task)
added metal3 37.167
CALLING create_parameter_object(task)
added metal4 38.4693
CALLING create_parameter_object(task)
added metal5 32.6073
CALLING create_parameter_object(task)
added setting1 20.4546
CALLING create_parameter_object(task)
added setting2 23.7288
CALLING create_parameter_object(task)
added setting3 21.2557
CALLING create_parameter_object(task)
added setting4 25.5824
CALLING create_parameter_object(task)
added setting5 27.5514
CALLING create_parameter_object(task)
added stagger1 20.6363
CALLING create_parameter_object(task)
added stagger2 35.4184
CALLING create_parameter_object(task)
added stagger3 40.3953
CALLING create_parameter_object(task)
added stagger4 39.9846
CALLING create_parameter_object(task)
added stagger5 39.2039
CALLING create_parameter_object(task)
added radius2Factor 1
CALLING create_parameter_object(task)
added radius2Factor 1
CALLING create_parameter_object(task)
added posHub 0.05
CALLING create_parameter_object(task)
added posShroud 0.05
CALLING create_parameter_object(task)
added thetaInt1 0
CALLING create_parameter_object(task)
added thetaInt2 0
CALLING create_parameter_object(task)
added thetaInt3 0
CALLING create_parameter_object(task)
added thetaShroud -20
CALLING create_parameter_object(task)
added dist1 6.83
CALLING create_parameter_object(task)
added dist2 6.83
CALLING create_parameter_object(task)
added dist3 6.83
CALLING create_parameter_object(task)
added NOB 3
finished reading params
end of createParameterSet(task)
CALLING update_TG(task)
CALLING onbeforetaskupdate_TG(task)
CALLING getProcessName_TG(task)
getProcessName
task.Name at getProcessName= id_tg_task2
Geom_comp_name at getProcessName= id_tg_task2
end of getProcessName_TG(task)
onbeforetaskcreation id_tg_task2
end of onbeforetaskupdate_TG(task)
CALLING getProcessName_TG(task)
getProcessName
task.Name at getProcessName= id_tg_task2
Geom_comp_name at getProcessName= id_tg_task2
end of getProcessName_TG(task)
CALLING get_system_TG(task)
CALLING getProcessName_TG(task)
getProcessName
task.Name at getProcessName= id_tg_task2
Geom_comp_name at getProcessName= id_tg_task2
end of getProcessName_TG(task)
CALLING updateUnits_TG(task)
end of updateUnits_TG(task)
CALLING createParameterSet_TG(task)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord1 : 47.4911)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord2 : 65.3502)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord3 : 77.6049)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord4 : 81.0107)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|chord|chord5 : 83.8507)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal1 : 32.607)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal2 : 33.3391)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal3 : 37.167)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal4 : 38.4693)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|metal|metal5 : 32.6073)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting1 : 20.4546)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting2 : 23.7288)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting3 : 21.2557)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting4 : 25.5824)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|setting|setting5 : 27.5514)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger1 : 20.6363)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger2 : 35.4184)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger3 : 40.3953)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger4 : 39.9846)
DP SET: |V2Opti|BladedComponent1|Fan|Functions|stagger|stagger5 : 39.2039)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|01_hubContour|radius2Factor : 1)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|02_shroudContour|radius2Factor : 1)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|posHub : 0.05)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|posShroud : 0.05)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt1 : 0)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt2 : 0)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt3 : 0)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaShroud : -20)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist1 : 6.83)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist2 : 6.83)
DP SET: |V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist3 : 6.83)
DP SET: |V2Opti|NOB : 3)
end of createParameterSet(task)
inputParams : inCAESES_chord1 47.4911
inputParams : inCAESES_chord2 65.3502
inputParams : inCAESES_chord3 77.6049
inputParams : inCAESES_chord4 81.0107
inputParams : inCAESES_chord5 83.8507
inputParams : inCAESES_metal1 32.607
inputParams : inCAESES_metal2 33.3391
inputParams : inCAESES_metal3 37.167
inputParams : inCAESES_metal4 38.4693
inputParams : inCAESES_metal5 32.6073
inputParams : inCAESES_setting1 20.4546
inputParams : inCAESES_setting2 23.7288
inputParams : inCAESES_setting3 21.2557
inputParams : inCAESES_setting4 25.5824
inputParams : inCAESES_setting5 27.5514
inputParams : inCAESES_stagger1 20.6363
inputParams : inCAESES_stagger2 35.4184
inputParams : inCAESES_stagger3 40.3953
inputParams : inCAESES_stagger4 39.9846
inputParams : inCAESES_stagger5 39.2039
inputParams : inCAESES_radius2Factor 1.0
inputParams : inCAESES_radius2Factor 1.0
inputParams : inCAESES_posHub 0.05
inputParams : inCAESES_posShroud 0.05
inputParams : inCAESES_thetaInt1 0.0
inputParams : inCAESES_thetaInt2 0.0
inputParams : inCAESES_thetaInt3 0.0
inputParams : inCAESES_thetaShroud -20.0
inputParams : inCAESES_dist1 6.83
inputParams : inCAESES_dist2 6.83
inputParams : inCAESES_dist3 6.83
inputParams : inCAESES_NOB 3.0
CALLING get_system(task)
CALLING getProcessName(task)
getProcessName id_tg_task2 getProcessName
task.Name at getProcessName= id_tg_task2
Geom_comp_name at getProcessName= id_tg_task2
end of getProcessName(task)
os_ver: Win64
fscName=V2-Opti

baseline name=baseline
proj_type=cdbc


loading plugin libraries ...
plugbase - ok
plugblade - ok
plugcom - ok
plugdakota - ok
plugfeature - ok
pluggenericintegration - ok
plugkspline - ok
plugmeta - ok
plugnax - ok
plugopt - ok
plugoptmo - ok
plugsshrm - ok
plugxffl - ok
shfctrl - ok

initializing types ...
plugins - ok
basic object types - ok
entity types - ok

initializing commands ...
console cmds - ok

initializing configuration ...
*** INFO REPORTSERVER : started [port: 12345]
*** INFO Open project : V2-Opti [3.736 secs cputime | 3.7353 secs in worldtime]
true
|V2Opti|BladedComponent1|Fan|Functions|chord|chord1
|V2Opti|BladedComponent1|Fan|Functions|chord|chord2
|V2Opti|BladedComponent1|Fan|Functions|chord|chord3
|V2Opti|BladedComponent1|Fan|Functions|chord|chord4
|V2Opti|BladedComponent1|Fan|Functions|chord|chord5
|V2Opti|BladedComponent1|Fan|Functions|metal|metal1
|V2Opti|BladedComponent1|Fan|Functions|metal|metal2
|V2Opti|BladedComponent1|Fan|Functions|metal|metal3
|V2Opti|BladedComponent1|Fan|Functions|metal|metal4
|V2Opti|BladedComponent1|Fan|Functions|metal|metal5
|V2Opti|BladedComponent1|Fan|Functions|setting|setting1
|V2Opti|BladedComponent1|Fan|Functions|setting|setting2
|V2Opti|BladedComponent1|Fan|Functions|setting|setting3
|V2Opti|BladedComponent1|Fan|Functions|setting|setting4
|V2Opti|BladedComponent1|Fan|Functions|setting|setting5
|V2Opti|BladedComponent1|Fan|Functions|stagger|stagger1
|V2Opti|BladedComponent1|Fan|Functions|stagger|stagger2
|V2Opti|BladedComponent1|Fan|Functions|stagger|stagger3
|V2Opti|BladedComponent1|Fan|Functions|stagger|stagger4
|V2Opti|BladedComponent1|Fan|Functions|stagger|stagger5
|V2Opti|BladedComponent1|MeridionalContours|01_hubContour|radius2Factor
|V2Opti|BladedComponent1|MeridionalContours|02_shroudContour|radius2Factor
|V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|posHub
|V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|posShroud
|V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt1
|V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt2
|V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaInt3
|V2Opti|BladedComponent1|MeridionalContours|04_leadingEdge|thetaShroud
|V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist1
|V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist2
|V2Opti|BladedComponent1|MeridionalContours|05_trailingEdge|dist3
|V2Opti|NOB
*** INFO Exporting : V2-Opti/manual_results/baseline/input/export_Blade_1.tin
true

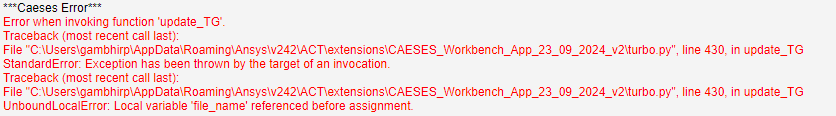

***Caeses Error***
Error when invoking function 'update_TG'.
Traceback (most recent call last):
File "C:\Users\gambhirp\AppData\Roaming\Ansys\v242\ACT\extensions\CAESES_Workbench_App_23_09_2024_v2\turbo.py", line 430, in update_TG
StandardError: Exception has been thrown by the target of an invocation.
Traceback (most recent call last):
File "C:\Users\gambhirp\AppData\Roaming\Ansys\v242\ACT\extensions\CAESES_Workbench_App_23_09_2024_v2\turbo.py", line 430, in update_TG
UnboundLocalError: Local variable 'file_name' referenced before assignment.


[Praveen 0]

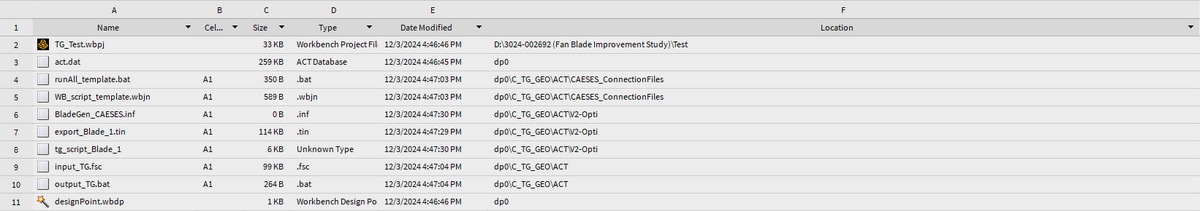

In ANSYS Workbench file, the following files were created after running the CAESES Turbogrid engine:

[Ceyhan Erdem 15]

Hi Praveen,

Can you please be sure that your fsc file is up to date and the project saved.

After this check, if you still face the same problem, can you please provide me your project file?

You can send the file to erdem@friendship-systems.com.

Cheers

Ceyhan

[orborneroberts 0]

thanks
