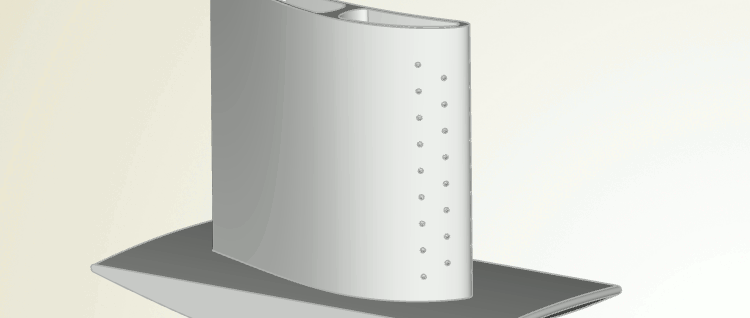

AbodJabali 0 Report post Posted December 9, 2023 hello everyone i write to you as a beginner in this software and as student in my last semester where i work on my graduation project i have seen that this software could be very helpful to me especially with the difficulty to get a blade geometry with a profile which involves cooling passages and pins and fins i'm working currently on designing a blade which has different setups of pins and fins and cooling passages and from the explanation i saw on the website it seems that this could save me time by the ability to change the number of holes of angles of cooling passages...etc i'm looking now for the shortest way to get such a blade profile where i could only import and work on like the picture attached to this topic, since i'm working on innovative mechanisms of heat transfer of turbine blades, im interested only in the part of the blade, the blade with root only because i'm going to apply different setup and meshes to obtain different results for my project could anyone help me how to start with this or does anyone have a pre defined blade model where i could use in my project all the rights will be reserved for the person who can help because i'm only looking for ready designs because i don't so much time to learn the design fully on this software to be an advanced user i hope i will hear an answer of you and that would be greatly appreciated Share this post Link to post Share on other sites
Mr. Heinrich von Zadow 9 Report post Posted December 13, 2023 Hi there, unfortunately the project you are referring to cannot be shared publicly. However, if you have a fixed blade geometry and want to investigate a variation of the cooling channels, a model can probably be set up quite easily. If you have something to work with, feel free to share it here and I'll take a look. Cheers, Heinrich Share this post Link to post Share on other sites
raymondbrown 0 Report post Posted December 22, 2023 Would you share this project? Share this post Link to post Share on other sites
Mr. Heinrich von Zadow 9 Report post Posted January 8 Hi Ramond, the project shown in the first post cannot be shared publicly, unfortunately. I am happy to provide some guidance and assistance if one of you wants to take on a similar task. Cheers, Heinrich Share this post Link to post Share on other sites
nolanjazmin 0 Report post Posted January 12 Can share project with me? Share this post Link to post Share on other sites
Mr. Heinrich von Zadow 9 Report post Posted January 12 Please see my two posts above... Share this post Link to post Share on other sites
chunxiao 0 Report post Posted January 25 On 1/12/2024 at 3:13 PM, Mr. Heinrich von Zadow said: Please see my two posts above... I am sorry that I did not see the two posts you mentioned Share this post Link to post Share on other sites
