Is is possible to deform a trimesh by following the deformation of a Bspline?

Recommended Posts

Hi,

I am a beginner of CAESES, and I have a problem to design a FFD that can deform the geometry by following the deformation of a B-spline curve. The B-spline is basically the same shape as the curvy part of the geometry, we can deform the B-spline by shifting the control points of the B-spline, so it would be nice that the geometry can deform in the same way as the B-spline curve. I wonder how to make the geometry to follow the same deformation?

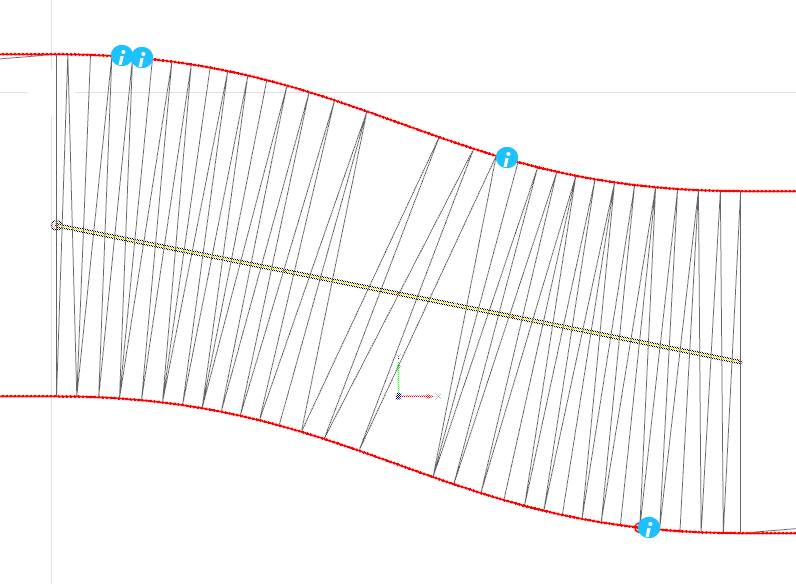

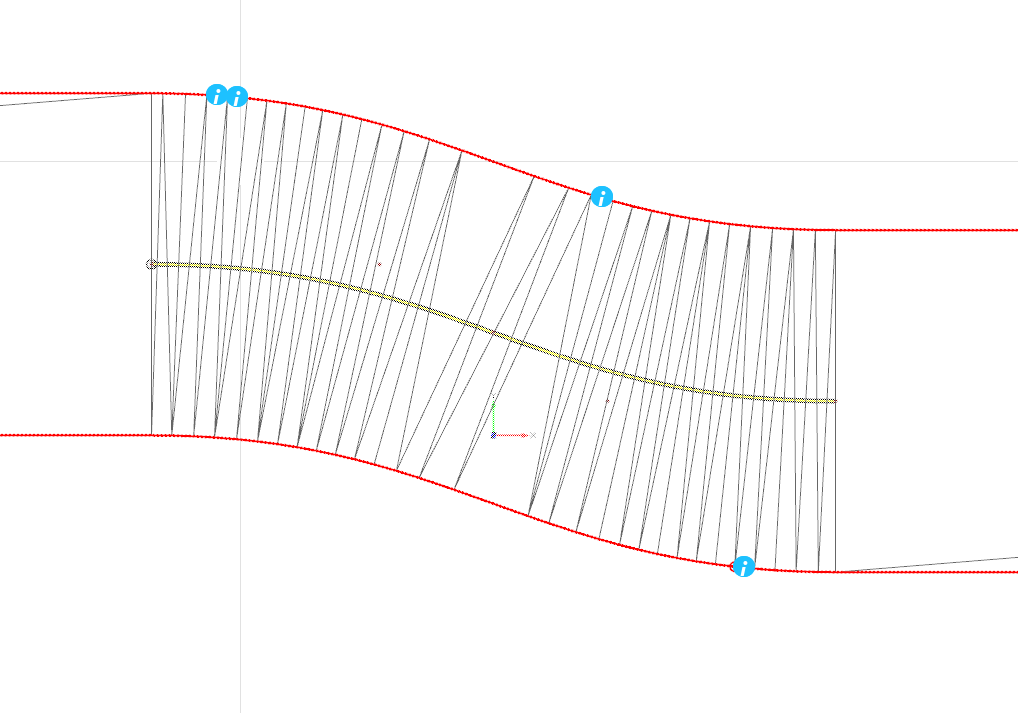

I have attached a figure with geometry and the B-spline before and after deformation,  an example of the fdb file would be highly appreciated, thanks for the help!



Share this post


Link to post
Share on other sites

Hi Zhen,

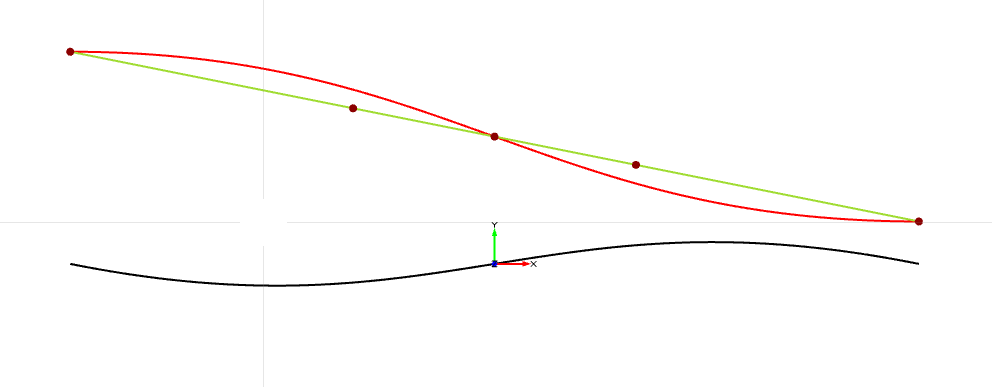

in this case, I recommend using a simple delta shift. I renamed your curves: source (red), target(green) and calculated the y-offset between the two: "difference (black)".

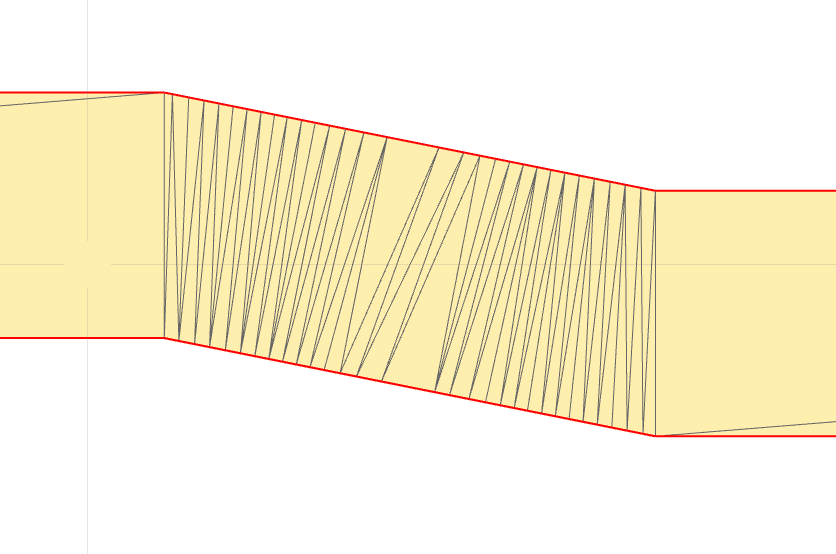

Now you can set up a delta shift to transform your source based on difference --> this will make it match exactly with target. Voila.


Best regards,

Heinrich

test_bspline_HvZ.fdb

Share this post


Link to post
Share on other sites

Hi Heinrich,

I have a further question, is it possible to let the upper curve and lower curve deform differently? For example, let the upper curve deform with B-spline 1, and the lower curve deform with B-spline 2, where B-spline 1 and 2 are controlled by different design variables.

Best,

Zhen

Share this post


Link to post
Share on other sites

Dear Zhen,

in principle, yes. You could set up a second delta shift perpendicular to the first one and combine the two in a delta product. It would be way easier if you could just set up a fully parametric model. Or is there a specific reason why you need to start from an existing/imported trimesh?

BR,
Heinrich
