Periodic Meshes

[Mr. Carsten Fuetterer 9]

Hi,

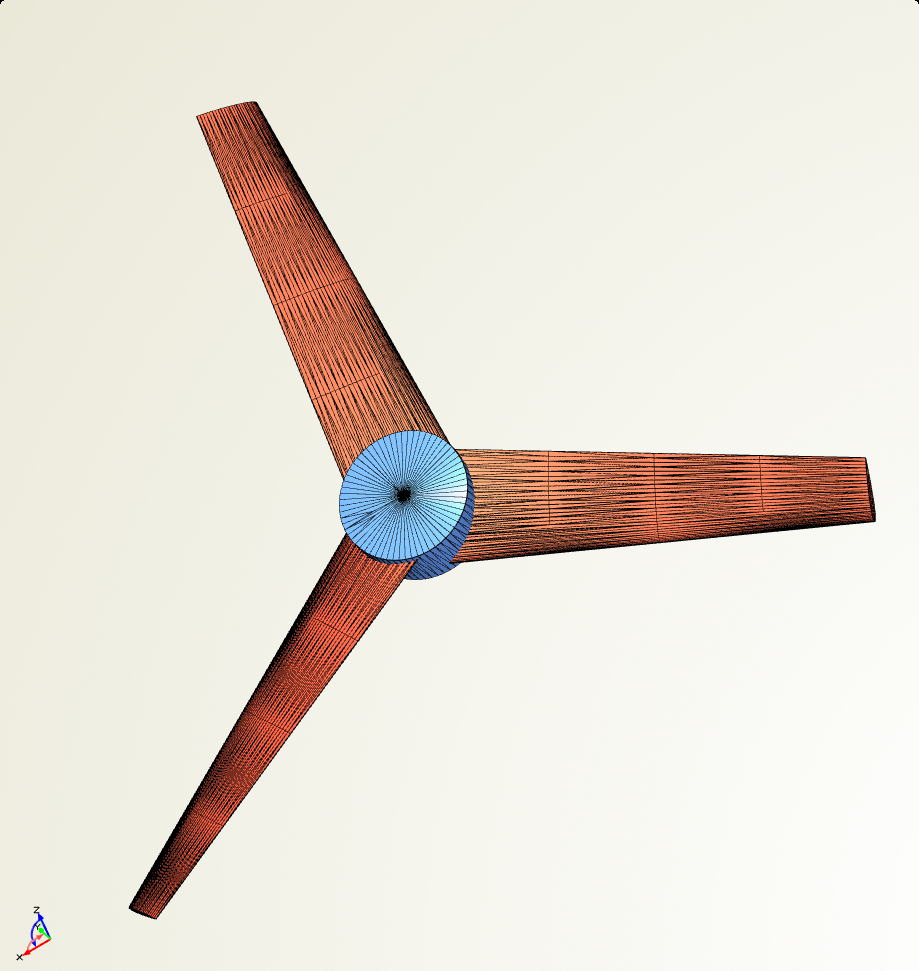

if you want to create a periodic mesh based on one shape, please find therefore the attached example . This feature is often used when propeller have to be exported to stl files for a viscous calculation.



The procedure is as follows:



1. create all need surfaces

2. for surface visualization put all surfaces into a ImageSurfaceGroup and use this as source of  the PeriodicImages feature. This feature can be found in the transformation tap.

3. create a TriMesh with all needed surfaces

4. Use this TriMesh as a source for the feature definition periodicmesh



best regards



Carsten



periodic.fdb
