Hello,

I try to find out with the user manual as well as with the tutorial how can I show more then one Wave under the Plotviewer (XPAN Wave Profil)? Did anybody know how it works?



At the attachment i put an example how i want to have it. Thx for helping.



Kind regards

Chris

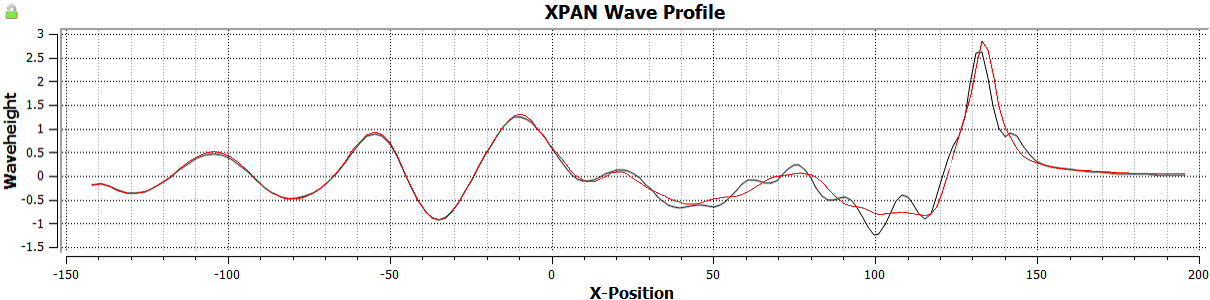

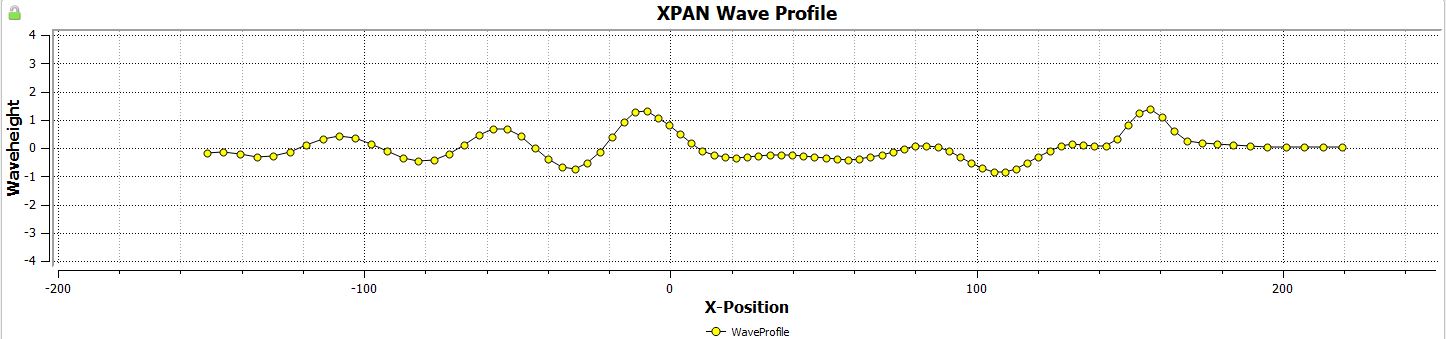

Attached Thumbnails

  • Wave.JPG
  • Wave2.png

  • 0

#2 Mr. Paulo Macedo

Mr. Paulo Macedo

    Newbie

  • Members
  • Pip
  • 5 posts

Posted 27 August 2018 - 09:03 AM

Hi Christian,



In order to compare two wave profiles from XPAN computation do the following:

1 - Select the first design that you want to show in the table of results, click on show results button (a computer symbol with an eye in the middle);

2 - Go to the plot viewer and lock the design by clicking on the lock symbol upper left corner of the plot;

3 - Go to the design you want to compare with, select and also show the results (should be already triggered);

4 - Go back to the plot viewer and your two results should be there;

5 - Edit the plot settings so that you can distinguish between the designs.



Here is an example of two compared wave profiles: https://imgur.com/1rRPQ5A

Note the red lock button in the upper left corner.


Let us know if this solved your doubt.



Cheers,
Paulo


  • 0

#3 Mr. Christian Christian

Mr. Christian Christian

    Newbie

  • Members
  • Pip
  • 6 posts

Posted 01 September 2018 - 10:42 PM

Hey Paulo,

thx for the explanation. Yes it works for two Wave Profils but if i want to compare more then two Waves?

How is it work then?



Kind Regards Chris


  • 0

#4 Mr. Paulo Macedo

Mr. Paulo Macedo__0001

    Newbie

  • Members
  • Pip
  • 2 posts
  • LocationÅlesund, Norway

Posted 05 September 2018 - 10:59 AM

Chris,


I am afraid it might not be possible.

It might be necessary to write a feature that plots them all together based on multiple shipflow results.
Maybe someone else knows another way for it.



Cheers,
Paulo
