Airplane wing with winglet

[Matthias Maasch 21]

Hi,

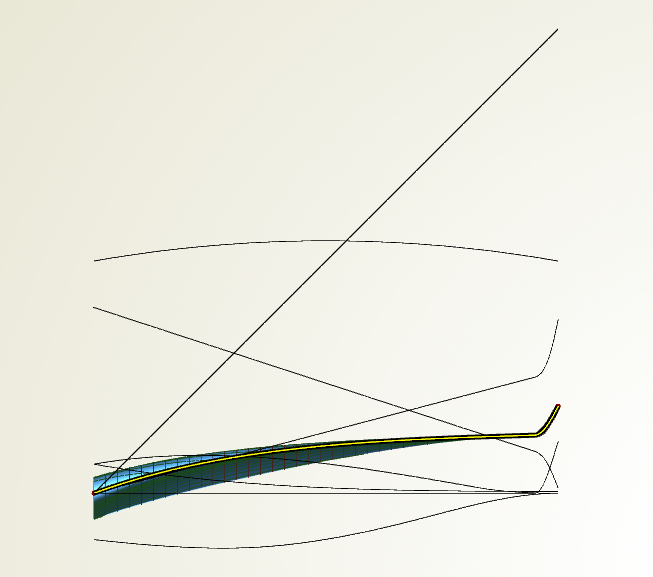

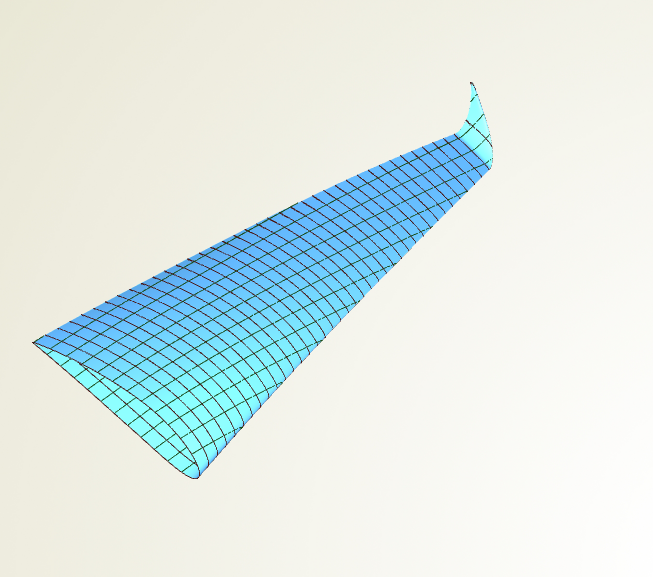

please find attached an airplane wing. The wing is created with a flexible metasurface. At the tip of the wing you can find a winglet.

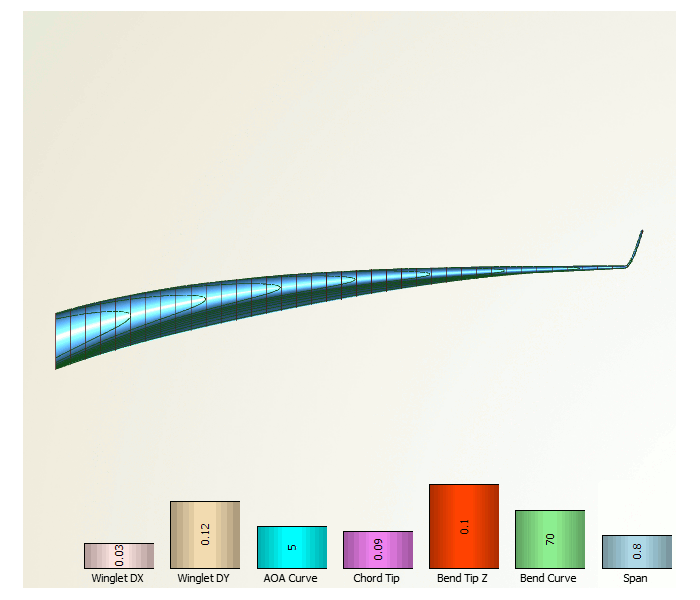

In the gif-file below I visualized a parameter selection.

The scope "01Base" includes the initial profil setup which is inside the feature definition. In the scope "04Parameters" you can find the usual paramaters for

• chord length
• span
• sweep
• thickness
• camber ...

Furthermore you can find some parameters to control the winglet. You can change all the functions to your needs. So you can create a lot of wing and winglet types.

Cheers



Matthias

wing.fdb
