Variable

[Rull 0]

Hi everyone!

Can someone guide me how to make variable for optimization please. I have done import parasolid and after that i'm getting stuck to start the project. Thank you. Have a nice day.

Cheers Rull

[Ceyhan Erdem 15]

Hi Rull,

Can you please clarify what you mean by "getting stuck to start the project"?

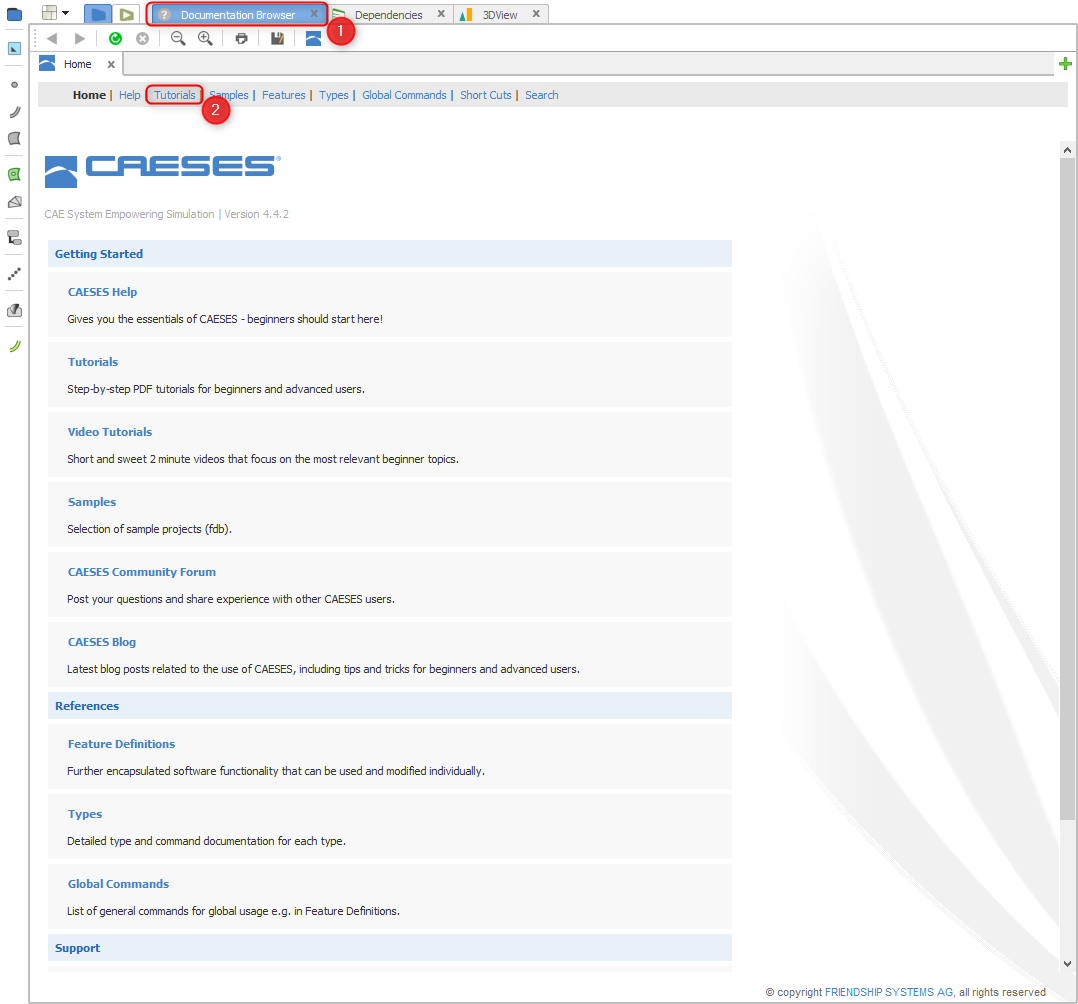

Assuming this is the first time you are using CAESES, I would like to encourage you to perform the tutorials first.

Cheers

Ceyhan

[Rull 0]

Hi Ceyhan,

Thank you for replying. I will explain about my problem. I have import model in x.t file like the picture. Then, I try to make variable for optimization but on the tree object just mention transom only. I had watched the youtube about the tutorial how to make variable but I can't perform with this model. I hope you can guide me to handle this problem. Thank you and have a nice day.

Cheers

Rull

[Ceyhan Erdem 15]

Hi Rull,

"_Transom" seems to be the geometry that you have imported.

Can you please let me know what kind of optimization you would like to perform?

For a shape optimization you have to have a parametrically defined geometry. Either you create the whole geometry using parameters (fully parametric) or you can use your existing non-parametric geometry using free form deformation (partial parametric).

I will insist you to perform the tutorials first.

Cheers

Ceyhan

[Rull 0]

Hi Ceyhan,

I would like to perform optimization of the hull ship but got a problem on the geometry. May I know what do you mean by creating the whole geometry using parameters (fully parametric), can you explain more about this ? Then, I have done perform the tutorial about the free form deformation but I have problem on the path. It cannot detect the CAT_sym. I hope you can guide me to handle this problem. Thank you and have a nice day.

Cheers

Rull

CAT_Sym01.X_T
