Create several Curve

[Create several Curve]

Hi Ceyhan,



I appreciate your help. I completed it based on your idea.





thanks



best regards

MooSung

[Create several Curve]

Hi

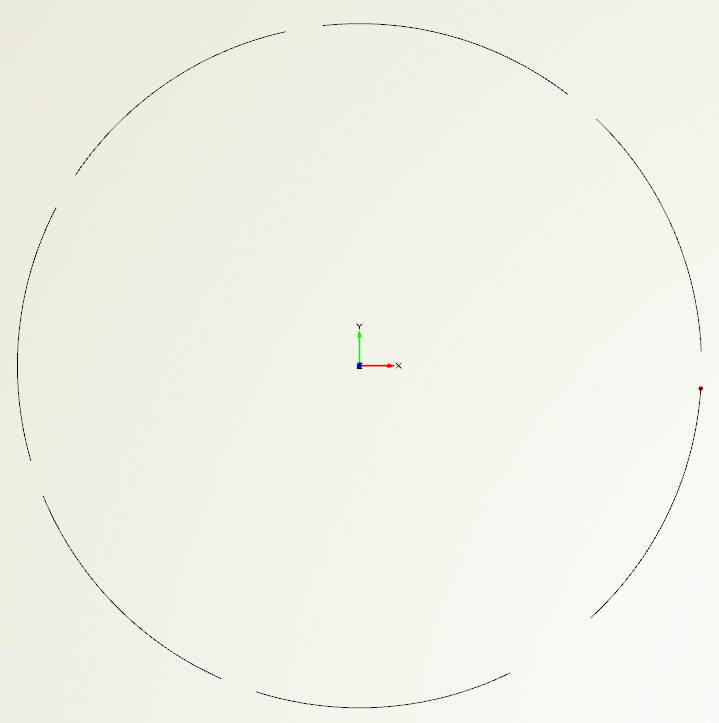

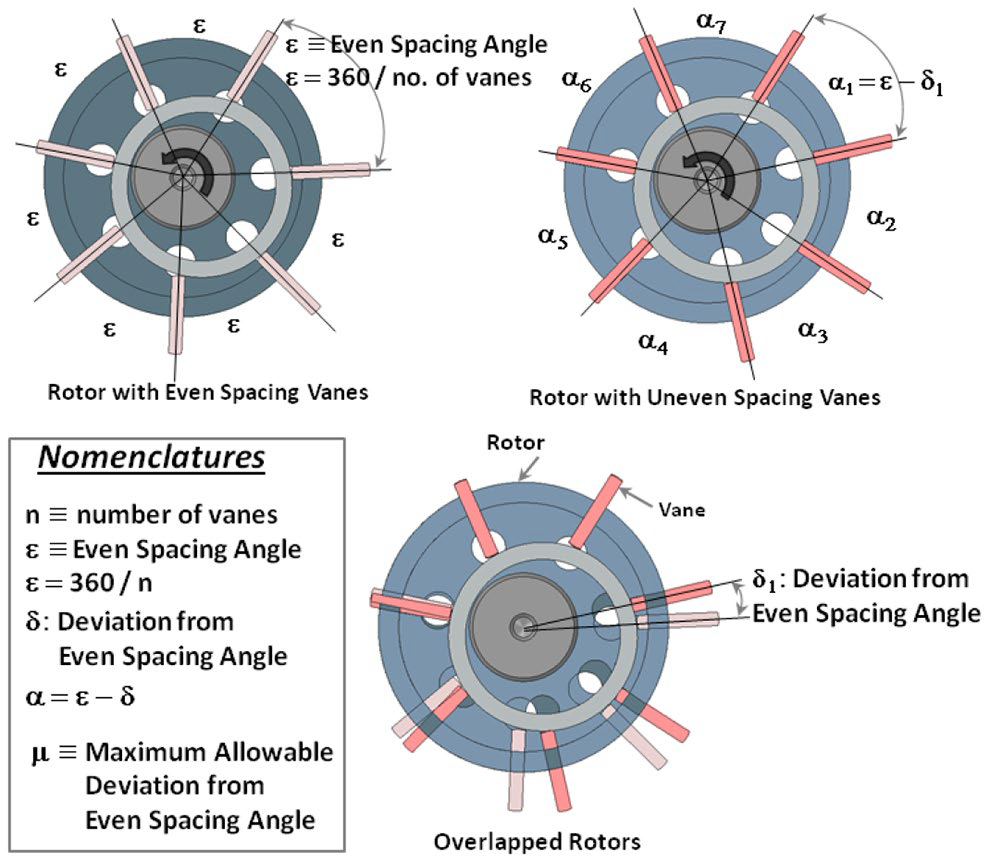

i want to Create several Curve using FD. and the curve is used to create vane(like image).



I made one by one, but I can not find a way to turn it at once with a loop.

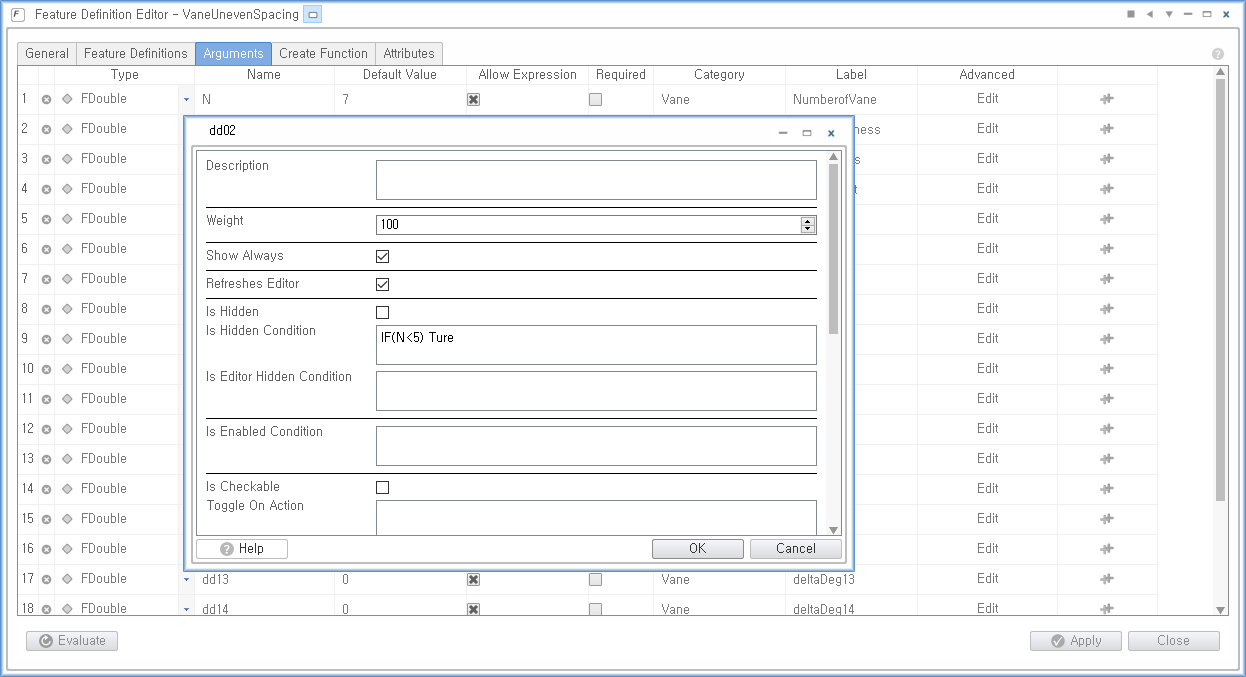

and i want to use "Is Hidden Condition" in Advanced in Arguments tap in FD Editor. but I do not know how to use it.(Image33)



If you have any ideas, can you tell me?





thanks



best regards

MooSung

vane_uneven_spacing.fdbc

[Run DAKOTA in Linux]

Hi Heinrich,



thanks for your help.



First, my problem is running Optimization with DAKOTA in Linux. and i confirmed working in Windows(and No problem when using other optimization algorithms(like sobol, TSearch, ...)



Second, Previously when I checked, I could not find anything wrong with my script. I'll check it again.



thanks



best regards

MooSung

[Run DAKOTA in Linux]

Hi Heinrich



the latest Version of CAESES on my PC is 4.4.1



I took this and installed it.("CAESES_4.4.1_Linux.x86_64.tar")





thanks



best regards

MooSung

[Run DAKOTA in Linux]

Hi joerg



thanks, i wonder if this is happening only on my PC.





thanks



best regards

MooSung

[Run DAKOTA in Linux]

Hi Heinrich



Thanks for reply. i don`t know if i understand well. but...When i run it with other optimization algorithms in Linux, it worked fine without problems.



and when i tried to optimize it with DAKOTA, there was a problem.



thanks



best regards

MooSung

[Run DAKOTA in Linux]

Hi



i have confirmed that it works well on winodws



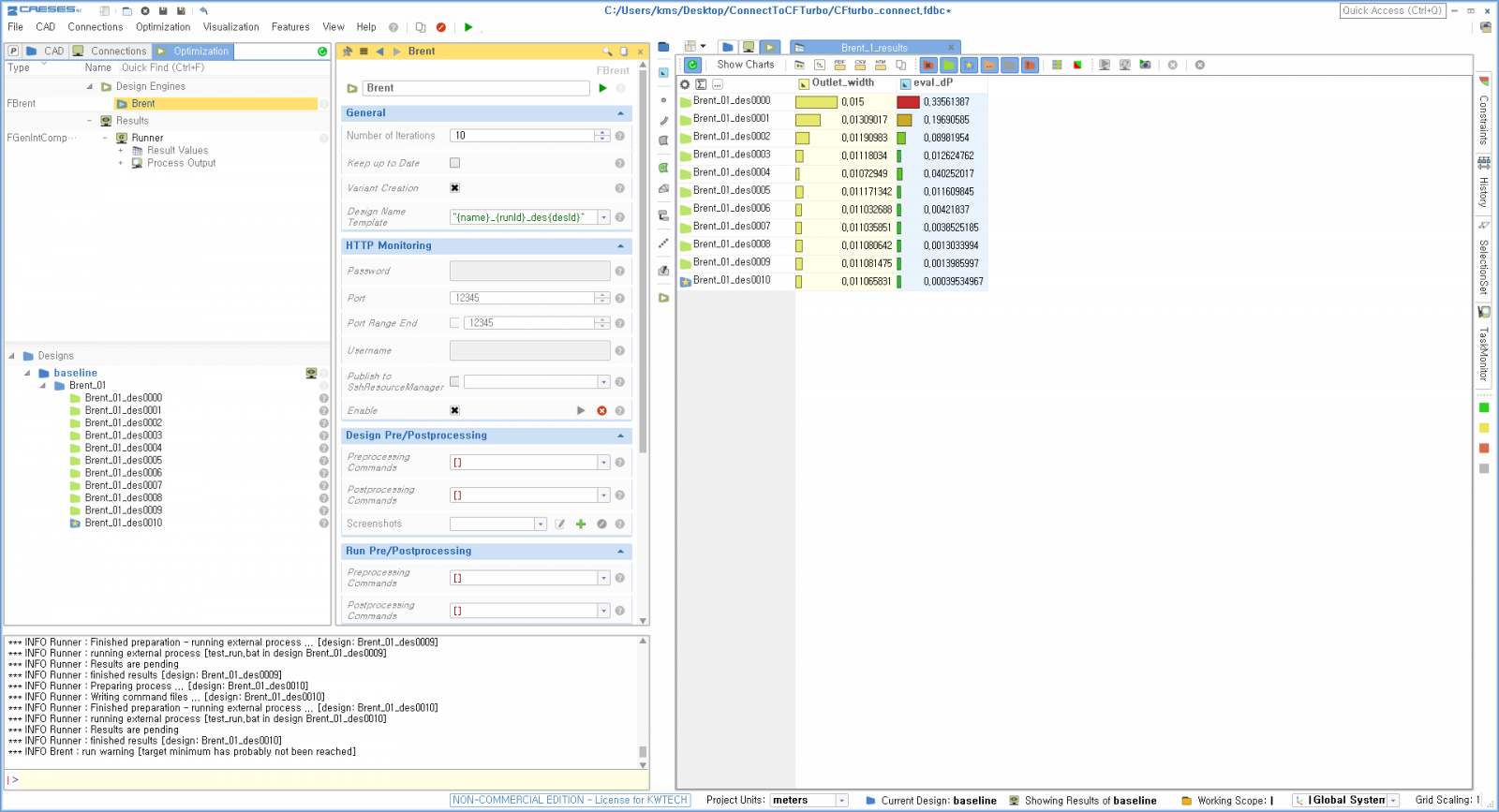

and i ran "run.sh"(attached file) on linux(centOS6) but... it did not work.(image1,2)



what can i do more...?





thanks



best regards

MooSung

batch_test_WithDAKOTA.zip

[optimization with batch mode]

Hi Heinrich



Thank you for your help. now i can run.





thanks



best regards

MooSung

[optimization with batch mode]

hi



it`s simple question. but i can`t found previous topic ..





for example, I want to run 3 optimization with batch mode. how to i do...?



which script i add in fsc file?





thanks



best regards

MooSung

batch_test.zip

[RSM With Sobol or Without Sobol]

Hi,



Thanks, i will wait for the feedback.











Thanks







Best Regards



Moo Sung

[RSM With Sobol or Without Sobol]

Hi



I get a Question when i was testing Optimization Algorithm(RSM in DAKOTA).



The Opti is finding minimum Z value on a certain BsplineSurface.



And I Knew RSM is Basically creates a response surface based an initial result pool. Then for each iteration it creates a response surface. On this it will find the minimum and runs the CFD for this new minimum. Then this design is included into the new response surface and a new iteration will start.





But...With Sobol or Without Sobol, Designs created by DAKOTA(RSM) is same.



In attached png file. First is the thing No Select Result pool, Second is Selecting Sobol_01(30 Designs), Last one is Selecting Sobol_17(200 Designs). Same Designs is created. All....





So, my Question is that Why does not consider initial result pool when rsm run.







Thanks



Best Regards

Moo Sung

opt_Dakota_Test.fdbc

[ANSYS app with TurboGrid]

Hi Ceyhan,



What i did is Connecting TurboGrid in Workbench.



In Workbench, CAESES ACT app is used to couple CAESES and ANSYS.



So, I imported FSC File(I attached in 1st poster) in Workbench. and updated CAESES ACT app.



But it can`t work.



Maybe i think It can`t just use CAESES ACT app with FSC file.





thanks.



best regards



Moo Sung

[Variant Creation]

Hi Ceyhan,



I understand what you do.



but...



It`s same the result what before we run with "Design Pre/Post Processing".







thanks.



best regards



Moo Sung

[Reading and Parsing an XML File]

Hi Ceyhan,





Thank You!!!



I learned a lot.







Best regards



Moo Sung

[ANSYS app with TurboGrid]

Hi~



i want using script for running with ANSYS app.



in TurboGrid, i can import curve file using the "Feature Definitions” in CAESES.



but i can`t update fsc file in ANSYS Workbench



What can i do...?





I put below contents in fsc

|Blade.run()

|Hub.run()

|Shroud.run()



thanks



best regards

Moo Sung

Axialfan_TG.zip

[Reading and Parsing an XML File]

Hi~



I run into a few problems...



one thing is importing xml format file.



I tried to apply what others had made to solve reading txt file.



but i can`t solve





just I want read one line in X, and next line is Y



ex)

xml file is

<Value Type="Vector2" Index="0">

<x Type="Float">0.547408021449596</x>

<y Type="Float">1.77333179937449</y>

</Value>



and I want to create Point ( 0.547408021449596, 1.77333179937449, 0)





other thing is separating line



in xml file, 0~200 line is Curve1, and 201~400 line is Curve2...



I create Curve1 that 0~400line is





Can I get some help with this?







thanks



best regards



Moo Sung

CFturbo_connect_readxml.zip

[Variant Creation]

Hi~



Thanks~!



we can below days



5/30, 6/1, 6/4, 6/5, 6/7, 6/8 ...



and maybe your time 9:00AM is 4:00 PM for our. so in your time, 9:00AM~10:AM  we can



It is better for us as soon as possible.





thanks



Best regards

Moo Sung

[Variant Creation]

Hi~~



I understand what you say

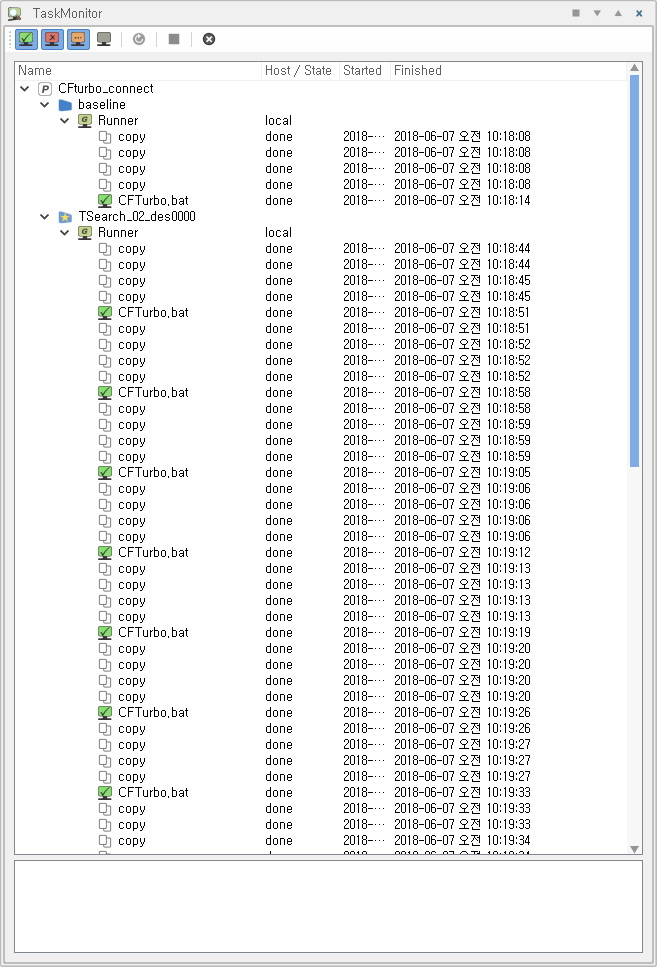

first, Running CFTurbo maybe takes 2~5 Seconds(1 Design)



I waited 1 day...but it`s not finish





Second, i understood using TSearch instead of Brent.  is this right?

(I tried TSearch turned off "Variant Creation"..but It`s same...to Brent)



thanks



Best regards

Moo Sung

[Variant Creation]

Hi~!



Thanks

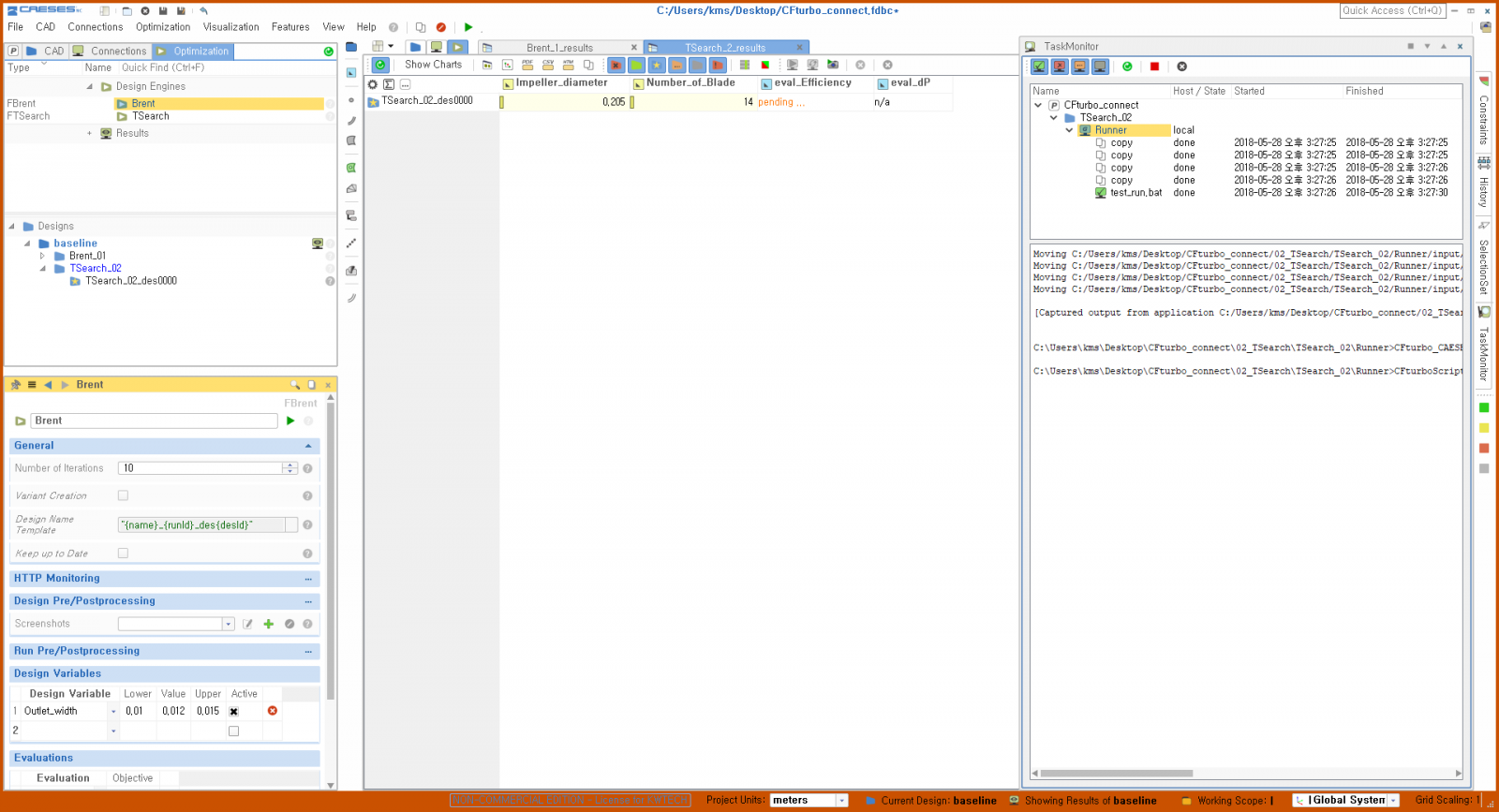

but... my problem is  that "Variant Creation" button is toggled off.



I knew that turn off before starting Sobol/TSearch( I saw the tutorial)



I attached png file that while i off the "Variant Creation", start TSearch



when you see the image, maybe you will know what`s the problem...(not start next design)







thanks



Best regards



Moo Sung

[Variant Creation]

hi



I have infinite loop that i do UnCheck Variant Creation in Optimization.



Because of using Variant Creation function, i want Optimization that one objective function must be zero(nearly zero)  other is minimized.



I found similar problem that is tutorial (05_Fulfilling_Geometry_Constraints).



that tutorial is work, but when objective function is thing through other software, is not working. and infinite Optimization do...



how do i fix..?

CFturbo_connect.fdbc

[Adjoint CFD]

Thanks.



I appreciate your help. It really helped me to understand.

[Adjoint CFD]

hi



thanks.  i understand. i know Simerics is not...



i have one more question.



Principle of Adjoint is calculating sensitivities in each cell, and the sensitivity shows the direction and size in a surface. and is parametric sensitivities and surface sensitivities different?



thanks

[Adjoint CFD]

hi



i`m studying Caeses.



i saw the Blog for Adjoint CFD. and i followed. i`m using Simerics for CFD and Ensight.



so i run Simerics and read result for Ensight format... and then i don`t know what is next...



how to work optimization with sensitivity...?



sensitivity is included in Design variant? and how..?



it doesn`t matter which Optimization algorism?





thanks

Adjoint_test.fdbc
