  2. Posted · Report reply

    Hi,

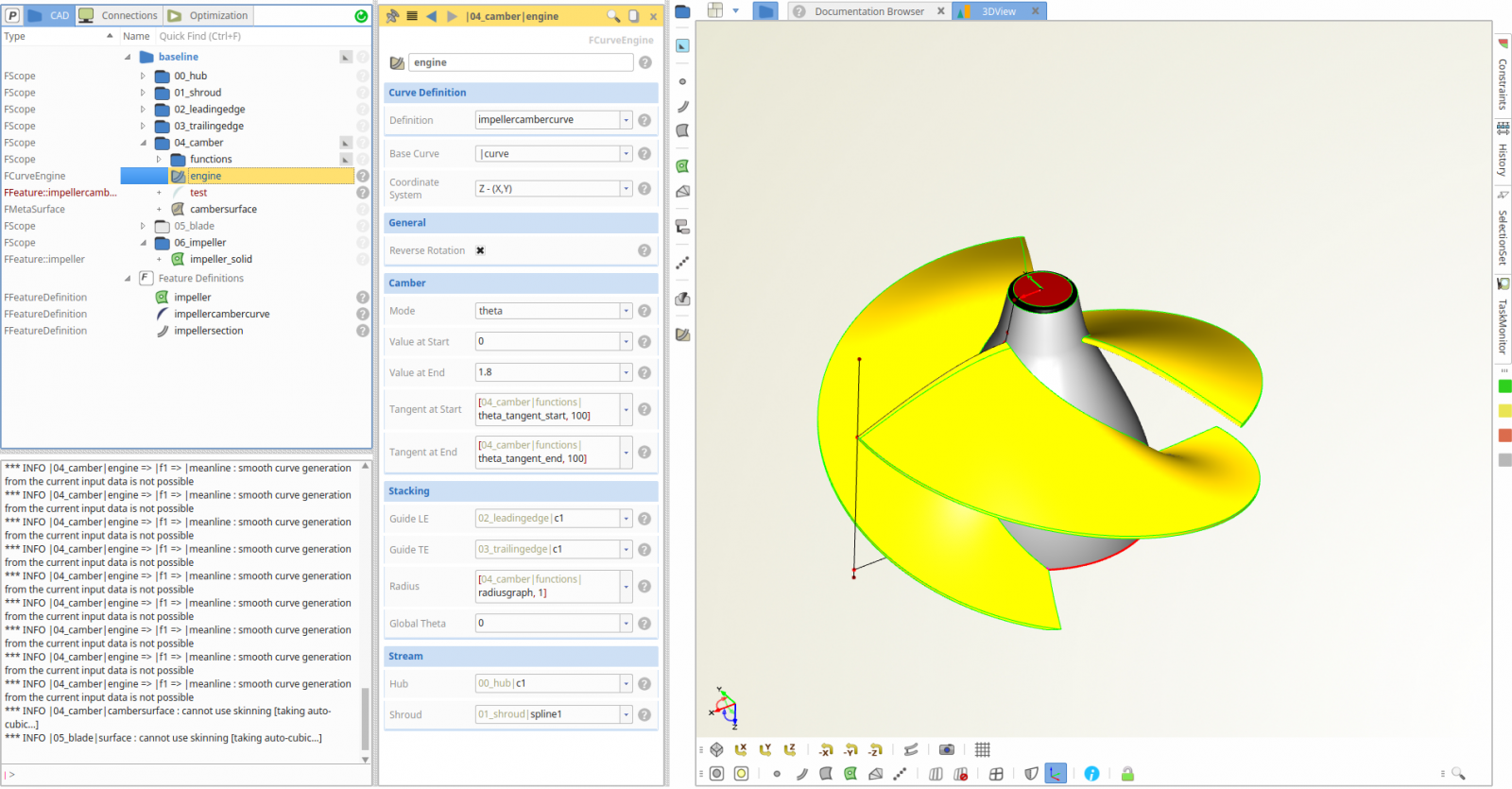

    I've been modeling a jet ski impeller based on this tutorial https://www.caeses.com/blog/2015/video-blade-design-tutorial/ and I already got something like its shown in Picture 1.

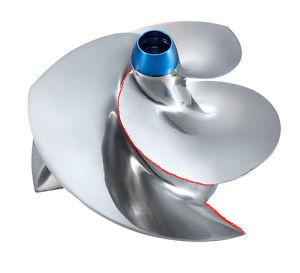

    Nevertheless, on the last step, I came across the following problem. In the original impeller (Picture 2), the value for Theta varies along the Leading edge from 0 to a certain angle (e.g 45º), as the theta value along the Trailing edge remains constant, generating a straight line (marked in red Picture 2). I attempted to achieve the same result expressing the value of general Theta through a fspline which varies from 0º to 45º throughout the x-axis. However, I got something as I already expected, which is shown in Picture 3, where the theta value varies from 0º to 45º throughout the x-axis but along the whole surface.



    What options do I have in order to apply this change to the Leading Edge but keeping the theta value for the Trailing Edge constant creating a straight line, achieving a impeller like shown in Picture 2 ??



    Thanks in advance

    Best regards.








  3. Posted · Report reply

    Hi,



    I ran into the following questions when I was post-processing the results obtained in the Propeller with OpenFOAM tutorial and I wanted to analyze the resulting mesh quality. As you can see on the pictures I just attached (Picture 1 and 2), I am aware there are several ways to visualize the mesh in CAESES. However :



    1) does CAESES include any feature which allows you to "turn the mesh inside out" or "flip the mesh" obtaining a view as shown in Picture 3 in Paraview, showing only the part of the mesh corresponding to the propeller surfaces ?

    2) there are any options (as in the "clickable" table on the left-hand side in Picture 3, Paraview) that let you visualize the different paths or surfaces that are defined? that is, I can only see that CAESES shows you the "internalMesh" but doesn't give you any other options to visualize paths or boundaries.



    Thank you in advance.

    Best regards.




  5. Posted · Report reply

    Hi everyone,



    I know there are already some topics related to CAESES + openFOAM, but none of them could solve my problem.



    I'm following the tutorial "Propeller with OpenFOAM" and I just got the same error every time I try to run the simulation from CAESES.



    It seems to me as if the software is storing the Allrun executable in the wrong folder so that it cannot find the "o,constant,system" folders because they have not the same path.



    I got the same error in all log files.



    Create time

    --> FOAM FATAL IO ERROR:
    cannot find file

    file: /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/system/controlDict at line 0.

        From function regIOobject::readStream()
        in file db/regIOobject/regIOobjectRead.C at line 73.

    FOAM exiting







    stdouterroroutput :





    Moving /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/0.org to /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//0.org
    Input move failure, using fallback method to move /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/0.org to /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//0.org
    Failed: Cannot open /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/0.org for input
    Moving /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/Allrun to /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//Allrun
    Moving /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/Allrun.pre to /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//Allrun.pre
    Moving /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/constant to /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//constant
    Input move failure, using fallback method to move /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/constant to /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//constant
    Failed: Cannot open /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/constant for input
    Moving /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/system to /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//system
    Input move failure, using fallback method to move /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/system to /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//system
    Failed: Cannot open /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner/input/system for input

    [Captured output from application /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//Allrun]

    /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner//Allrun: line 6: wmUNSET: command not found
    cp: cannot create regular file ‘constant/triSurface/’: No such file or directory
    Running blockMesh on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner
    Running surfaceFeatureExtract on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner
    Running snappyHexMesh on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner
    Running renumberMesh on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner
    Running topoSet on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner
    Running createPatch on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner
    cp: cannot stat ‘0.org’: No such file or directory
    Running decomposePar on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner
    sed: can't read system/controlDict: No such file or directory
    Running 4 in parallel on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner using  processes
    Running reconstructPar on /home/alvaro1553/Desktop/CASES/81_OpenFOAM_Propeller/manual_results/baseline/Runner










×
×
