questions on exporting fully parametric model to rhino

[questions on exporting fully parametric model to rhino]

Thanks for all your help, my questions have been solved. :)

cheers,

lexi.

[questions on exporting fully parametric model to rhino]

Ok, cool.



What is the problem with the IGES file? Usually we have no problems with exporting models to RHINO using the IGES format.



I guess the other things are really something where one have to look into it.



I have send Ceyhan the file just now. Thanks for your help!

Cheers,

Lexi.

[questions on exporting fully parametric model to rhino]

Hi Lexi,



Is it possible that you share the project file if it is not confidential?

You can send the fdb/fdbc file to erdem@friendship-systems.com, so I can give a look.



Cheers

Ceyhan

Hi



I have send you the file.



cheers,

Lexi.

[questions on exporting fully parametric model to rhino]

1 I have a fully parametric model, i wanna export igs.file with surfaces to RHINO

2 There is no problem for transporting stl.file to use in starccm

3  I think that is always there

i will send the team erdem for a check .

Thank you for your help!

[questions on exporting fully parametric model to rhino]

 Hi,



I am now trying to export a fully parametric model to rhino.



But i have got lots of NURBS surfaces . ( Since we are doing some comparison work for T-spline in rhino and NURBS in caeses )



1.How can I directly export the surfaces from caeses to rhino?



2.when I export the local parametric bulb from caeses with stl.file to rhino that is fine.



Is this about the fully parametric model ?

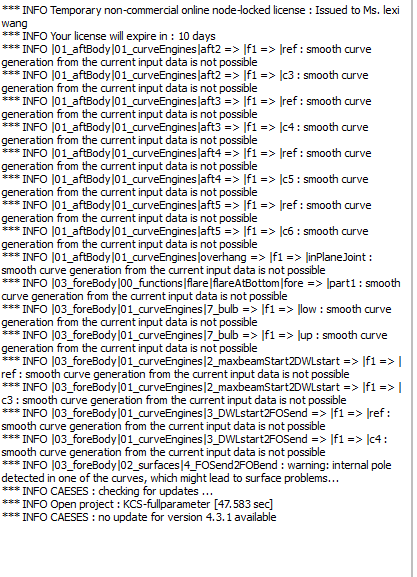

3.Recently when I open the files i have got some tips on the model like in figure. question ,



How can I repair them?

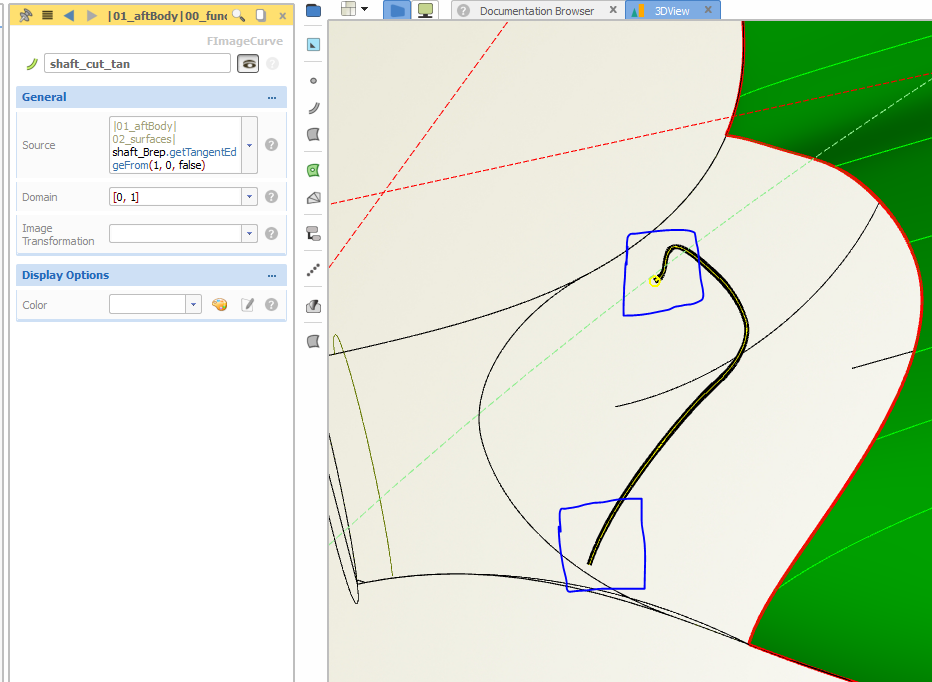

4.When I am trying  to get the shaft_cut_tan in the figure.question2. I cannot make the



start and end point for Y=0, that is why i cannot close the shaft totally. How can I repair this



problem?





Thanks for your help!



Lexi.

[CAESES connected with GLRankine]



Dear Yanxin,

It looks like you want to create a /data subdirectory in the runDir. That is obviously not done. Was there probably a batch file in the connector that had to be called prior to executing Rankine?

Best regards

Claus

Hi Claus,





 when i connect FFW with STARCCM+, I have tips in redirect file as below. i wonder what is the problem with my license , for it works in my computer for STARCCM+.



Cheers,



Lexi.



STAR-CCM+ 11.02.010 (win64/intel15.0-r8)

License build date: 10 February 2015

This version of the code requires license version 2016.02 or greater.

Checking license file: 1999@name-server02

Unable to list features for license file 1999@name-server02.

Checking license file: 1999@flex.cd-adapco.com

Failed to get all licenses needed for this job. Asked for 1 licenses of ccmpsuite

"C:\Program Files\CD-adapco\STAR-CCM+11.02.010-R8\star\lib\win64\intel15.0-r8\lib\star-ccm+.exe" -cpubind

MPI Application rank 0 exited before MPI_Finalize() with status 8

"C:\Program Files\CD-adapco\STAR-CCM+11.02.010-R8\mpi\platform\9.1.4.0\windows\bin\mpirun.exe" -aff=automatic:bandwidth -np 1 "C:\Program Files\CD-adapco\STAR-CCM+11.02.010-R8\star\bin\starccm+.exe" -cpubind -node

error: Design STAR-CCM+ simulation completed

Server process ended unexpectedly (return code 1)

mpirun: Drive is not a network mapped - using local drive.

MPI Application rank 0 exited before MPI_Finalize() with status 8









Mattiash helps me figure it out, it works now.

Cheers

lexi.

[CAESES connected with GLRankine]

Dear Yanxin,

It looks like you want to create a /data subdirectory in the runDir. That is obviously not done. Was there probably a batch file in the connector that had to be called prior to executing Rankine?

Best regards

Claus

Hi Claus,





 when i connect FFW with STARCCM+, I have tips in redirect file as below. i wonder what is the problem with my license , for it works in my computer for STARCCM+.



Cheers,



Lexi.



STAR-CCM+ 11.02.010 (win64/intel15.0-r8)

License build date: 10 February 2015

This version of the code requires license version 2016.02 or greater.

Checking license file: 1999@name-server02

Unable to list features for license file 1999@name-server02.

Checking license file: 1999@flex.cd-adapco.com

Failed to get all licenses needed for this job. Asked for 1 licenses of ccmpsuite

"C:\Program Files\CD-adapco\STAR-CCM+11.02.010-R8\star\lib\win64\intel15.0-r8\lib\star-ccm+.exe" -cpubind

MPI Application rank 0 exited before MPI_Finalize() with status 8

"C:\Program Files\CD-adapco\STAR-CCM+11.02.010-R8\mpi\platform\9.1.4.0\windows\bin\mpirun.exe" -aff=automatic:bandwidth -np 1 "C:\Program Files\CD-adapco\STAR-CCM+11.02.010-R8\star\bin\starccm+.exe" -cpubind -node

error: Design STAR-CCM+ simulation completed

Server process ended unexpectedly (return code 1)

mpirun: Drive is not a network mapped - using local drive.

MPI Application rank 0 exited before MPI_Finalize() with status 8







[CAESES connected with GLRankine]

hey guys,



when i connect with STAR CCM+, I came across the problem with tips when do sybol optimization: *** INFO FGenIntReader : Could not open file

C:/Users/xdb14181/Desktop/FPM CAESES/Int/KCS_OPT1/01_Sobol/Sobol_01_des0005/Runner//Data.csv for reading [parsing process aborted].



could you please tell me what might be the problem with this?



cheers



Lexi

[how to fix the trimesh when there is an alarm mark?]

Hi Lexi,



I don't know to which picture you are referning in the document.



You can also trim surfaces with the help of subsurfaces or Breps using Projections.



best regards



Carsten

Thanks, i have got the patch divide.

Cheers,

Lexi.

[how to fix the trimesh when there is an alarm mark?]

Hi Lexi,



I don't know to which picture you are referning in the document.



You can also trim surfaces with the help of subsurfaces or Breps using Projections.



best regards



Carsten

Thanks, i am really sorry, it is page 13/46.

Cheers

Leix.

[how to fix the trimesh when there is an alarm mark?]

Hi Lexi,



If I understand you correctly, I can split a patch surface with an imagesurface. Just restrict the u- or v- domain.



best regards



Carsten

My picture failed to be uploaded , please see the link of PPT.

https://www.google.co.uk/url?sa=t&rct=j&q=&esrc=s&source=web&cd=3&cad=rja&uact=8&ved=0ahUKEwiW1-Pbuo_TAhWk5YMKHYCQAMcQFggxMAI&url=http%3A%2F%2Fmdx2.plm.automation.siemens.com%2Fsites%2Fdefault%2Ffiles%2FPresentation%2FFRIENDSHIP-Framework_STARCCM%252B.pdf&usg=AFQjCNG0Mu_NpVp0Gi-qOwSWdauHwRxi-g&sig2=zNPAJ9hwZFb1Y_34sc46cQ

Cheers,

Lexi.

[how to fix the trimesh when there is an alarm mark?]

Hi Lexi,



If I understand you correctly, I can split a patch surface with an imagesurface. Just restrict the u- or v- domain.



best regards



Carsten



can you see the picture p1 and p2?

if i use image surface, the surface boarder is parallel to the original surface. i want to have edges like picture.1 .

Cheers,

Lexi.

[how to fix the trimesh when there is an alarm mark?]

Hi Yanxin,



ok it seems that the point [97.4,0,5.4] is at the bulb. You can try to increase the tesselation.



best regards



Carsten

HI Carsten,



i have the same problem of the alarm mark. i have a tutorial about this work to do patch divided for KCS ship stern valley, may i  ask how  to do patch divide?



Cheers,



Lexi.
