Hi Ceyhan,
Thank you for looking into this.
Regarding this scale, I feel kinda stupid. I had forgotten that problem already and the quick and dirty solution I used.
Regarding the second problem. I think I did not explain so clearly. It is not CL_midsurface.ft(0,20) I want to use. I need the t value for for a certain x position. This x position is the intersection of the top of the skeg with the FOB. Which should be at 22.5364. If I do CL_midsurface.ft(0,22.5364) I get a t of 0.0614. If I use this t-value in de srf_mid_trimmed domain, there is an overlap with the skeg. If I then determine the x of this srf_mid_trimmed, it is not at 22.5364 but at 22.4529. This x value on the CL_midsurface corresponds to a 0.05938 and not the previously determined and manually given as domain boundardy of 0.0614.
I have made an extra scope called "secondproblem" in which the info concerned is grouped.
grtz, Steven
*EDIT*
renamed the srf_mid_trimmed surface in my post, to avoid confusion and attached the proper hull3.fdbc
-
Hello,
I have a few (beginners) problems. I have been making the tutorial of the fast monohull vessel. And in the process adding some of my own modifications. However I have a strange situation, though it does not cause a real problem.

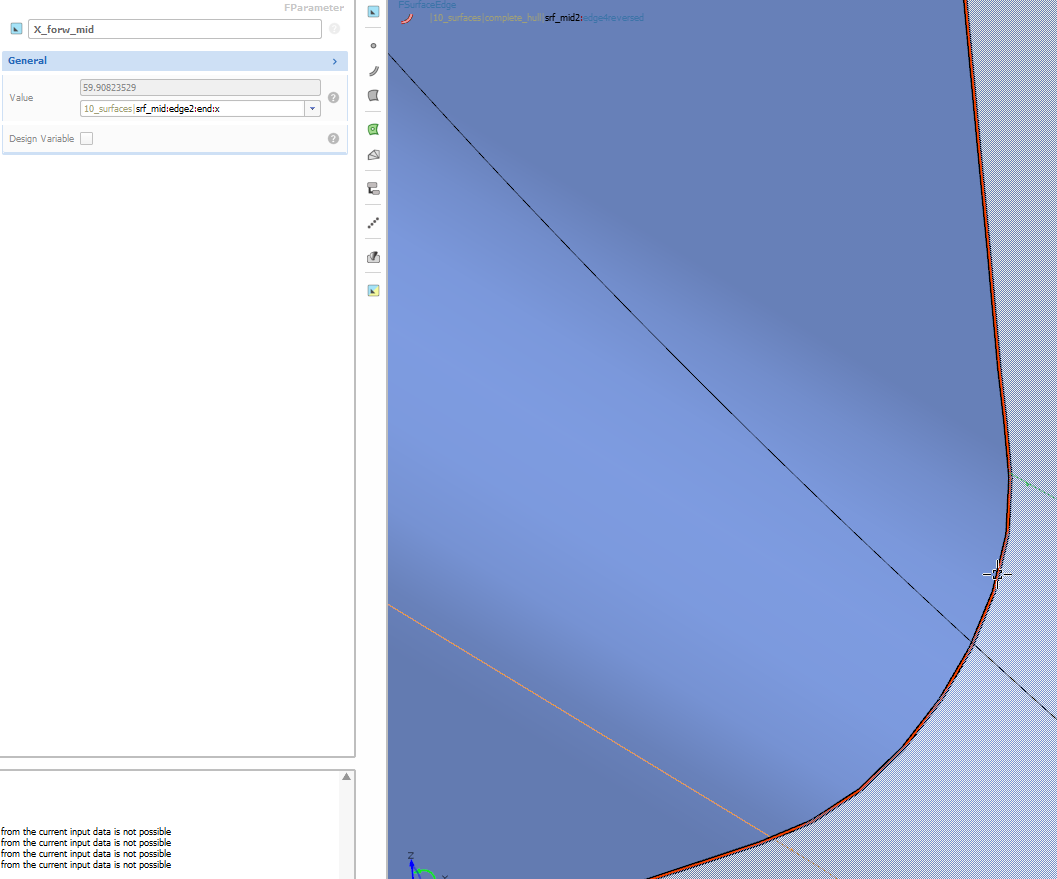

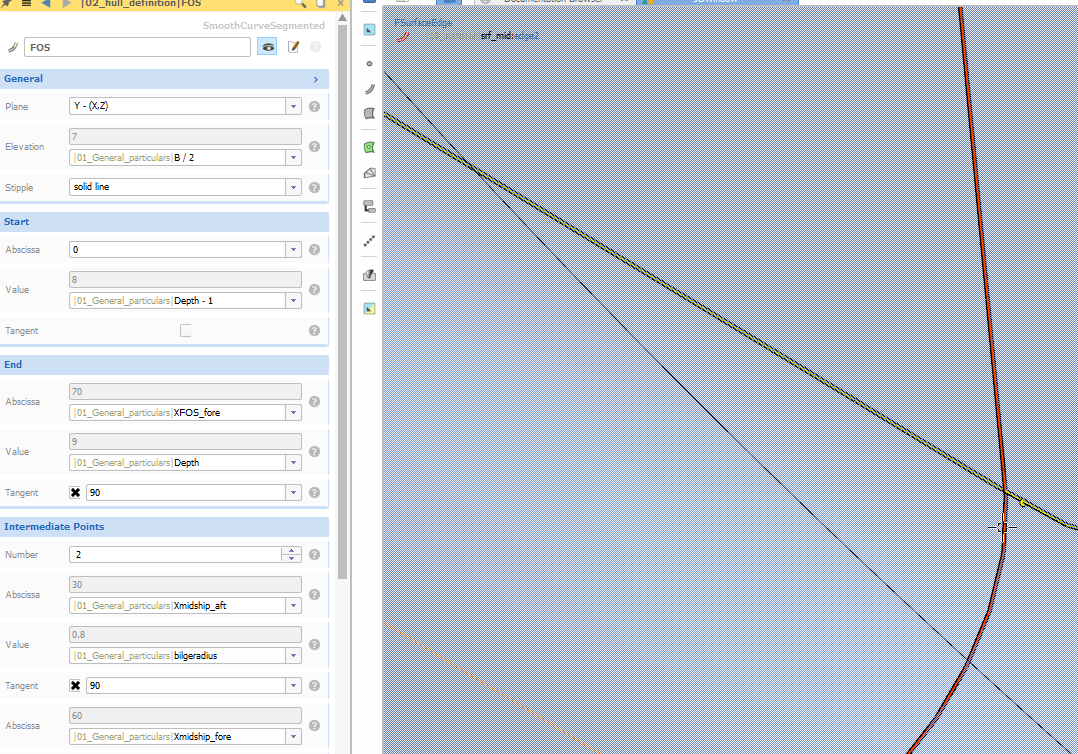

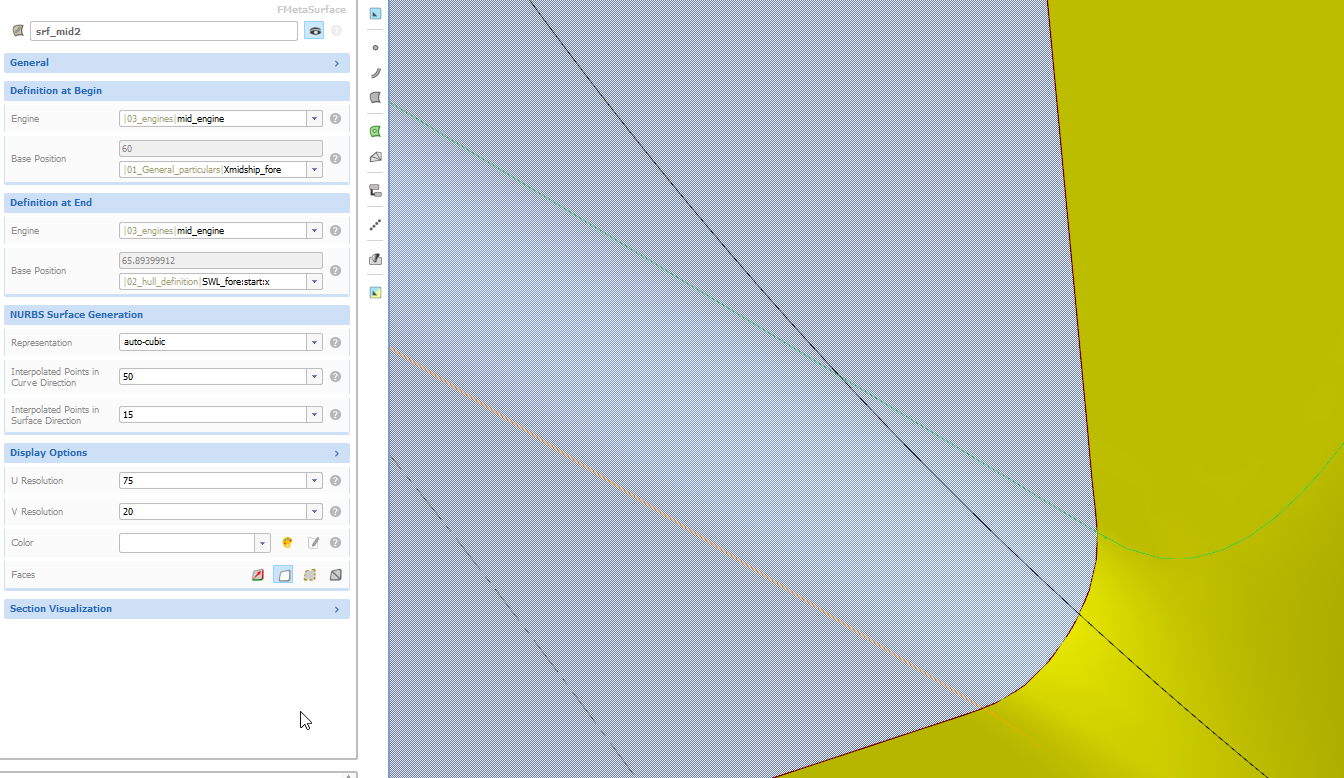

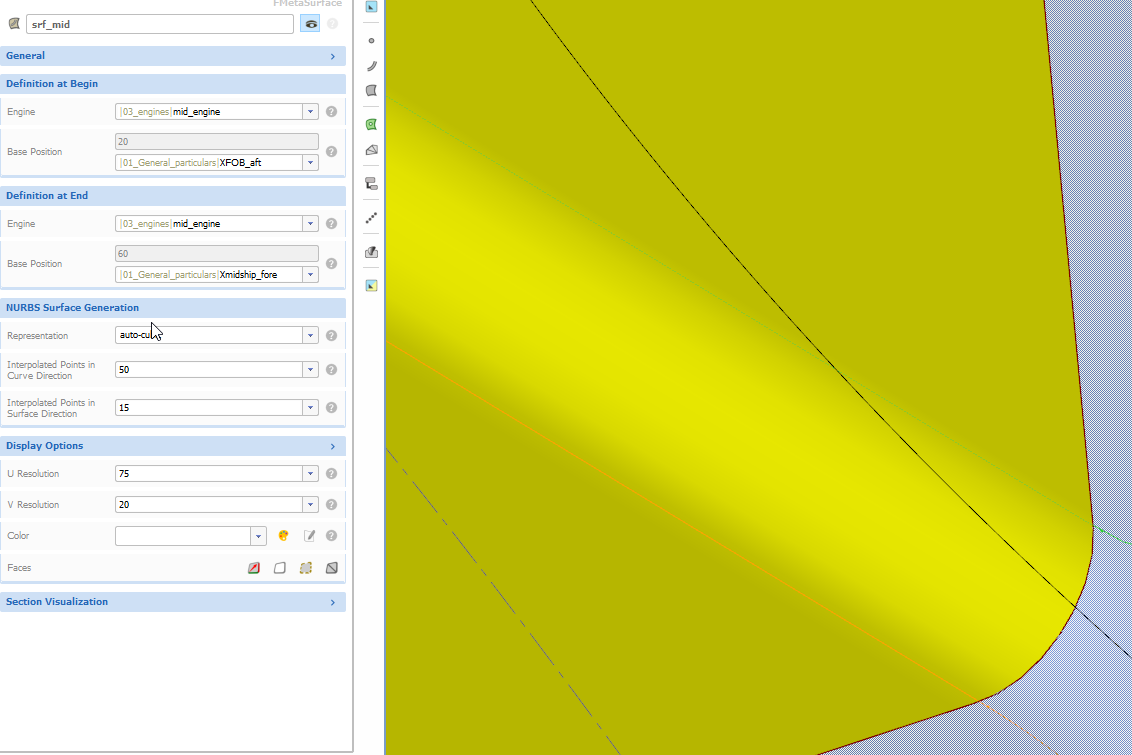

I have defined the FOS, with forward intermediate point at x=60. When I create a metasurface, that extends from somewhere aft, to this x=60, Caeses actually creates it up to 59.908. Is this the way it should be? (the attached screenshots describe this problem)
Another thing, but this does cause a problem is that I am not able to extract a t value as start of the domain for creating an imagesurface (called srf_mid_trimmed). I created an image curve called CL_midsurface, which is the original length of the midsurface. And I try to get a t value using CL_midsurface.ft(0,x position of the start of the domain). But this does not give me the correct start of the imagesurface.
I hope someone can help me with this.
beginners problems
in General Modeling
Posted · Report reply
Found it! The forward boundary was not in the intended X position, messing up my t value in the aft.
Sorry for the bother.
