Hello all,

I'm currently working to connect the FINEMARINE software with the CAESES software to optimize a sample hull model. I don't know where to start  and all. I have went through your Q&A session regarding the same field.

Kindly give some instructions on

1.Geometry input:

Whether it should be meshed and given or else only domain subtracted with hull model would be used

How the domain should be imported .,i.e, in what format

Which one to be used eiether Hexpressx86_64.exe or finemareinex86_64.exe in Local Application for computation?

2.Input File:

Input.txt as cwizard.input

What would be the possible input and logics

Any other files to be included

3. Result values :

output.txt

Thanking you in advance, hoping your suggestions would help me to complete my college project

[Hannes 2]

Hi Manoj,

usually, you start with a working setup that is capable to be run from the command line. This is entirely FM-specific and outside of CAESES.

In the current version of CAESES we provide a tutorial on the geometry preparation for FM, based on the Maritime Workflow introduced in CAESES 5.3. Assuming you've got the latest version of CAESES installed, you can find it here: http://localhost:65038/tutorials/maritime/software-connection/fine-marine-pre-processing . This geometry should be exported either as parasolid or as multibody stl.

At this point the above-mentioned workflow comes in. Please identify all relevant input files and provide them from the software connector. Define case-specific values by parameters. Put the command you used to run the setup from the command line into "ExecutionSettings|Arguments" (possibly preceded by "bin/bash"). Run the case for one geometry from the software connector and define all relevant result files within the software connector for further post-processing.

Hope this helps!

Cheers,

Hannes

[Manoj 0]

Thank you for your help. @Hannes

I can't able to open and  see the link you(HANNES) gave in the above post. Will u help by sharing in any other way.

[Hedi Boettcher 7]

Hi Manoj,

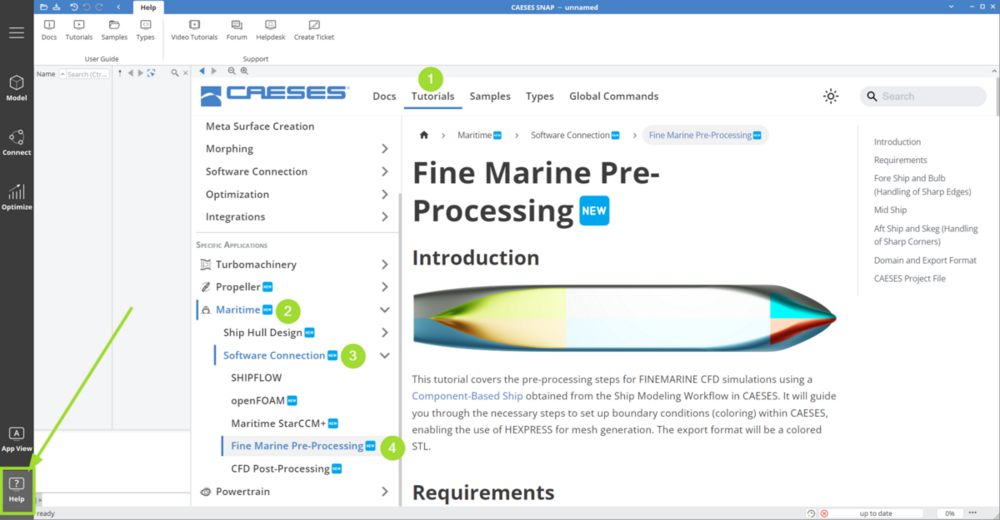

You can access the CAESES documentation in the Help section in the software CAESES.

In the documentation you will find the "Fine Marine Pre-Processing" tutorial under Tutorials > Maritime > Software Connection > Fine Marine Pre-Processing.



Cheers,

Hedi

[Manoj 0]

Thank you for your help, @Hedi Boettcher.

Sad thing is I wasn't able to download is the above tutorial project 😞.But I have manged to create domain and did boolean and successfully generated .stl file.

For now I'm stuck at this part as I don't know how to import (whether to run using scripts or by batch mode with  usage of [.iec],[.sim],[.bat],[.dat],.[run]) and get output feeds from the Finemarine software.
